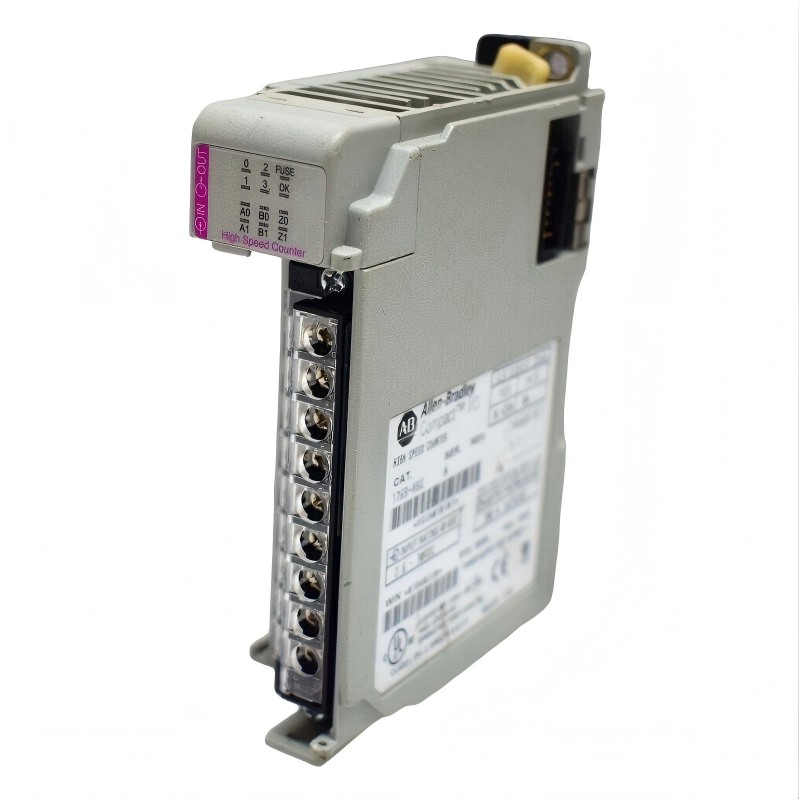

Allen Bradley 1769-HSC CompactLogix High-Speed Counter Module

Applications

The Allen Bradley 1769-HSC High-Speed Counter Module is designed to provide precise counting and pulse processing for high-speed automation tasks. Typical applications include:

• Monitoring high-speed machine cycles in industrial automation systems
• Tracking pulses from rotary encoders, proximity sensors, or flow meters
• Counting events or products in manufacturing and packaging lines
• Real-time process control where rapid and accurate pulse measurement is essential

This module is ideal for systems requiring accurate, high-speed counting and advanced pulse processing.

Advantages

• High-Speed Performance: Processes pulses at high rates for precise counting
• Compact Form Factor: 118 × 35 × 87 mm, designed for space-efficient control panels
• Easy Integration: Plug-and-play with CompactLogix I/O systems
• Reliable Operation: Industrial-grade construction for continuous operation
• Flexible Counting Options: Supports multiple modes including quadrature, direction, and event counting

Technical FAQs

1. What is the primary function of the 1769-HSC module?
   To count high-speed pulses and provide real-time data to the CompactLogix system.
2. What type of signals can it process?
   It supports TTL, contact closure, and differential quadrature signals.
3. Can it handle quadrature encoder inputs?
   Yes, designed for quadrature and directional counting.
4. What is the maximum count rate?
   It can handle thousands of pulses per second, depending on the configuration and system load.
5. Is it compatible with all CompactLogix controllers?
   Yes, it integrates seamlessly with compatible CompactLogix controllers.
6. Can multiple modules be used in one system?
   Yes, multiple 1769-HSC modules can be installed for expanded counting applications.
7. Does it support event capture?
   Yes, it can capture events in real-time for precise measurement.
8. Is configuration required?
   Yes, configuration is done via Studio 5000 Logix Designer software.
9. Can it operate in harsh industrial environments?
   Yes, built to withstand vibration, temperature variations, and continuous operation.
10. Is maintenance required?
    Minimal; ensure connections are secure and inspect for physical damage periodically.
