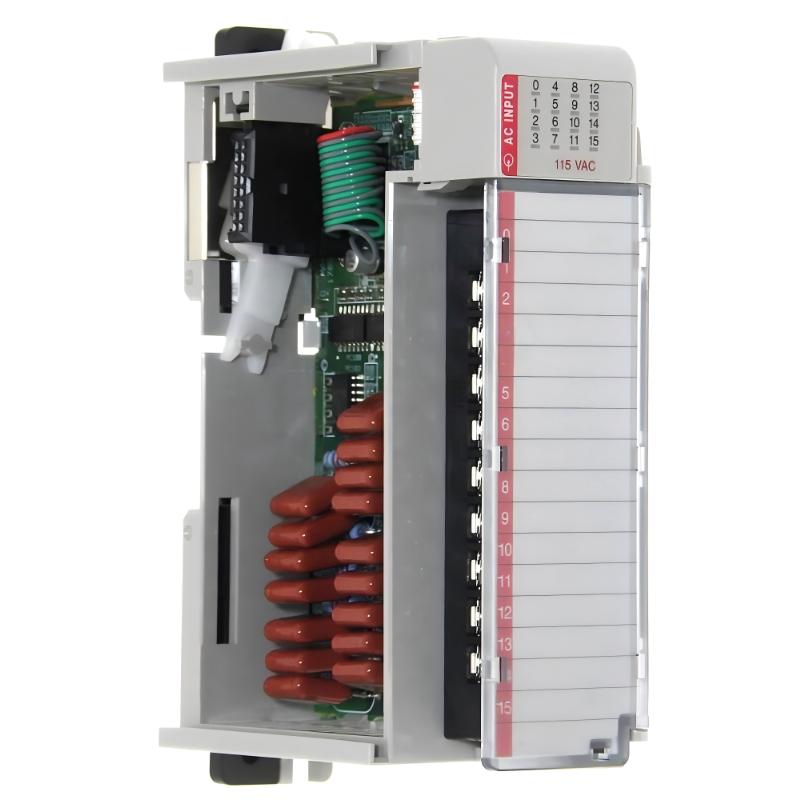

Allen Bradley 1769-IA16 CompactLogix AC Digital Input Module
Allen Bradley 1769-IA16 CompactLogix AC Digital Input Module
0.0
Points
Brand:Allen Bradley PLC Item No.:1769-IA16 Product Origin:USA Product Dimensions:118 x 35 x 87 mm Product Weight:0.28 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 1769-IA16 CompactLogix AC Digital Input Module provides reliable AC signal detection for industrial automation systems. Its compact size, robust design, and diagnostic capabilities make it a key component for real-time process monitoring and control.
Technical Specifications
Feature
Specification
Model Number
1769-IA16
Module Type
AC Digital Input Module
Dimensions
118 × 35 × 87 mm
Weight
0.28 kg (0.62 lb)
Input Channels
16
Input Voltage
24–120 VAC
Compatibility
CompactLogix I/O systems
Mounting
DIN rail or backplane mount
Indicators
LED status indicators for each input
Environment
Industrial, 24/7 operation
Protection
Isolated inputs for electrical safety
Applications
The Allen Bradley 1769-IA16 AC Digital Input Module is designed for reliable detection and processing of AC voltage signals in industrial automation systems. Typical applications include:
Monitoring switches, relays, and other AC signal devices in automated processes
Interfacing AC sensors and control devices with CompactLogix controllers
Industrial process control requiring precise digital input acquisition
Factory automation and manufacturing systems where safe and accurate signal detection is critical
This module ensures accurate AC signal detection while providing seamless integration into CompactLogix I/O systems.
Advantages
Reliable AC Signal Detection: Accurately senses AC inputs for real-time process control
Compact Design: 118 × 35 × 87 mm, space-efficient for control panels
Plug-and-Play Integration: Simple installation with CompactLogix I/O systems
Industrial-Grade Durability: Built for continuous operation in harsh environments
Diagnostics Support: Onboard LEDs provide immediate visual feedback on input status
Technical FAQs
What is the primary function of the 1769-IA16 module?
To detect and process 16 channels of AC digital input signals for CompactLogix controllers.
What voltage range does it support?
Typically 24–120 VAC, depending on system configuration.
How many input channels does it have?
16 AC digital input channels.
Does it support LED status indicators?
Yes, each input channel has an LED for real-time diagnostics.
Can it operate in industrial environments?
Yes, it is designed for vibration, temperature variations, and continuous operation.
Is installation complicated?
No, it snaps directly into the CompactLogix backplane for easy installation.
Can it be used alongside other CompactLogix modules?
Yes, it integrates seamlessly with other CompactLogix I/O modules.
Does it provide electrical isolation?
Yes, input channels are isolated to protect the controller and ensure signal integrity.
What is the typical response time?
Fast enough for standard industrial AC signal detection and monitoring applications.
Is maintenance required?
Minimal; ensure proper connections and inspect LEDs periodically for functionality.
