Introduction

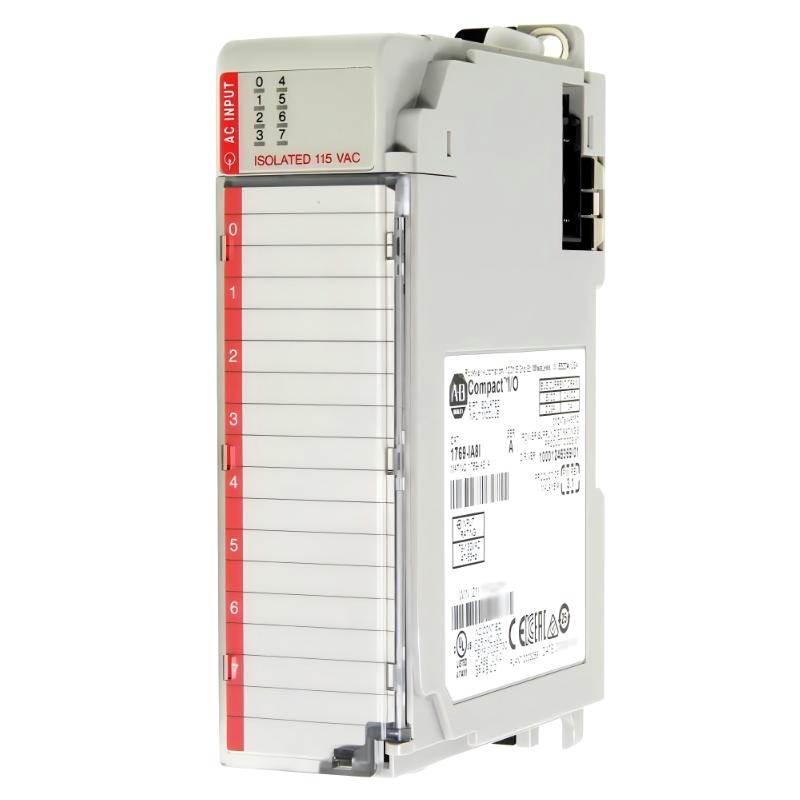

The Allen Bradley 1769-IA8I CompactLogix Isolation Input Module delivers safe and reliable digital input acquisition with electrical isolation. Its compact size, robust design, and diagnostic capabilities make it essential for high-reliability automation systems where signal integrity and controller protection are critical.

Technical Specifications

Feature	Specification
Model Number	1769-IA8I
Module Type	Isolation Digital Input Module
Dimensions	118 × 35 × 87 mm
Weight	0.27 kg (0.60 lb)
Input Channels	8 isolated digital inputs
Input Voltage Range	24–120 VDC
Compatibility	CompactLogix I/O systems
Mounting	DIN rail or backplane mount
Indicators	LED status indicators for each input
Environment	Industrial, 24/7 operation
Protection	Electrical isolation, surge protection

Applications

The Allen Bradley 1769-IA8I Isolation Input Module is engineered to safely interface field signals with CompactLogix controllers while providing electrical isolation. Typical applications include:

Protecting controllers from voltage spikes and ground loops in industrial automation systems
Monitoring discrete field devices such as sensors, switches, and relays
Ensuring signal integrity in environments with high electrical noise
Factory and process automation systems requiring reliable isolation for safety and accuracy

This module ensures safe and reliable digital input monitoring without compromising system performance.

Advantages

Electrical Isolation: Protects the CompactLogix system from transients, surges, and ground loops
Compact Form Factor: 118 × 35 × 87 mm, space-efficient design for control panels
Reliable Operation: Industrial-grade durability for continuous 24/7 operation
Easy Integration: Plug-and-play installation within CompactLogix I/O systems
Diagnostic Support: Onboard LEDs indicate input status for quick troubleshooting

Technical FAQs

What is the main function of the 1769-IA8I module?
To provide isolated digital inputs for safe and reliable signal monitoring in CompactLogix systems.
How many input channels does it support?
8 discrete isolated input channels.
Does it provide LED indicators?
Yes, each input channel has a dedicated LED for status monitoring.
Can it handle high-voltage spikes?
Yes, isolation protects the controller from transient voltages and ground loops.
Is it compatible with all CompactLogix controllers?
Yes, designed for seamless integration with CompactLogix I/O systems.
Does it require complex wiring?
No, standard plug-and-play connections allow straightforward installation.
Can it operate in noisy industrial environments?
Yes, isolation ensures reliable operation even in high-EMI/RFI environments.
Is maintenance required?
Minimal; periodic inspection of connections and LED indicators is recommended.
Can multiple modules be installed together?
Yes, multiple 1769-IA8I modules can be integrated into one CompactLogix I/O system.
Is it suitable for continuous industrial use?
Yes, it is designed for 24/7 operation under industrial conditions.
