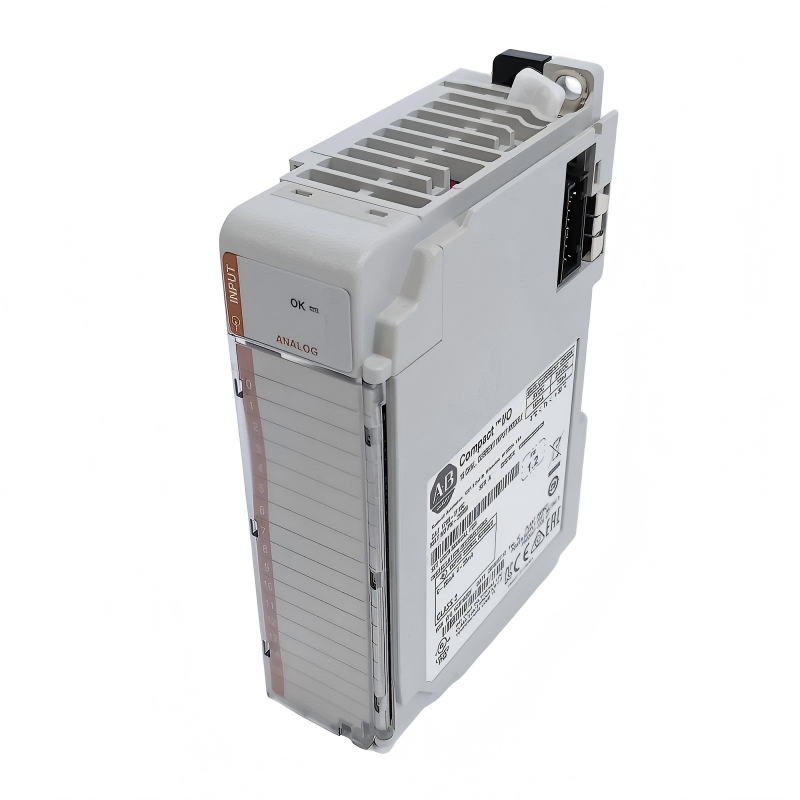

Allen Bradley 1769-IF16C CompactLogix Compact High-Density Analog Current Input Module

Applications

The Allen Bradley 1769-IF16C High-Density Analog Current Input Module is designed for precise acquisition of analog current signals in industrial control systems. Typical applications include:

• Reading 4–20 mA current signals from sensors and transmitters in process automation
• Integrating analog instrumentation into CompactLogix I/O systems
• Monitoring process variables such as temperature, pressure, flow, and level
• Industrial environments requiring accurate, high-density analog data acquisition

This module ensures reliable analog signal conversion for advanced process control and monitoring.

Advantages

• High-Density Analog Inputs: 16 channels in a compact module for efficient space utilization
• Precision Measurement: Provides accurate current input readings for reliable control
• Compact Design: 118 × 35 × 87 mm, ideal for space-constrained control panels
• Seamless Integration: Plug-and-play with CompactLogix I/O backplanes
• Diagnostic Features: Onboard LEDs indicate module and channel status for troubleshooting

Technical FAQs

1. What is the primary function of the 1769-IF16C module?
   To acquire and process up to 16 analog current input signals (4–20 mA) in CompactLogix systems.
2. Can it handle high-density applications?
   Yes, it provides 16 analog current channels in a single compact module.
3. Is the module compatible with all CompactLogix controllers?
   Yes, it integrates seamlessly with supported CompactLogix processors.
4. Does it provide channel-level diagnostics?
   Yes, onboard LEDs indicate operational and fault status per channel.
5. What input range does it support?
   Standard 4–20 mA current loop inputs.
6. Can it operate in harsh industrial environments?
   Yes, designed for vibration, temperature variations, and continuous operation.
7. Does it require calibration?
   It comes factory-calibrated; field calibration is typically not required.
8. Is wiring straightforward?
   Yes, standard terminal connections for current input signals.
9. Can multiple modules be installed in one system?
   Yes, multiple 1769-IF16C modules can be used for expanded analog input capacity.
10. What is the response time for analog inputs?
    Fast enough for standard industrial process monitoring and control applications.
