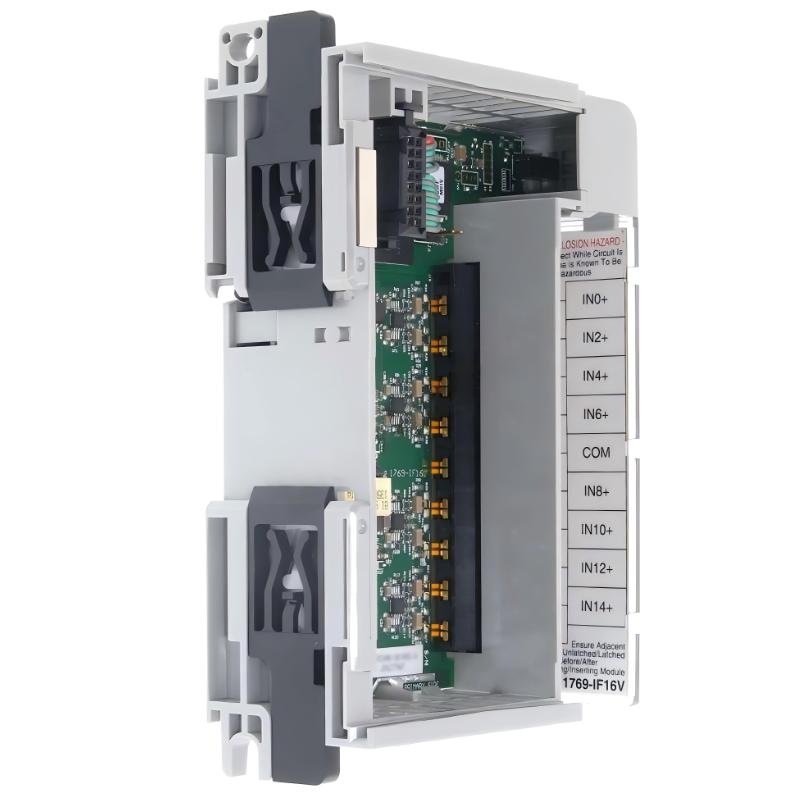

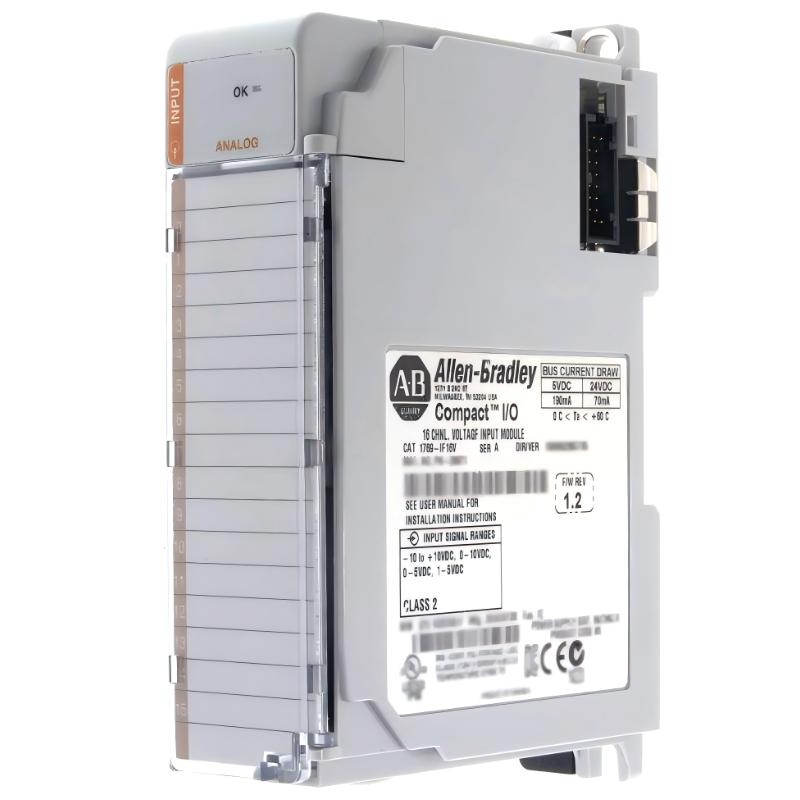

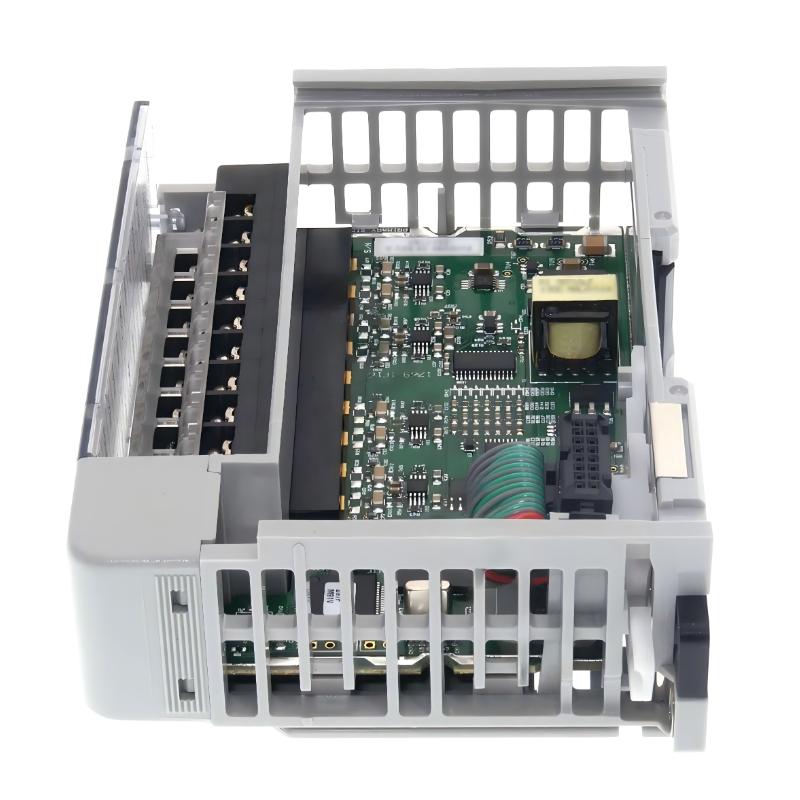

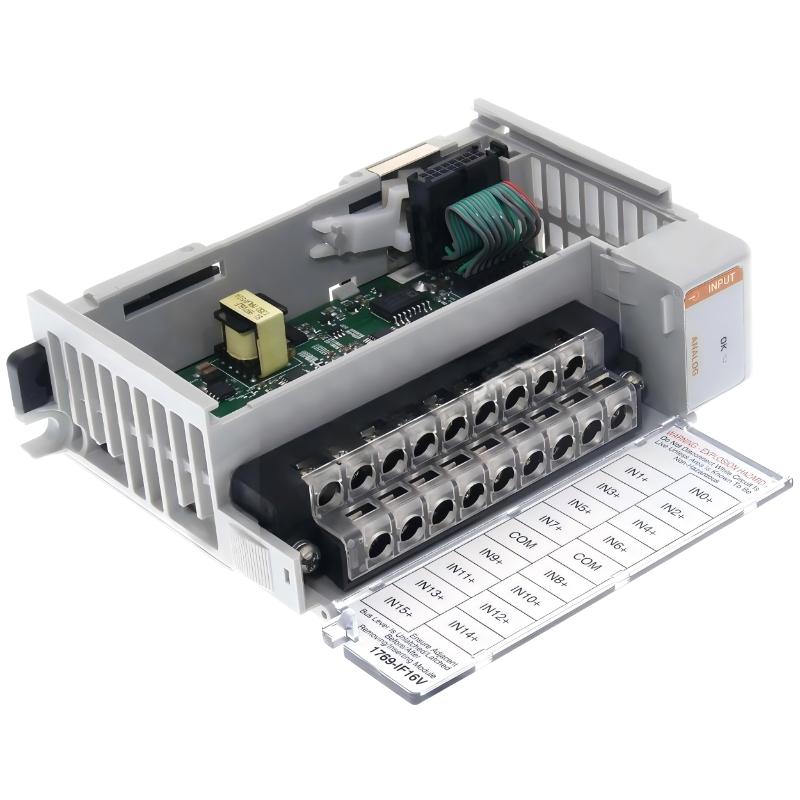

Allen Bradley 1769-IF16V CompactLogix Compact High-Density Analog Current Input Module

Applications

The Allen Bradley 1769-IF16V High-Density Analog Voltage Input Module is engineered for accurate acquisition of analog voltage signals in industrial control systems. Typical applications include:

• Reading voltage signals from sensors and transmitters in process automation
• Monitoring process variables such as temperature, pressure, and flow
• Integrating high-density analog inputs into CompactLogix I/O systems
• Industrial and manufacturing environments requiring precise voltage measurement

This module ensures reliable analog signal conversion for advanced monitoring and control.

Advantages

• High-Density Voltage Inputs: 16 channels in a single compact module for efficient space utilization
• Precision Measurement: Provides accurate analog voltage readings for reliable control and monitoring
• Compact Design: 118 × 35 × 87 mm, ideal for space-constrained control panels
• Seamless Integration: Plug-and-play with CompactLogix I/O backplanes
• Diagnostic Features: LED indicators for module and channel status allow quick troubleshooting

Technical FAQs

1. What is the primary function of the 1769-IF16V module?
   To acquire and process up to 16 analog voltage input signals in CompactLogix systems.
2. What voltage range does it support?
   Typically 0–10 VDC analog input signals.
3. How many channels does it have?
   16 analog voltage input channels.
4. Does it provide channel-level diagnostics?
   Yes, onboard LEDs indicate operational and fault status for each channel.
5. Is it compatible with CompactLogix controllers?
   Yes, fully integrates with supported CompactLogix processors.
6. Does it provide isolation for inputs?
   Yes, inputs are designed for safe analog voltage measurement.
7. Is calibration required?
   Factory-calibrated; field calibration is usually not necessary.
8. Can multiple modules be installed in one system?
   Yes, multiple 1769-IF16V modules can be used for expanded analog input capacity.
9. Can it operate in harsh industrial environments?
   Yes, designed for vibration, temperature variations, and continuous operation.
10. What is the typical response time?
    Sufficient for standard process control and monitoring applications.
