Brand:Allen Bradley PLC Item No.:1762-IQ8 Product Origin:USA Product Dimensions:90 x 40 x 87 mm Product Weight:0.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

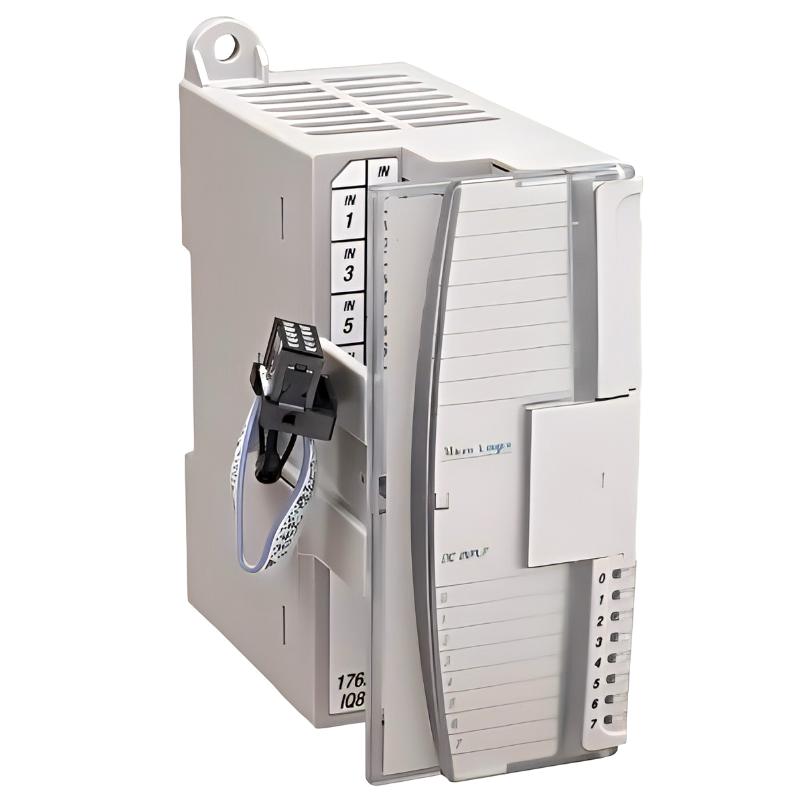

The Allen Bradley 1762-IQ8 MicroLogix DC input module is designed to expand the input capabilities of MicroLogix PLC systems in industrial automation applications. It provides reliable acquisition of digital signals from field devices such as sensors, switches, and control contacts.
Technical Specifications
Specification
Details
Manufacturer
Allen Bradley
Product Series
MicroLogix 1762
Model Number
1762-IQ8
Product Type
DC Digital Input Module
Input Channels
8
Input Voltage
24V DC
Signal Type
Digital input
Compatibility
MicroLogix PLC systems
Mounting Type
DIN rail / expansion rack
Application
Industrial automation input expansion
Dimensions
90 × 40 × 87 mm
Weight
0.2 kg
Recommended Related Models
Model Number
Product Name
1762-OW8
MicroLogix Relay Output Module
1762-IF4
MicroLogix Analog Input Module
1761-L16BBB
MicroLogix 1000 PLC Controller (16-point)
1761-CBL-AP00
MicroLogix Programming Cable
Popular Related Models
Model Number
Product Name
1766-L32BXB
MicroLogix 1400 Controller
1762-IQ16
MicroLogix 16-point DC Input Module
1762-OW16
MicroLogix Relay Output Module
1761-NET-ENI
Ethernet Interface Module
Typical Application Scenarios
• Compact machine automation systems requiring additional digital input capacity
• OEM equipment such as packaging machines, small conveyors, and assembly stations
• Industrial control panels where expanded signal acquisition is required
• Retrofit projects upgrading relay-based systems to PLC-based control
• Light manufacturing environments with moderate sensor integration needs
• Process monitoring systems requiring reliable DC signal collection
• Standalone MicroLogix systems needing flexible I/O expansion
• Factory automation applications with multiple sensor inputs
Key Advantages
• Expands MicroLogix system input capacity with reliable DC signal handling
• Compact design reduces panel space requirements and simplifies installation
• Fast response time ensures accurate real-time signal acquisition
• Compatible with MicroLogix PLC architecture for seamless integration
• Supports a wide range of industrial sensors and switching devices
• Stable performance improves system reliability in automation environments
• Easy wiring structure reduces commissioning time and effort
• Durable industrial-grade construction ensures long-term operational use
Technical FAQs
1. What is the main function of the 1762-IQ8 module?
It is a DC digital input expansion module used to increase input capacity in MicroLogix systems.
2. How many input channels does it provide?
It provides 8 DC digital input channels.
3. What type of signals does it accept?
It accepts 24V DC digital input signals from industrial sensors and switches.
4. Is it compatible with all MicroLogix controllers?
It is designed for compatible MicroLogix PLC systems that support expansion modules.
5. Can it be used in industrial environments?
Yes. It is built for light to medium industrial automation applications.
6. Does it require separate programming?
No. It integrates directly into the existing PLC program configuration.
7. What types of devices can be connected?
Proximity sensors, limit switches, push buttons, and other DC signal devices.
8. Is installation complex?
No. It uses a simple plug-in expansion module structure.
9. Does it improve system performance?
It improves system flexibility by allowing more input signals to be processed.
10. Is it suitable for OEM machines?
Yes. It is widely used in compact OEM automation systems.
