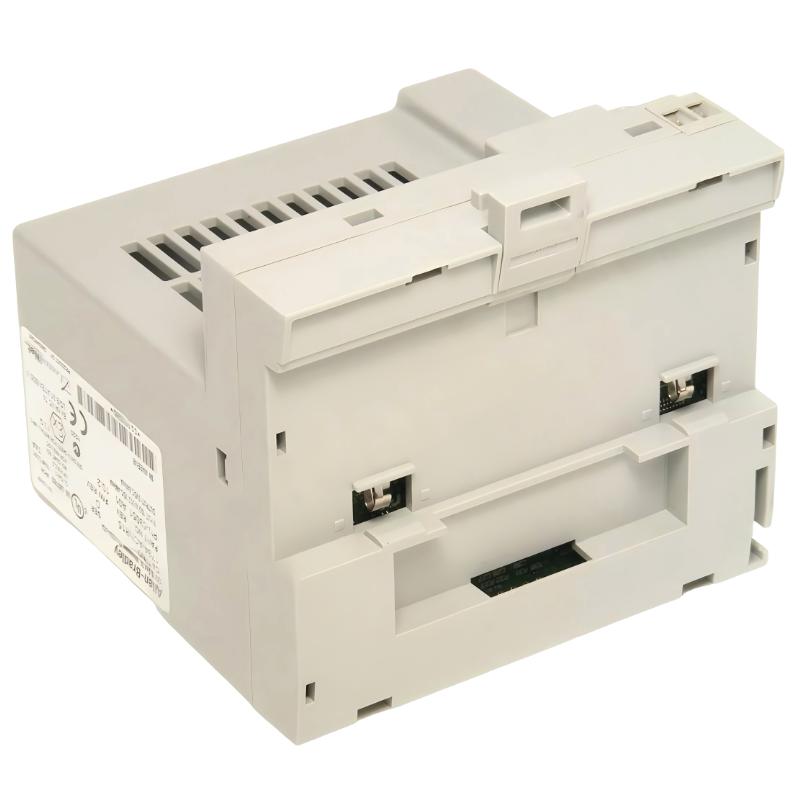

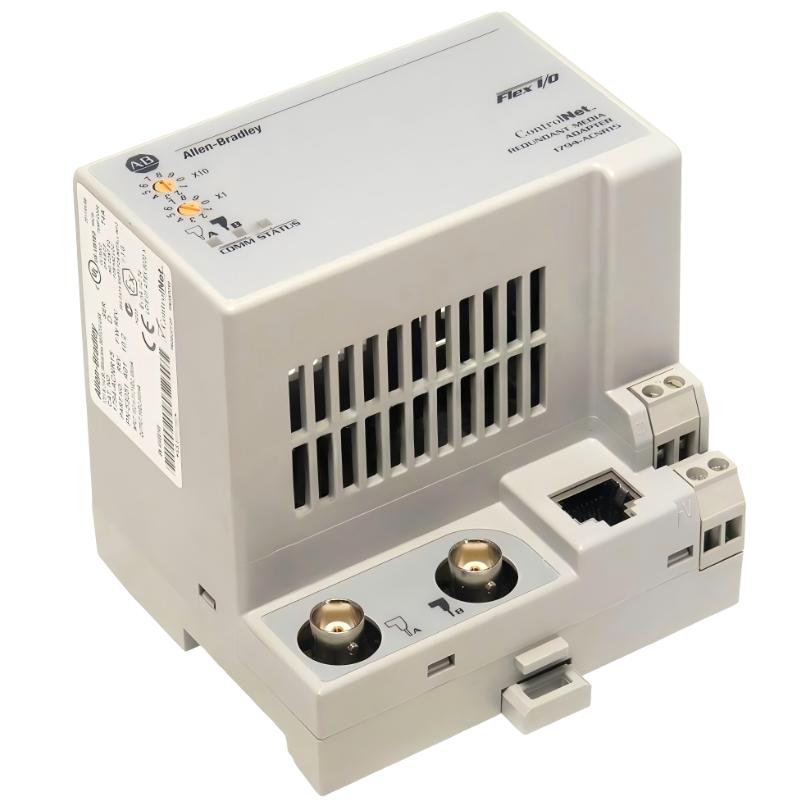

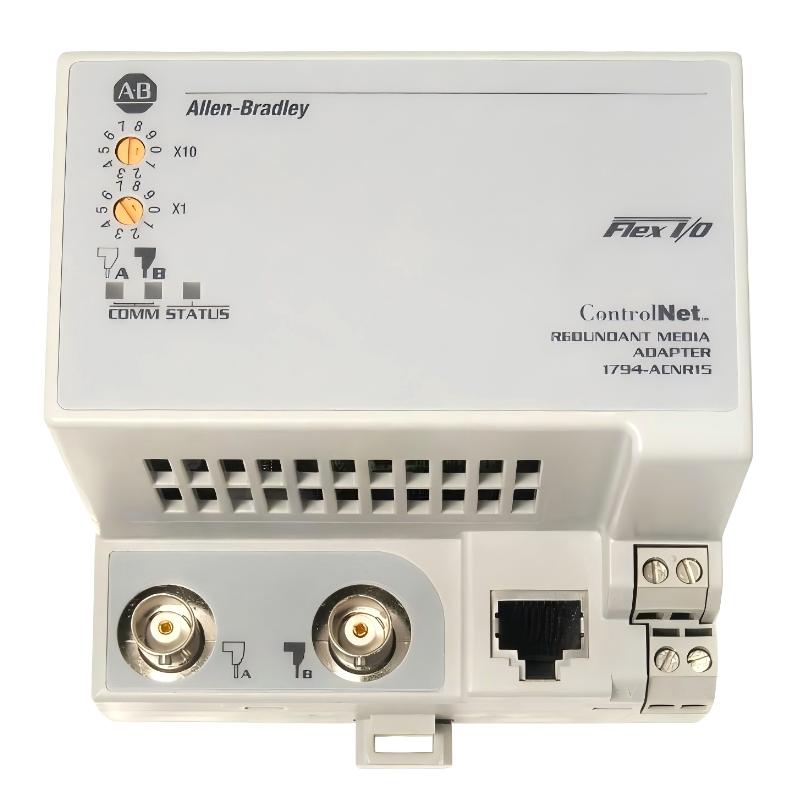

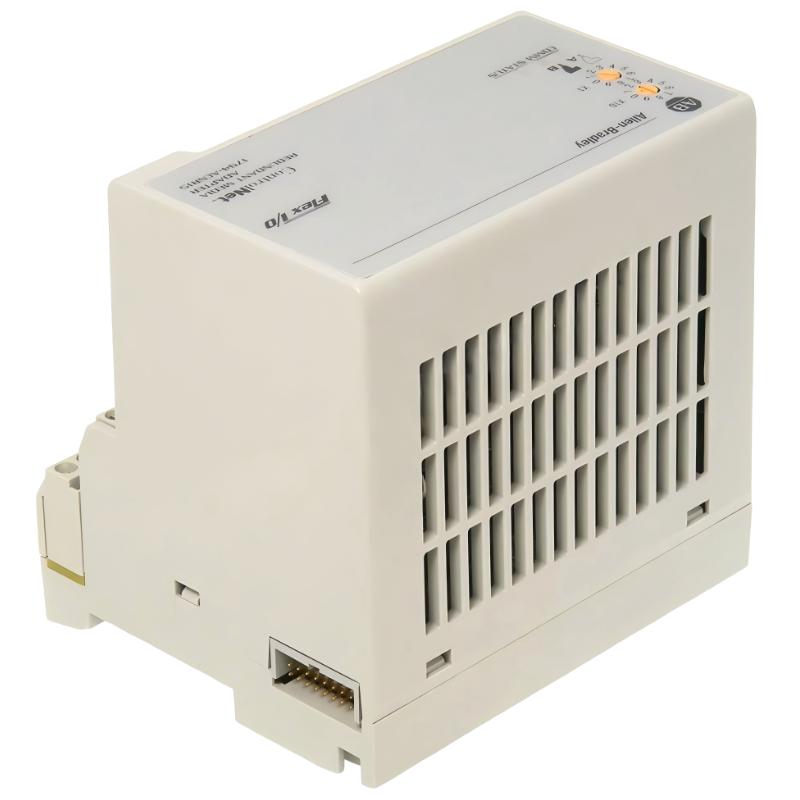

The Allen Bradley 1794-ACNR15 is a FLEX I/O ControlNet redundant adapter module designed to connect distributed FLEX I/O systems to a ControlNet network with enhanced communication resilience. It supports dual-media redundancy, allowing continuous operation even if one ControlNet trunk fails, making it ideal for mission-critical industrial automation environments.

Engineered for high availability systems, the 1794-ACNR15 is widely used in large-scale manufacturing, process control, and infrastructure automation where uninterrupted I/O communication and deterministic network behavior are required. Its redundant architecture significantly improves system uptime and communication reliability across complex distributed control systems.

Technical Specifications

Specification	Details
Manufacturer	Allen Bradley (Rockwell Automation)
Model Number	1794-ACNR15
Product Series	FLEX I/O
Module Type	Redundant ControlNet Adapter
Communication Protocol	ControlNet V1.5
Network Speed	5 Mbps
Media Type	Dual ControlNet coaxial (redundant)
Input Voltage	24 V DC (19.2–31.2 V DC)
Current Draw	Approx. 400–450 mA
I/O Capacity	Up to 8 FLEX I/O modules
Flexbus Output Current	Max 640 mA
Power Dissipation	Approx. 3.4–4.6 W
Isolation Voltage	850 V DC (user power to system)
Diagnostic Indicators	LED status (Comm A / Comm B / I/O status)
Mounting Type	DIN rail / open-style control cabinet
Function	Redundant network I/O communication adapter

Physical Dimensions & Weight

Mechanical Property	Specification
Overall Dimensions (L × W × H)	Approx. 87 × 94 × 92 mm
Weight	Approx. 0.25–0.30 kg

Recommended Related Models

The 1794-ACNR15 is typically used within FLEX I/O ControlNet systems alongside standard and redundant communication and I/O modules.

Related Model	Description
1794-ACN15	Standard ControlNet Adapter
1794-IB16	Digital Input Module
1794-OB16	Digital Output Module
1794-IE8	Analog Input Module
1794-OE4	Analog Output Module
1794-TB3	Terminal Base Unit
1794-TB2	Terminal Base Unit
1756-CN2	ControlLogix ControlNet Module
1756-EN2TR	Ethernet/IP Communication Module
1783-US8T	Industrial Ethernet Switch

Popular Allen Bradley Automation Products

Allen Bradley systems are widely adopted in industrial automation due to their reliability, scalability, and strong communication ecosystem.

Popular Model	Product Category
1756-L85E	ControlLogix Controller
1769-L36ERM	CompactLogix Controller
5069-IF8	Analog I/O Module
2711P-T12C4D8	PanelView HMI
20G11NC072AA0NNNNN	PowerFlex 755 Drive
1734-AENTR	POINT I/O Adapter
1606-XLS240E	Industrial Power Supply
1756-EN2TR	Ethernet/IP Communication Module
1794-IE8	FLEX I/O Analog Module
25B-D013N114	PowerFlex 525 Drive

Industrial Applications

The Allen Bradley 1794-ACNR15 is used in distributed automation systems requiring high availability and redundant network communication.

Typical applications include:

Large-scale factory automation systems
Automotive production lines
Oil and gas processing facilities
Water and wastewater treatment plants
Power generation monitoring systems
Chemical processing industries
Mining and heavy industrial operations
Packaging and logistics systems
Critical infrastructure control networks
High-availability ControlNet architectures

Its redundancy capability makes it especially suitable for systems where downtime is not acceptable.

Key Advantages

Redundant Communication Architecture

Dual ControlNet media support ensures continuous operation even in the event of cable or segment failure.

High System Availability

Designed for mission-critical environments where uninterrupted I/O communication is essential.

Flexible Modular Expansion

Supports up to 8 FLEX I/O modules, enabling scalable distributed control system design.

Strong Electrical Isolation

850 V DC isolation improves safety and protects against industrial electrical noise.

Deterministic Network Performance

Maintains stable 5 Mbps ControlNet communication for real-time automation control.

Technical FAQs

1. What is the Allen Bradley 1794-ACNR15 used for?

It is used to connect FLEX I/O modules to a redundant ControlNet network in industrial automation systems.

2. What is the main difference between ACN15 and ACNR15?

The ACNR15 supports redundant ControlNet media, improving network reliability and uptime.

3. How many I/O modules can it support?

It supports up to 8 FLEX I/O modules.

4. What communication protocol does it use?

It uses ControlNet V1.5 protocol at 5 Mbps.

5. Does it support network redundancy?

Yes. It provides dual ControlNet channels for redundant communication paths.

6. What is the power supply requirement?

It operates on 24 V DC (19.2–31.2 V DC range).

7. What is its main function?

It acts as a redundant communication adapter between FLEX I/O modules and ControlNet networks.

8. Is it suitable for modern Ethernet systems?

It is primarily used in legacy ControlNet systems rather than modern EtherNet/IP architectures.

9. What industries use this module?

It is used in manufacturing, energy, oil & gas, water treatment, and heavy industrial automation.

10. Why is the 1794-ACNR15 important in automation systems?

Because it ensures continuous, fault-tolerant I/O communication in ControlNet networks, reducing downtime and improving system reliability in critical industrial environments.
