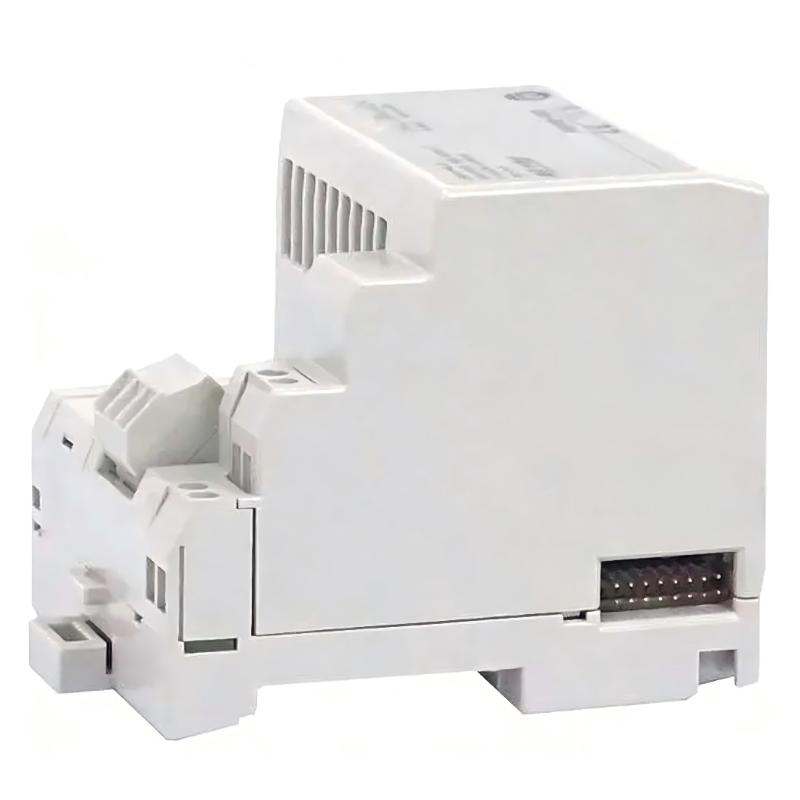

Allen Bradley 1794-ASB FLEX Remote I/O Adapter Module

Industrial Applications

The Allen Bradley 1794-ASB is primarily used in legacy industrial automation systems relying on Remote I/O communication infrastructure.

Typical applications include:

• Legacy PLC-5 control systems
• SLC 500 automation systems
• Manufacturing production lines
• Automotive assembly systems
• Material handling and conveyor systems
• Packaging machinery
• Water and wastewater treatment plants
• Power generation auxiliary systems
• Industrial retrofit and expansion projects
• Long-life installed base maintenance

It is especially valuable in facilities where full system replacement is not practical, and incremental I/O expansion is required.

Key Advantages

Proven Remote I/O Technology

Supports classic Allen-Bradley Remote I/O networks widely installed in legacy industrial systems.

Flexible Modular Expansion

Enables up to 8 FLEX I/O modules to be integrated into existing PLC architectures.

Long Lifecycle Industrial Design

Built for long-term use in systems that require stable operation over decades.

Multiple Communication Rates

Supports 57.6, 115.2, and 230.4 kbps for compatibility with various RIO configurations.

Strong Electrical Isolation

High isolation rating improves system safety and noise immunity in harsh environments.

Technical FAQs

1. What is the Allen Bradley 1794-ASB used for?

It is used to connect FLEX I/O modules to a Remote I/O (RIO) industrial network.

2. What systems is it compatible with?

It is commonly used with PLC-5, SLC 500, and other legacy Allen-Bradley controllers.

3. How many I/O modules can it support?

It supports up to 8 FLEX I/O modules.

4. What communication speeds does it support?

It supports 57.6 kbps, 115.2 kbps, and 230.4 kbps.

5. What is the power requirement?

It operates on 24 V DC (19.2–31.2 V DC range).

6. Is it still used in modern systems?

It is mainly used in legacy systems and plant maintenance environments.

7. What is its main function?

It acts as a communication bridge between a Remote I/O scanner and FLEX I/O modules.

8. Does it support diagnostics?

Yes. It includes LED indicators for module status, fault detection, and network communication.

9. What industries use it?

It is used in manufacturing, automotive, utilities, and process industries with legacy control systems.

10. Why is the 1794-ASB still important?

Because many industrial plants still rely on Remote I/O architecture, making it essential for system maintenance, expansion, and long-term operational continuity.
