Introduction

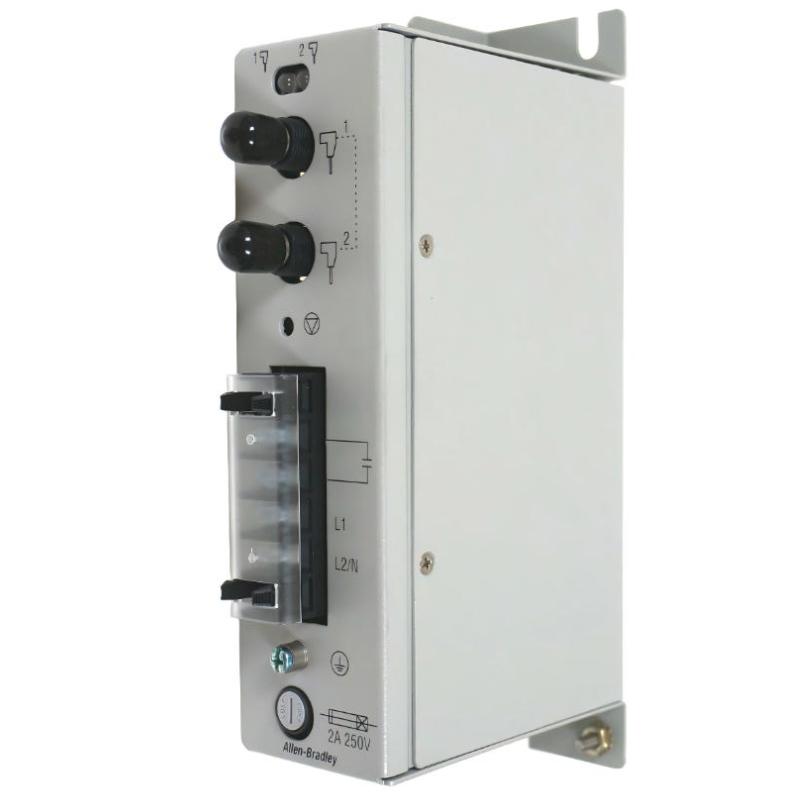

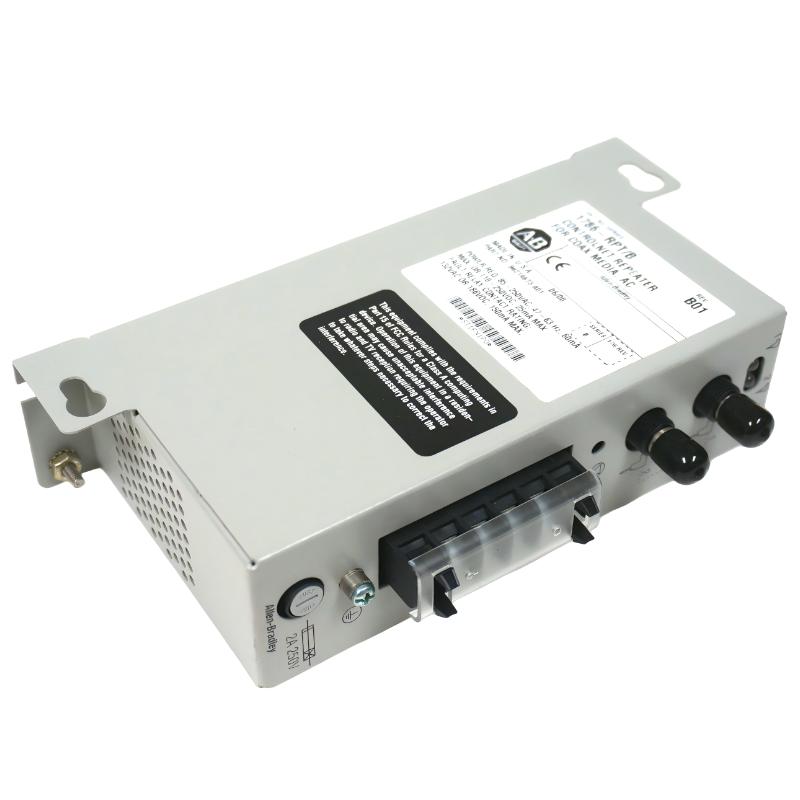

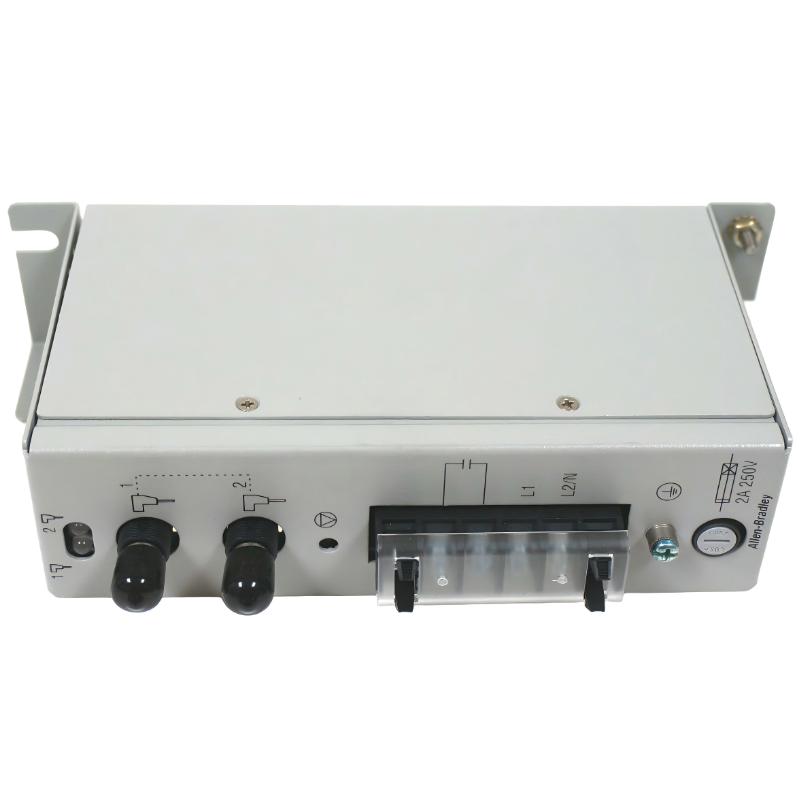

The Allen-Bradley 1786-RPT ControlNet Coaxial Repeater provides a reliable solution for extending and maintaining ControlNet network performance in industrial automation systems. Its compact, durable, and easy-to-integrate design ensures high-quality signal regeneration, network reliability, and simplified maintenance in complex installations.

Technical Specifications

Parameter	Specification
Dimensions (L x W x H)	215.9 × 50.8 × 101.6 mm
Weight	0.87 kg (1.92 lb)
Network Type	ControlNet Coaxial
Connectors	BNC coaxial
Operating Temperature	-20°C to 60°C
Humidity	5% – 95% non-condensing
Power Supply	24V DC nominal
Mounting	Panel or DIN rail mount
Compliance	UL, CE

Applications

The Allen-Bradley 1786-RPT ControlNet Coaxial Repeater is designed to extend and strengthen ControlNet network communications in industrial automation systems. Key applications include:

Extending ControlNet coaxial network segments beyond standard distance limitations
Enhancing signal integrity in large or complex industrial networks
Industrial control systems requiring high-reliability data communication
Integration with Allen-Bradley ControlLogix and PLC-5 controllers
High-noise environments requiring robust network performance

Its compact 215.9 × 50.8 × 101.6 mm form factor makes it easy to install in control cabinets without occupying excessive space.

Advantages

Extended Network Reach: Enables longer ControlNet coaxial network segments.
Improved Signal Integrity: Amplifies and regenerates signals to reduce data errors.
Compact and Space-Saving: Small footprint allows efficient use of panel space.
Easy Integration: Works seamlessly with Allen-Bradley PLC systems and ControlNet devices.
Durable Industrial Design: Resists vibration, temperature fluctuations, and electrical noise.
Maintenance-Friendly: Quick installation and modular design minimize downtime during upgrades.

Technical FAQs

Q: What is the primary function of the 1786-RPT?
A: It amplifies and regenerates ControlNet coaxial signals to extend network length and maintain signal quality.
Q: How far can it extend a ControlNet segment?
A: Typically adds up to 500 meters per coaxial segment, depending on network configuration.
Q: Can multiple repeaters be used in a single network?
A: Yes, multiple 1786-RPT units can be daisy-chained to extend longer networks.
Q: What is the operating temperature range?
A: Designed for -20°C to 60°C continuous operation.
Q: Is it compatible with other Allen-Bradley ControlNet devices?
A: Yes, fully compatible with all standard ControlNet nodes, I/O modules, and PLC controllers.
Q: Does it require a separate power supply?
A: Yes, powered by 24V DC nominal supply per ControlNet specifications.
Q: How does it improve network reliability?
A: By regenerating signals, it reduces data errors, jitter, and communication interruptions.
Q: What kind of connectors does it use?
A: BNC coaxial connectors compliant with ControlNet cabling standards.
Q: Can it operate in high-noise industrial environments?
A: Yes, designed to resist EMI/RFI interference typical in industrial installations.
Q: How easy is installation and maintenance?
A: Snap-in mounting and modular design allow rapid installation, minimal disruption, and easy replacement.
