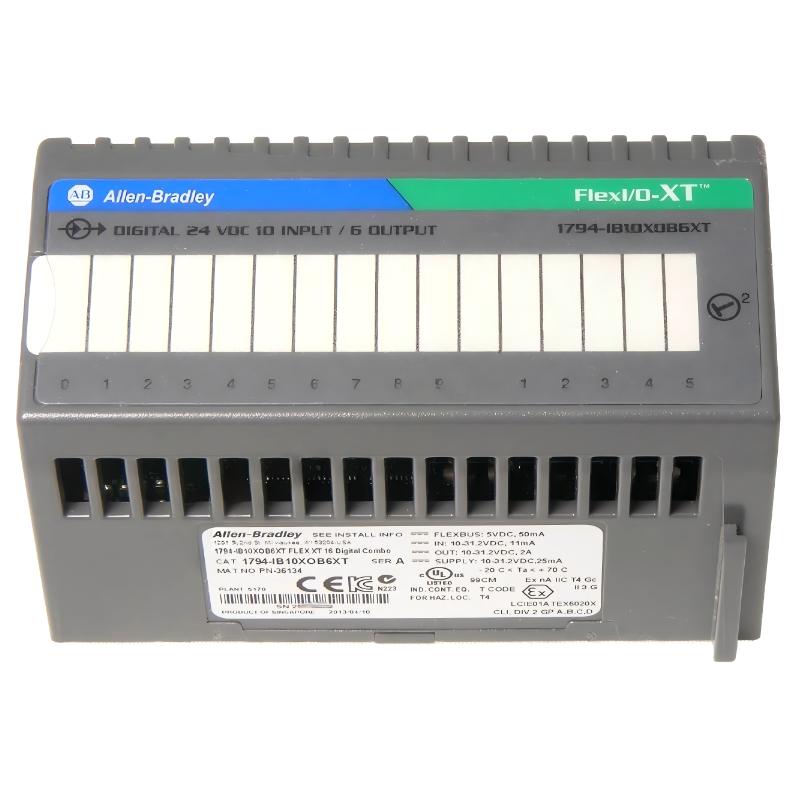

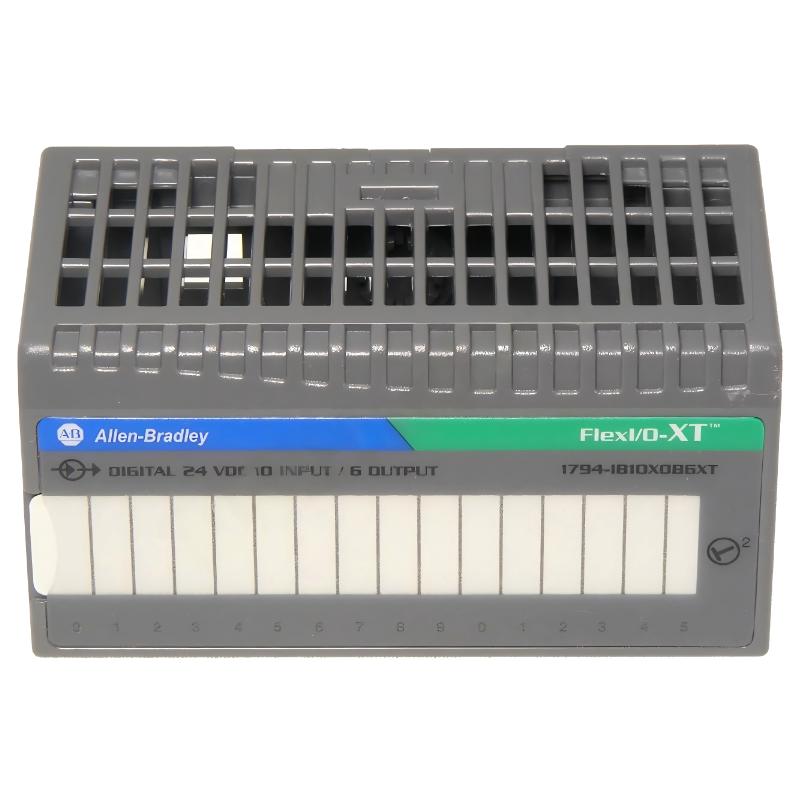

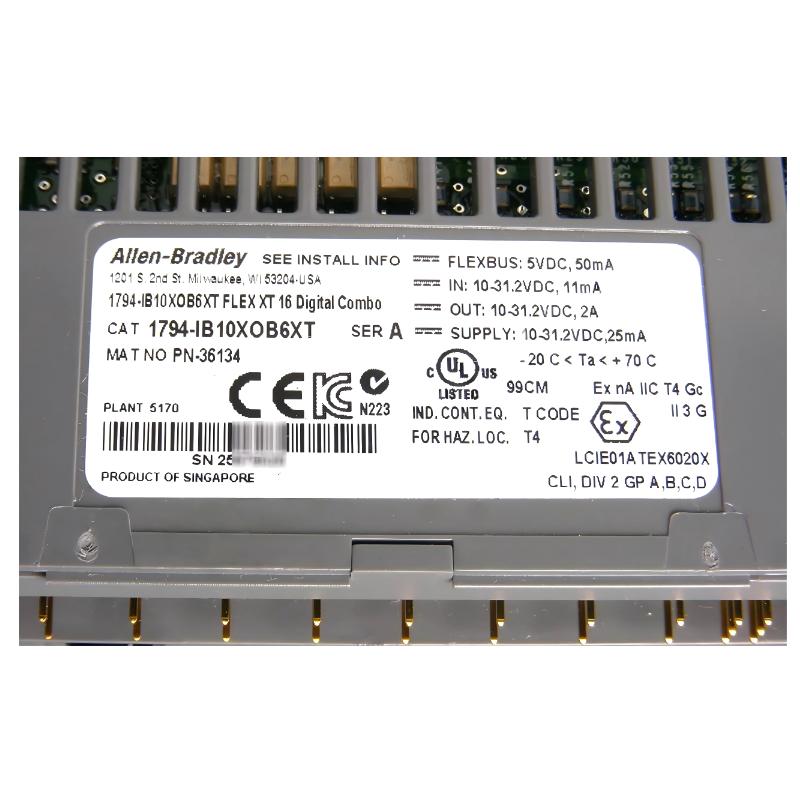

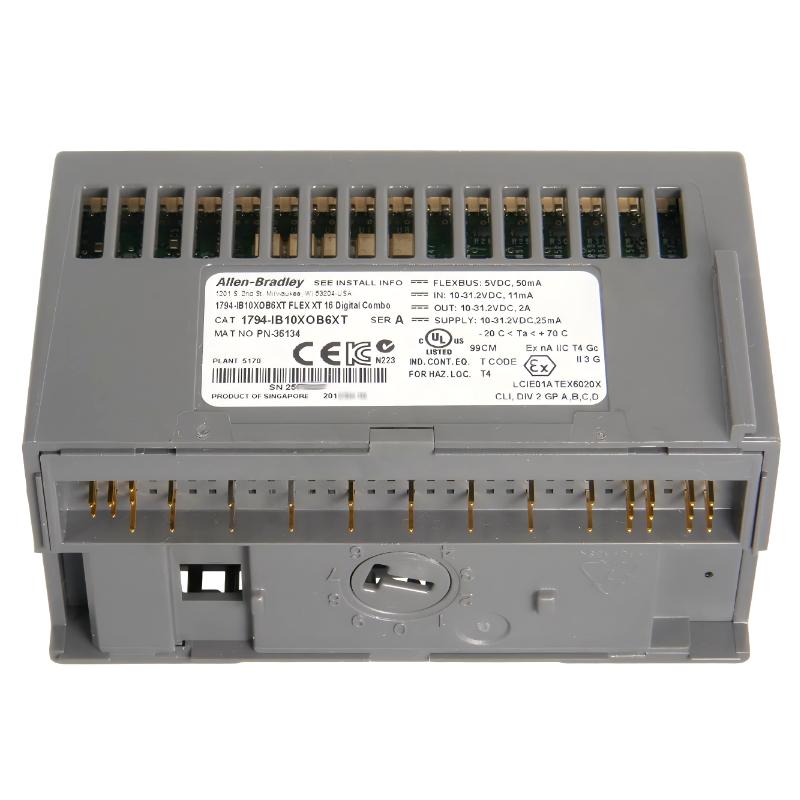

The Allen Bradley 1794-IB10XOB6 is a FLEX I/O combination module designed to provide both digital inputs and outputs in a single compact unit. It integrates 10 sinking 24V DC inputs and 6 sourcing 24V DC outputs, making it a space-saving solution for machine-level control and distributed I/O architectures.
This module is widely used in FLEX I/O systems where mixed signal handling is required without dedicating separate input and output modules. It is typically deployed in industrial automation environments such as packaging machines, material handling systems, and factory control panels.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Allen Bradley (Rockwell Automation) |
| Model Number | 1794-IB10XOB6 |
| Product Family | FLEX I/O |
| Module Type | Combination Digital Input/Output Module |
| Input Channels | 10 × 24V DC sinking inputs |
| Output Channels | 6 × 24V DC sourcing outputs |
| Input Voltage Range | 24V DC nominal |
| Output Voltage | 24V DC |
| Backplane Power | 5V DC via FLEX I/O system |
| FlexBus Current | Approx. 50 mA |
| Power Supply | 24V DC system supply (19.2–31.2V DC) |
| Power Dissipation | Approx. 6 W |
| Isolation Voltage | Up to 850–1250 V AC (field to system, depending on test condition) |
| Diagnostics | Individual LED indicators for inputs/outputs |
| Mounting Type | DIN rail via FLEX I/O terminal base |
| Compatible Bases | 1794-TB2 / 1794-TB3 series |
| Operating Temperature | 0°C to 55°C |
| Protection Class | IP20 |
Physical Dimensions & Weight (L × W × H Combined)
| Parameter | Specification |
|---|---|
| Dimensions (L × W × H) | Approx. 94 × 94 × 69 mm |
| Weight | Approx. 0.085–0.20 kg |
Recommended Related Models
The 1794-IB10XOB6 is typically used in compact FLEX I/O stations where both input and output signals are required in a single module.
| Related Model | Description |
|---|---|
| 1794-IB16 | 16-point DC input module |
| 1794-OB16 | 16-point DC output module |
| 1794-IA8 | 120V AC input module |
| 1794-IE8 | Analog input module |
| 1794-OE4 | Analog output module |
| 1794-TB2 | Terminal base unit |
| 1794-TB3 | Terminal base unit |
| 1794-AENT | EtherNet/IP adapter |
| 1794-AENTR | Redundant EtherNet/IP adapter |
| 1794-ACN15 | ControlNet adapter |
