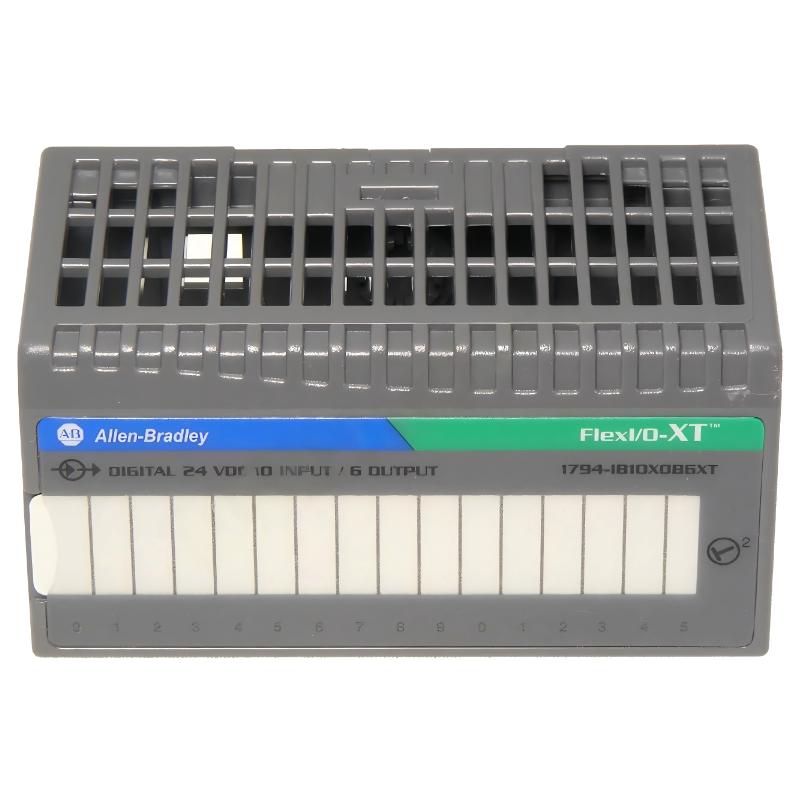

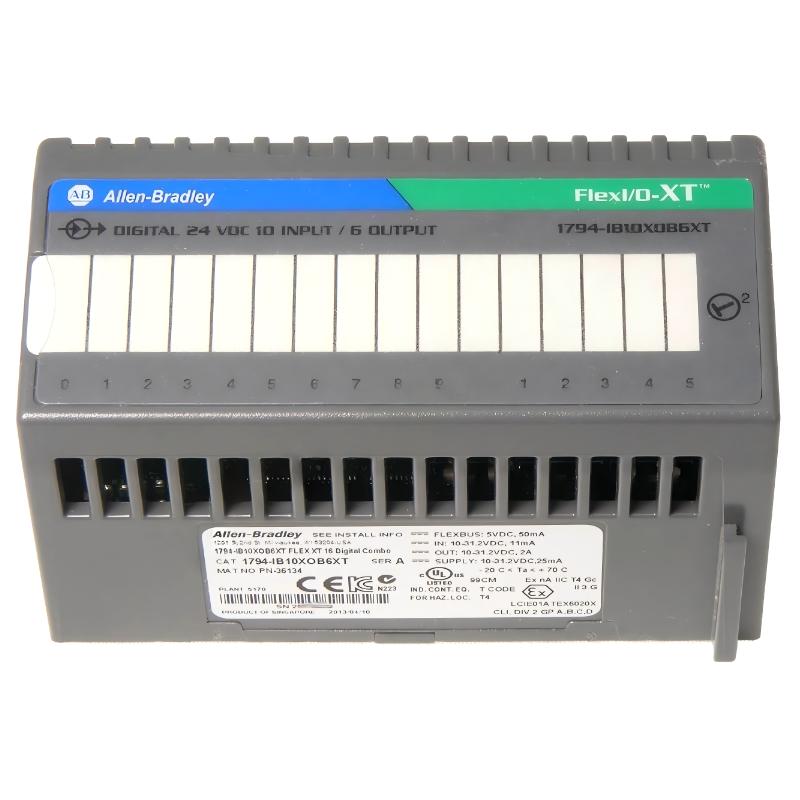

The Allen Bradley 1794-IB10XOB6XT is a FLEX I/O-XT combination module designed for extreme environment industrial automation systems. It integrates 10-point 24V DC sinking digital inputs and 6-point 24V DC sourcing digital outputs in a single compact unit, optimized for applications requiring high temperature tolerance and reliable mixed-signal control.
As part of the FLEX I/O-XT family, this module is built for harsh operating conditions such as high heat, vibration, and continuous-duty industrial processes. It is commonly deployed in oil & gas, chemical processing, and heavy manufacturing systems where standard I/O modules may not be sufficient.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Allen Bradley (Rockwell Automation) |
| Model Number | 1794-IB10XOB6XT |
| Product Family | FLEX I/O-XT |
| Module Type | Combination Digital Input/Output Module |
| Input Channels | 10 × 24V DC sinking inputs |
| Output Channels | 6 × 24V DC sourcing outputs |
| Input Voltage Range | 24V DC nominal (approx. 10–31.2V DC) |
| Output Current Rating | Up to 2.0 A per output |
| Total Module Output Load | Up to 10 A max (combined) |
| FlexBus Current | Approx. 35–50 mA |
| Power Supply | 24V DC (19.2–31.2V DC system supply) |
| Power Dissipation | Up to ~6 W |
| Temperature Range | -20°C to +70°C (extended/XT rating) |
| Isolation Voltage | Industrial-grade field-to-system isolation |
| Diagnostics | Individual LED indicators for inputs and outputs |
| Mounting Type | DIN rail via FLEX I/O terminal base |
| Compatible Bases | 1794-TB2XT / 1794-TB3XT series |
| Protection Class | IP20 (open-style enclosure) |
Physical Dimensions & Weight (L × W × H Combined)
| Parameter | Specification |
|---|---|
| Dimensions (L × W × H) | Approx. 100 × 120 × 50 mm |
| Weight | Approx. 0.5 kg |
Recommended Related Models
The 1794-IB10XOB6XT is typically used in FLEX I/O-XT distributed systems with other extreme-environment modules.
| Related Model | Description |
|---|---|
| 1794-IA16 | 16-point AC input module |
| 1794-IB16 | 24V DC input module |
| 1794-OB16 | 24V DC output module |
| 1794-IE8 | Analog input module |
| 1794-OE4 | Analog output module |
| 1794-AENT | EtherNet/IP adapter |
| 1794-AENTR | Redundant EtherNet/IP adapter |
| 1794-ACN15 | ControlNet adapter |
| 1794-ASB | Remote I/O adapter |
| 1794-TB3XT | XT terminal base unit |
