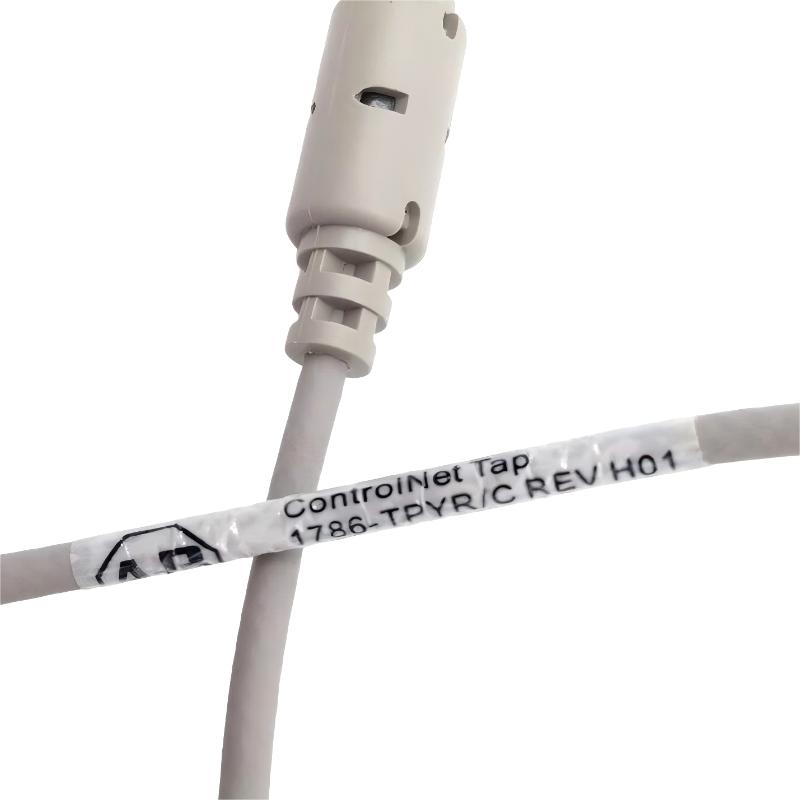

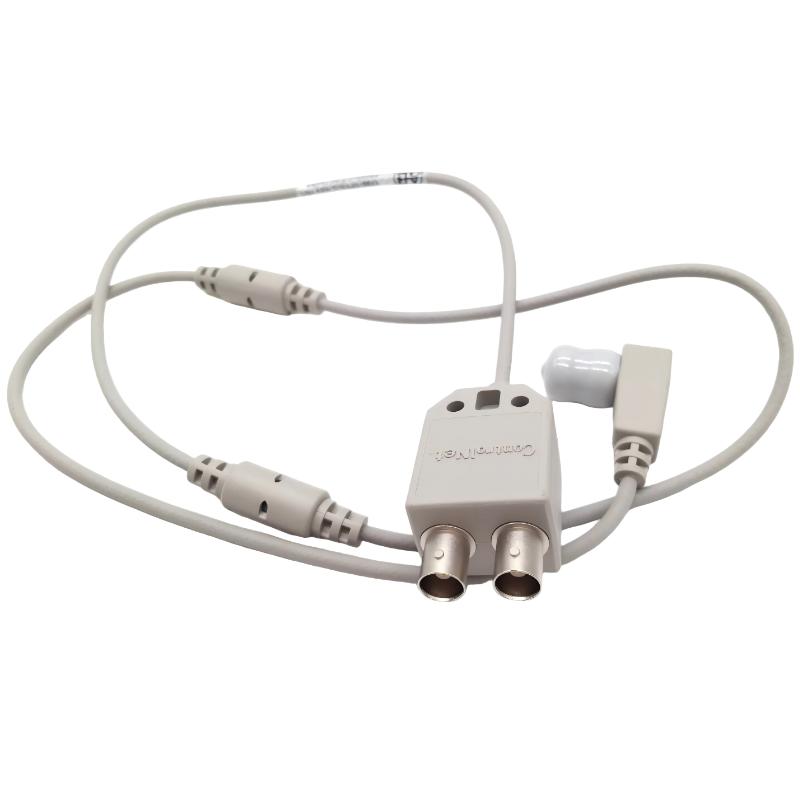

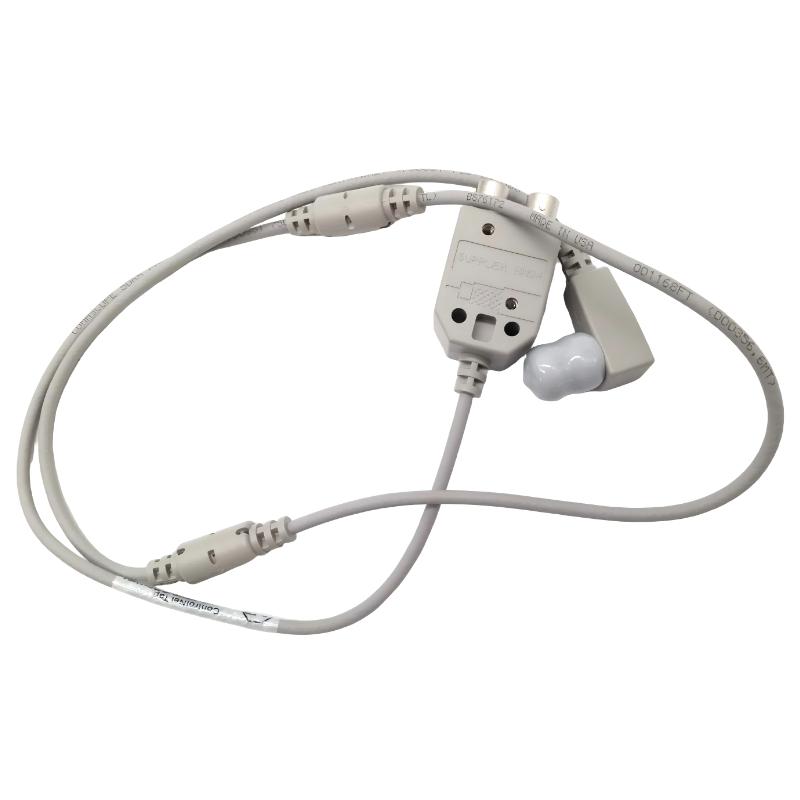

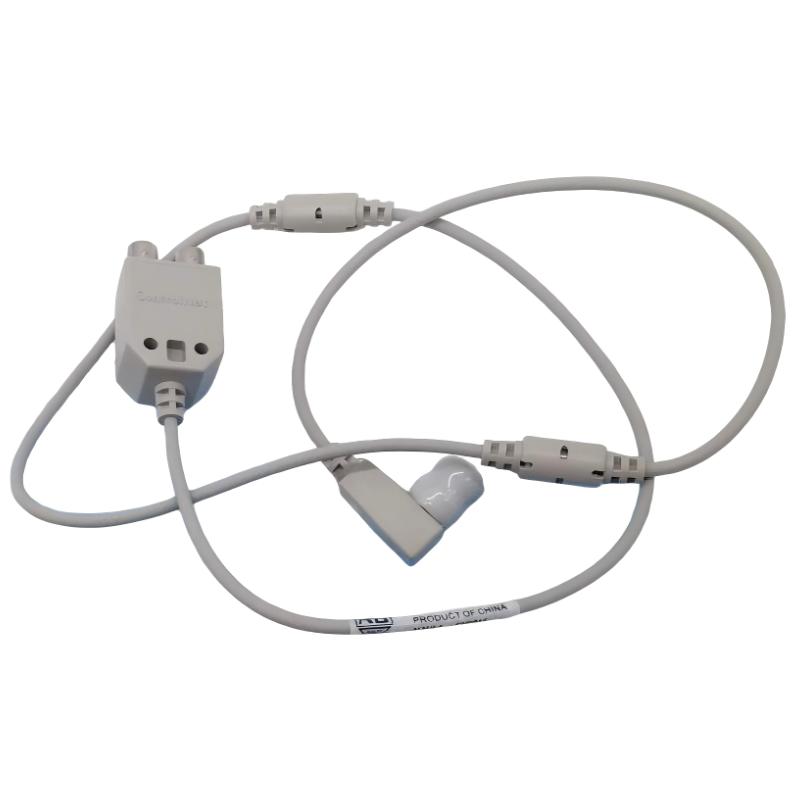

Allen Bradley 1786-TPYR ControlNet Coaxial Tap Cable

Applications

The Allen-Bradley 1786-TPYR ControlNet Coaxial Tap Cable is engineered to provide reliable connectivity for ControlNet coaxial networks in industrial automation and control systems. Its typical applications include:

• Connecting devices to ControlNet coaxial network backbones
• Linking repeaters, nodes, and terminators in industrial panels
• SCADA and DCS system communication networks
• Industrial environments requiring high-reliability signal routing
• Flexible installations within control cabinets or network junction points

Its 1-meter length offers convenient routing while ensuring minimal signal degradation.

Advantages

• Reliable Signal Transmission: Maintains high-quality communication between ControlNet devices.
• Flexible Deployment: 1-meter cable length allows easy installation and routing in compact or crowded panels.
• Industrial-Grade Construction: Coaxial design withstands vibration, temperature fluctuations, and electrical noise.
• Seamless Integration: Fully compatible with Allen-Bradley repeaters, nodes, and network terminators.
• Reduced Signal Loss: High-quality coaxial construction minimizes attenuation and jitter.
• Maintenance-Friendly: Pre-terminated connectors and standardized design simplify replacement and upgrades.

Technical FAQs

1. Q: What is the purpose of the 1786-TPYR?
   A: It serves as a coaxial tap cable to connect ControlNet devices to the network backbone.
2. Q: How long is the cable?
   A: Standard length is 1 meter.
3. Q: Can multiple tap cables be used in a single network segment?
   A: Yes, multiple taps can be installed along a ControlNet segment for additional devices.
4. Q: What connectors are provided?
   A: Pre-terminated BNC coaxial connectors for easy installation.
5. Q: Is it suitable for high-vibration environments?
   A: Yes, industrial-grade coaxial construction ensures stable performance.
6. Q: What is the operating temperature range?
   A: Continuous operation from -20°C to 60°C.
7. Q: Does it affect network performance?
   A: Minimal signal loss ensures reliable data transmission and network integrity.
8. Q: Can it be used outdoors?
   A: Primarily designed for indoor industrial panel installations; outdoor use requires protective conduits.
9. Q: Is it compatible with Allen-Bradley 1786-RPT repeaters?
   A: Yes, fully compatible with all ControlNet repeaters, terminators, and nodes.
10. Q: How easy is it to install or replace?
    A: Pre-terminated BNC connectors and standardized length enable quick installation and replacement.
