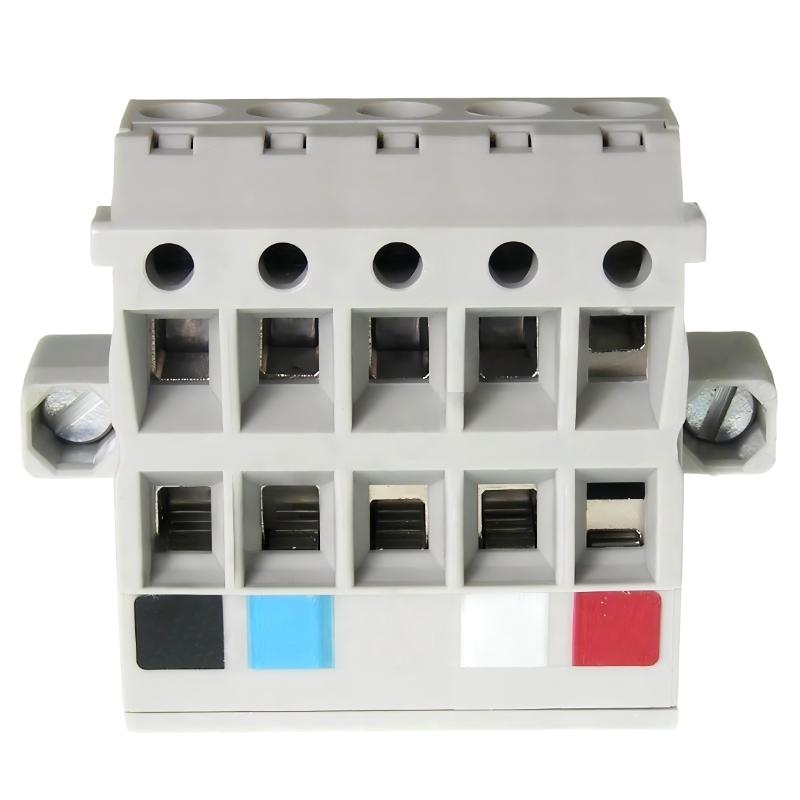

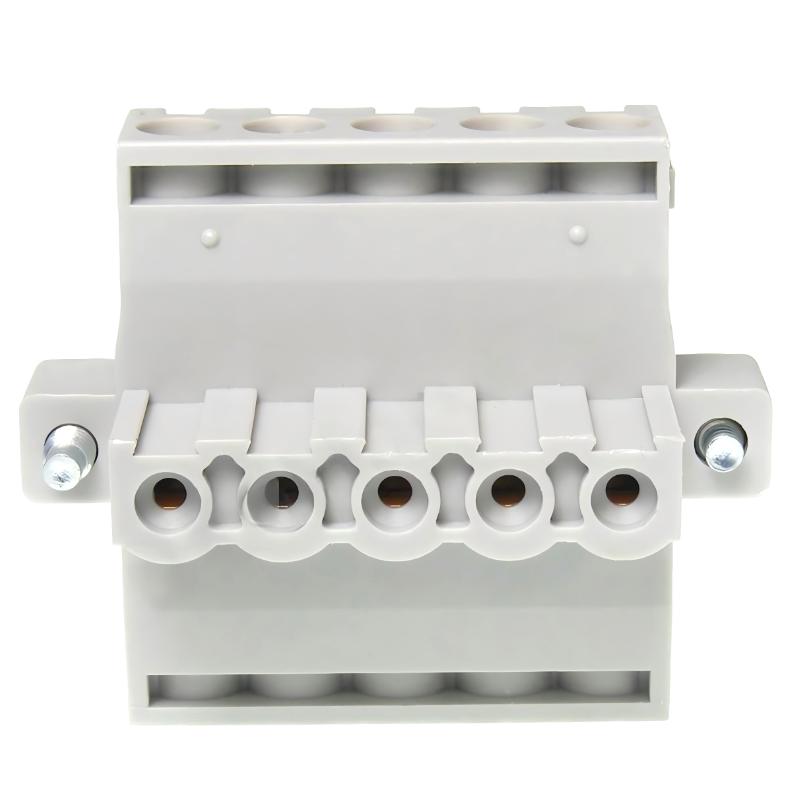

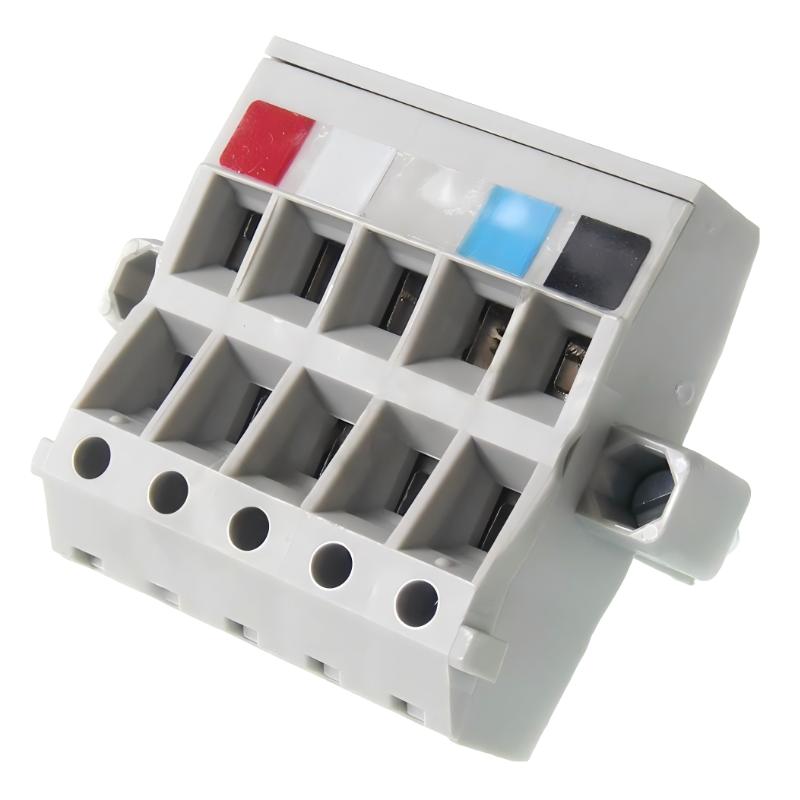

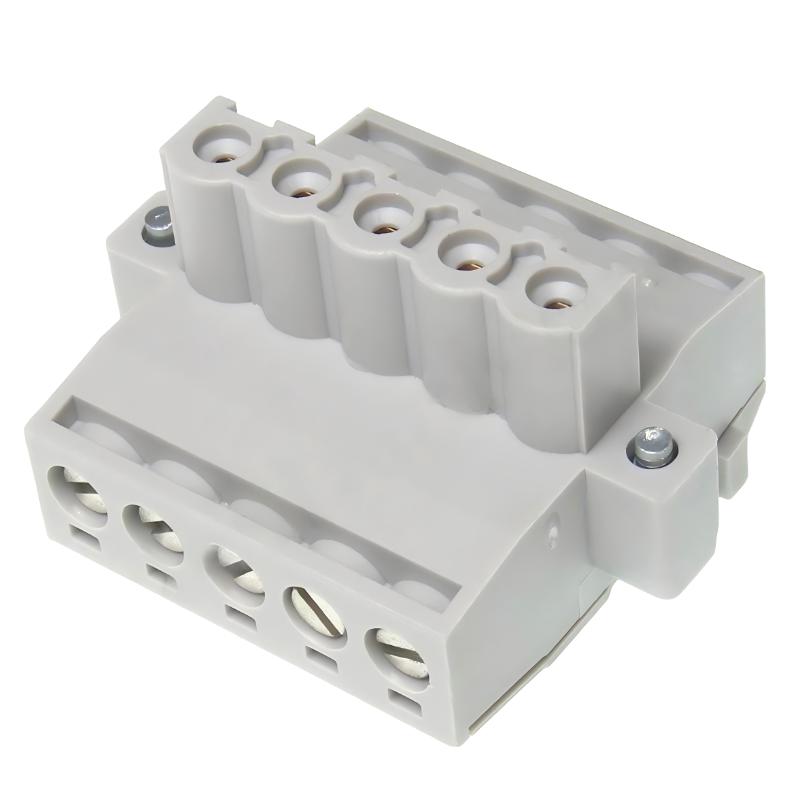

Allen Bradley 1787-PLUG10R DeviceNet 10-Pin Connector Plug

Applications

The Allen-Bradley 1787-PLUG10R DeviceNet 10-Pin Connector Plug is designed for secure and reliable DeviceNet network connections in industrial automation systems. Typical applications include:

• Connecting DeviceNet nodes and devices in industrial control networks
• Facilitating communication between PLCs, sensors, and actuators
• High-density industrial panels requiring compact connector solutions
• Field wiring installations where robust and durable connections are essential
• Systems demanding reliable data transfer with minimal network interruption

Its compact 80 × 20 × 50 mm form factor allows flexible installation even in confined spaces.

Advantages

• Reliable DeviceNet Connectivity: Ensures stable data transfer between devices in a DeviceNet network.
• Compact and Space-Saving: Small footprint enables easy routing and installation in panels.
• Industrial-Grade Durability: Designed to withstand vibration, temperature variations, and industrial noise.
• Seamless Integration: Fully compatible with Allen-Bradley DeviceNet nodes, I/O modules, and controllers.
• Easy Installation: Snap-in and secure connection reduces wiring errors and installation time.
• Maintenance-Friendly: Modular design allows quick replacement without disrupting the network.

Technical FAQs

1. Q: How many pins does the 1787-PLUG10R support?
   A: It supports a standard 10-pin DeviceNet configuration.
2. Q: Can it be used in high-vibration environments?
   A: Yes, industrial-grade construction ensures stable performance under vibration.
3. Q: What is the operating temperature range?
   A: Continuous operation from -20°C to 70°C.
4. Q: Is it compatible with other DeviceNet devices?
   A: Yes, fully compatible with all standard DeviceNet nodes, I/O modules, and PLCs.
5. Q: Does it require any special tools for installation?
   A: No special tools are required; simple snap-in and locking mechanisms ensure secure connections.
6. Q: Can multiple connectors be installed in a panel?
   A: Yes, compact design allows multiple units in high-density panels.
7. Q: How does it improve network reliability?
   A: Provides consistent electrical connections, reducing data errors and communication interruptions.
8. Q: Is it suitable for field wiring?
   A: Yes, designed for both panel and field applications where durable DeviceNet connections are needed.
9. Q: Can it handle DeviceNet power and signal simultaneously?
   A: Yes, supports standard DeviceNet power and data lines without interference.
10. Q: How easy is maintenance or replacement?
    A: Modular and labeled design allows quick replacement without disturbing adjacent connections.
