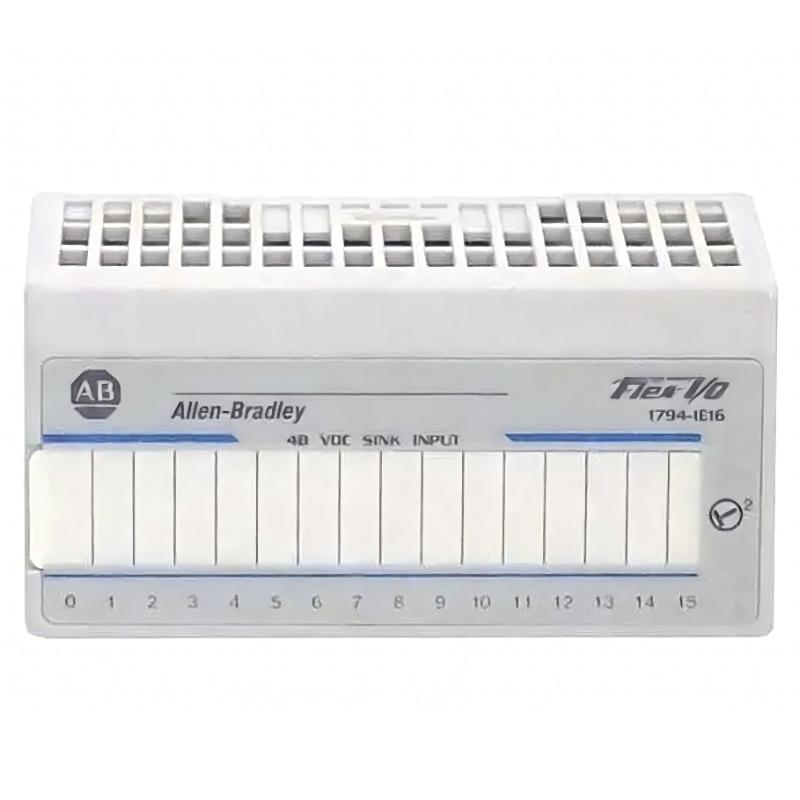

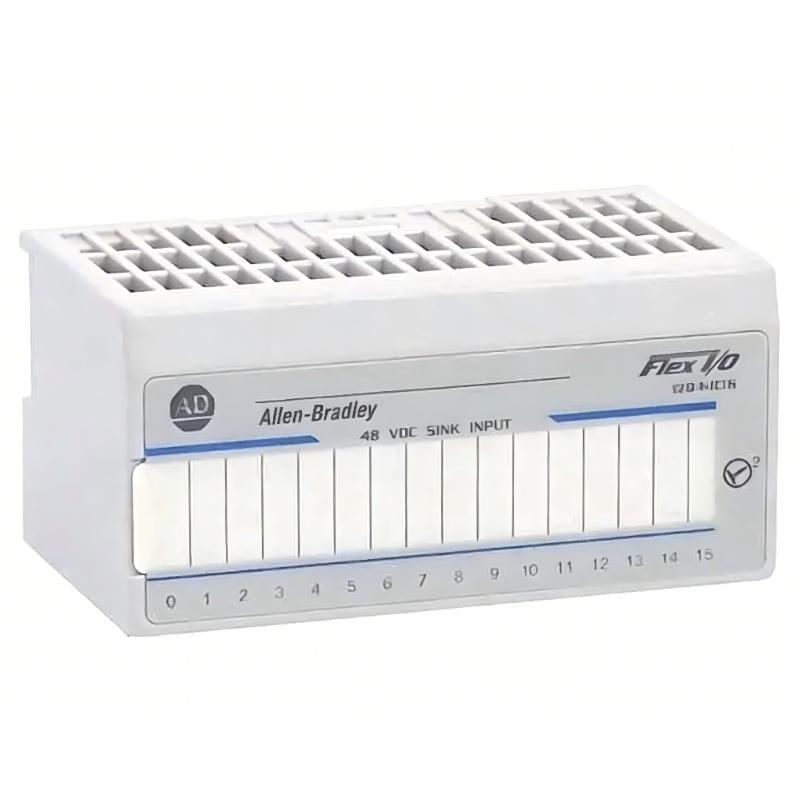

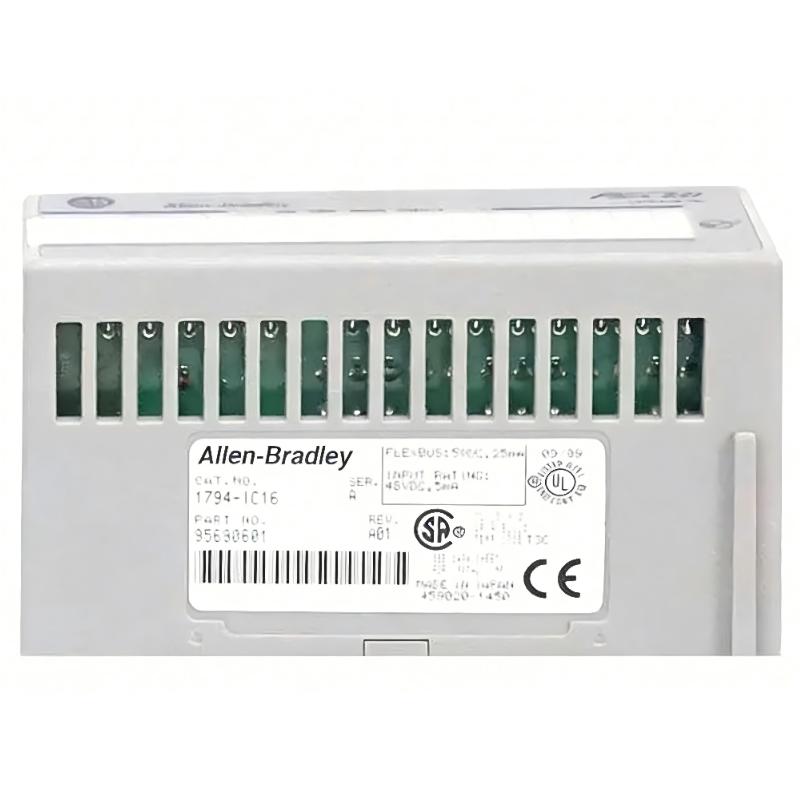

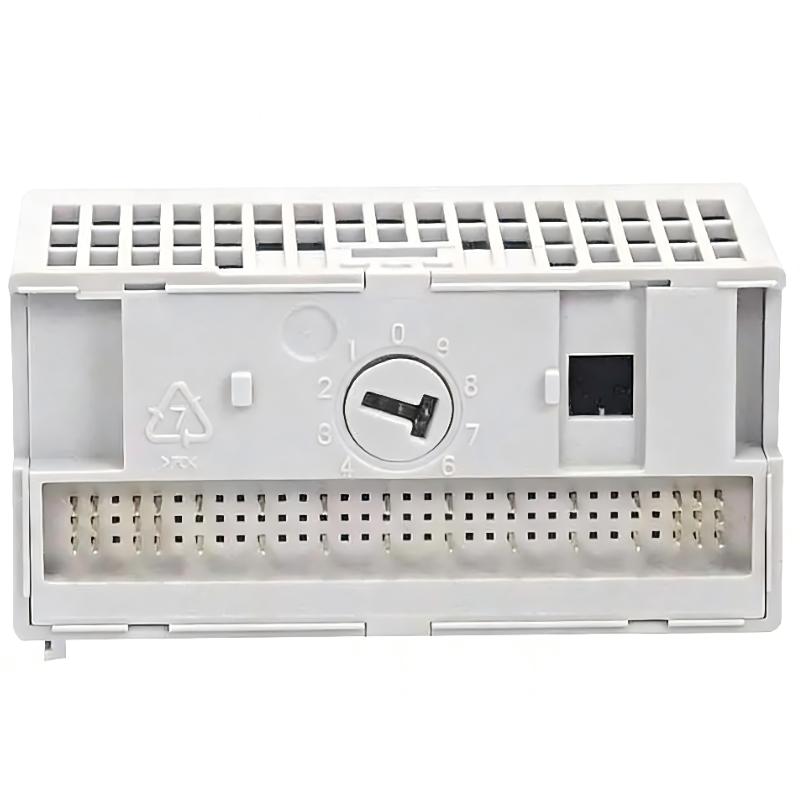

The Allen Bradley 1794-IC16 is a FLEX I/O digital input module designed to provide 16 sinking input channels for industrial automation systems requiring reliable 48V DC signal acquisition. It is part of the FLEX I/O platform and is commonly used in distributed control architectures where modular expansion, flexible wiring, and stable field signal monitoring are essential.
Despite its similar naming to other FLEX input modules, the 1794-IC16 is typically associated with 48V DC input applications, making it suitable for specific industrial environments where higher-voltage DC control signals are used.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Allen Bradley (Rockwell Automation) |
| Model Number | 1794-IC16 |
| Product Family | FLEX I/O |
| Module Type | Digital Input Module |
| Input Channels | 16 sinking inputs |
| Nominal Input Voltage | 48V DC |
| Input Voltage Range | 48V DC nominal (operating range around 48V DC systems) |
| Input Type | Sinking (non-isolated group inputs) |
| Input Configuration | Non-isolated 16-point input group |
| Input Current | Approx. 5–15 mA depending on field device |
| Backplane Power | 5V DC via FLEX I/O system |
| FlexBus Current Draw | Approx. 20–30 mA |
| Power Dissipation | Approx. 4–6 W |
| Isolation Voltage | Industrial field-to-backplane isolation (module-level) |
| Diagnostics | 16-point LED status indicators |
| Compatible Terminal Bases | 1794-TB3 / TB3S / TB3K series |
| Mounting Type | DIN rail FLEX I/O base system |
| Operating Temperature | 0°C to 55°C |
| Protection Class | IP20 |
Physical Dimensions & Weight (L × W × H Combined)
| Parameter | Specification |
|---|---|
| Dimensions (L × W × H) | 94 × 94 × 69 mm |
| Weight | Approx. 0.10–0.12 kg |
Recommended Related Models
The 1794-IC16 is typically used in FLEX I/O systems alongside other digital and analog modules depending on application requirements.
| Related Model | Description |
|---|---|
| 1794-IB16 | 24V DC digital input module |
| 1794-IB32 | 32-point digital input module |
| 1794-OB16 | Digital output module |
| 1794-IA16 | 120V AC input module |
| 1794-IE8 | Analog input module |
| 1794-OE4 | Analog output module |
| 1794-TB3 | Terminal base unit |
| 1794-AENT | EtherNet/IP adapter |
| 1794-AENTR | Redundant EtherNet/IP adapter |
| 1794-ACN15 | ControlNet adapter |
