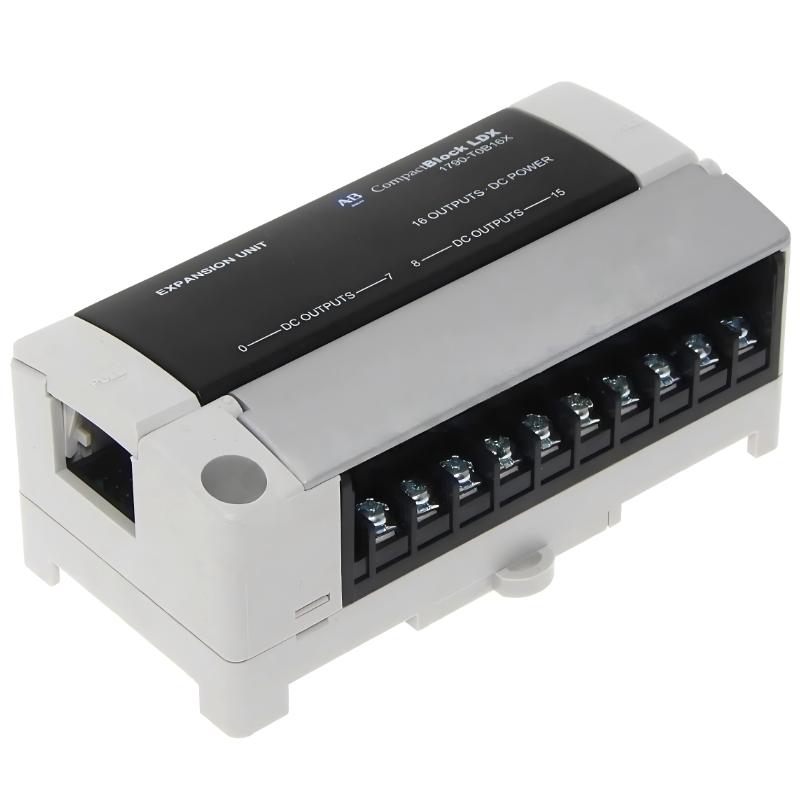

Allen Bradley 1790-T0B16X CompactBlock LDX I/O Extension Block

Applications

The Allen-Bradley 1790-T0B16X CompactBlock LDX I/O Extension Block is designed to expand digital and analog I/O capacity for CompactBlock LDX systems in industrial automation applications. Typical applications include:

• Expanding I/O channels in CompactBlock LDX distributed I/O systems
• Integration with CompactBlock LDX controllers for factory automation
• Connecting sensors, actuators, and field devices to the control network
• Panel installations requiring modular and compact I/O expansion
• Industrial environments demanding reliable, low-latency I/O performance

Its compact 104 × 42 × 52 mm design ensures efficient space usage while allowing flexible system expansion.

Advantages

• Seamless I/O Expansion: Quickly adds additional channels to existing CompactBlock LDX systems.
• Compact and Space-Saving: Minimal footprint allows installation in tight control panels.
• Industrial-Grade Durability: Designed to withstand vibration, temperature fluctuations, and EMI/RFI interference.
• Plug-and-Play Integration: Fully compatible with Allen-Bradley CompactBlock LDX modules for fast system expansion.
• Maintenance-Friendly: Modular design simplifies replacement and reduces downtime.
• High Reliability: Ensures consistent communication and data integrity in industrial networks.

Technical FAQs

1. Q: How many I/O channels does the 1790-T0B16X support?
   A: Designed to extend the number of I/O points in a CompactBlock LDX system, supporting up to 16 additional channels.
2. Q: Is it compatible with existing CompactBlock LDX controllers?
   A: Yes, fully compatible with all standard CompactBlock LDX controllers.
3. Q: Can it operate in harsh industrial environments?
   A: Yes, industrial-grade design ensures operation under vibration, temperature fluctuations, and electrical noise.
4. Q: How is it connected to the main I/O system?
   A: It connects directly via the CompactBlock LDX backplane or fieldbus interface.
5. Q: Does it require additional power?
   A: No, it draws power from the existing CompactBlock LDX system.
6. Q: Can multiple extension blocks be used together?
   A: Yes, multiple 1790-T0B16X units can be daisy-chained to increase I/O capacity.
7. Q: What is the operating temperature range?
   A: Continuous operation from -20°C to 60°C.
8. Q: Does it provide any diagnostic capabilities?
   A: Yes, supports system diagnostics through the CompactBlock LDX controller.
9. Q: How does it improve system flexibility?
   A: Provides modular and scalable I/O expansion without redesigning the control system.
10. Q: How easy is maintenance and replacement?
    A: Modular plug-and-play design allows quick replacement without disrupting other modules.
