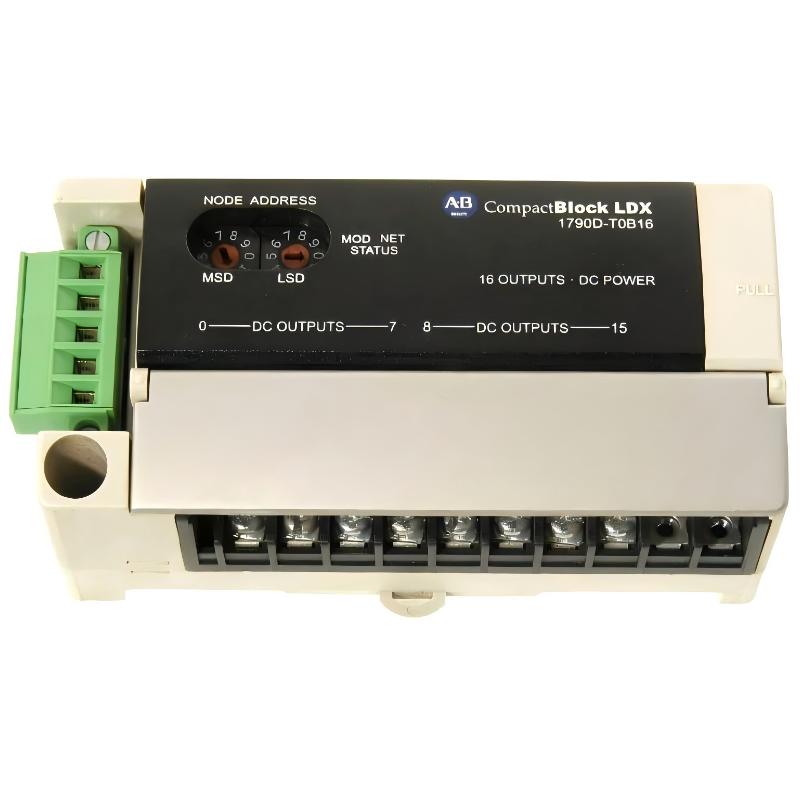

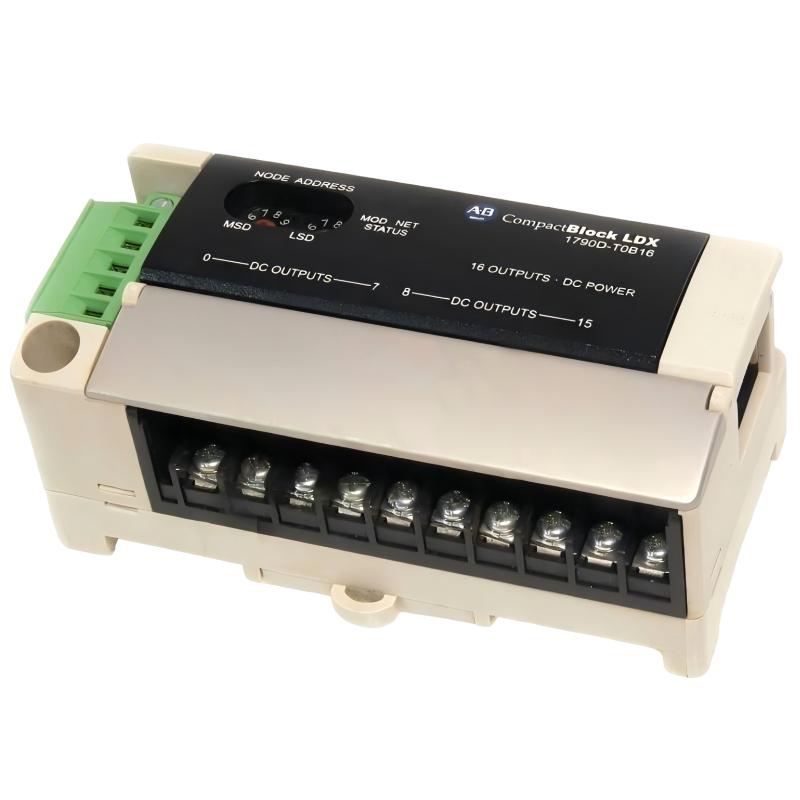

Allen Bradley 1790D-T0B16 CompactBlock LDX I/O Basic Module

Applications

The Allen-Bradley 1790D-T0B16 CompactBlock LDX I/O Basic Module is designed as the foundation for distributed I/O systems in industrial automation. Typical applications include:

• Serving as the primary I/O interface in CompactBlock LDX distributed systems
• Connecting digital and analog field devices to PLCs and controllers
• Industrial control panels where modular and scalable I/O is needed
• Factory automation requiring precise, low-latency I/O control
• Environments demanding reliable signal integrity under vibration, temperature, and electrical noise

Its compact 104 × 42 × 52 mm footprint allows flexible installation in panels or DIN rail systems.

Advantages

• Reliable I/O Performance: Provides consistent communication and control for connected devices.
• Compact and Modular Design: Space-efficient form factor allows scalable I/O expansions.
• Industrial-Grade Durability: Built to resist vibration, temperature variations, and EMI/RFI interference.
• Seamless Integration: Fully compatible with Allen-Bradley CompactBlock LDX extension blocks and controllers.
• Plug-and-Play Installation: Quick setup reduces panel wiring time and installation errors.
• Maintenance-Friendly: Modular design allows easy replacement without affecting the rest of the system.

Technical FAQs

1. Q: What type of I/O does the 1790D-T0B16 support?
   A: Provides digital and analog I/O for CompactBlock LDX systems.
2. Q: How many channels are available in this basic module?
   A: Supports up to 16 I/O points per module.
3. Q: Is it compatible with extension blocks?
   A: Yes, fully compatible with CompactBlock LDX extension modules like the 1790-T0B16X.
4. Q: What is the operating temperature range?
   A: Designed for continuous operation from -20°C to 60°C.
5. Q: Can multiple basic modules be used in a system?
   A: Yes, multiple modules can be connected to expand I/O capacity as needed.
6. Q: How is it mounted?
   A: Supports panel or DIN rail mounting for versatile installation.
7. Q: Does it provide diagnostic features?
   A: Yes, system diagnostics are supported via the CompactBlock LDX controller.
8. Q: Can it operate in high-vibration industrial environments?
   A: Yes, industrial-grade design ensures reliable operation under mechanical stress.
9. Q: How does it maintain signal integrity?
   A: Designed for low-latency, high-reliability signal transmission within the CompactBlock LDX system.
10. Q: How easy is maintenance or replacement?
    A: Modular design allows quick replacement without disturbing other modules or the system.
