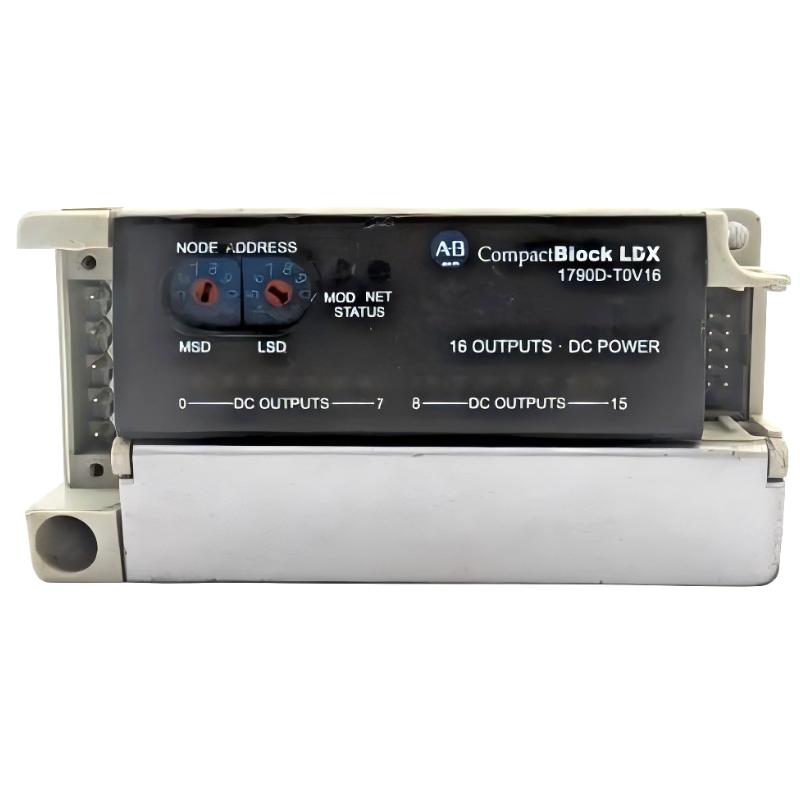

Allen Bradley 1790D-T0V16 CompactBlock LDX I/O Basic Module
Allen Bradley 1790D-T0V16 CompactBlock LDX I/O Basic Module
0.0
Points
Brand:Allen Bradley PLC Item No.:1790D-T0V16 Product Origin:USA Product Dimensions:104 x 42 x 52 mm Product Weight:0.1 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 1790D-T0V16 CompactBlock LDX I/O Basic Module provides a robust foundation for distributed I/O systems, delivering reliable digital and analog signal control in industrial automation applications. Its compact design, durability, and seamless integration make it ideal for scalable and efficient system expansion.
Technical Specifications
Parameter
Specification
Dimensions (L x W x H)
104 × 42 × 52 mm
Weight
0.1 kg (0.22 lb)
I/O Type
Digital/Analog
I/O Channels
16
Operating Temperature
-20°C to 60°C
Humidity
5% – 95% non-condensing
Mounting
Panel or DIN rail
Connectivity
CompactBlock LDX backplane
Compliance
UL, CE
Application
CompactBlock LDX Distributed I/O Systems
Applications
The Allen-Bradley 1790D-T0V16 CompactBlock LDX I/O Basic Module is designed for distributed I/O applications in industrial automation, providing reliable and scalable input/output functionality. Typical applications include:
Serving as the primary I/O interface in CompactBlock LDX systems
Connecting field devices such as sensors, actuators, and switches to PLCs
Factory automation requiring precise digital and analog control
Industrial panels where modular, compact, and scalable I/O solutions are needed
Environments demanding high reliability under vibration, temperature changes, and electrical noise
Its compact 104 × 42 × 52 mm form factor allows efficient installation in panels or DIN rail systems.
Advantages
Reliable I/O Performance: Provides consistent communication and control for connected devices.
Compact and Modular Design: Small footprint allows for scalable system expansion.
Industrial-Grade Durability: Resistant to vibration, temperature fluctuations, and electrical interference.
Seamless Integration: Fully compatible with other CompactBlock LDX extension modules and controllers.
Plug-and-Play Installation: Quick and error-free setup reduces wiring time.
Maintenance-Friendly: Modular construction allows fast replacement without disrupting system operation.
Technical FAQs
Q: How many I/O channels does the 1790D-T0V16 support? A: This module supports 16 I/O points for digital and analog signals.
Q: Is it compatible with other CompactBlock LDX modules? A: Yes, it integrates seamlessly with extension blocks and LDX controllers.
Q: Can it operate in high-vibration industrial environments? A: Yes, it is designed for reliability in harsh industrial conditions.
Q: What is the operating temperature range? A: Continuous operation from -20°C to 60°C.
Q: How is it mounted? A: Supports panel and DIN rail mounting.
Q: Does it require an external power supply? A: No, it draws power from the CompactBlock LDX system.
Q: Can multiple modules be daisy-chained? A: Yes, multiple modules can be connected to expand I/O capacity.
Q: Does it provide diagnostic capabilities? A: Yes, system diagnostics are available via the CompactBlock LDX controller.
Q: How does it maintain signal integrity? A: Low-latency, industrial-grade design ensures reliable communication and minimal data loss.
Q: How easy is maintenance or replacement? A: Modular plug-and-play design allows fast replacement without disturbing other modules.
