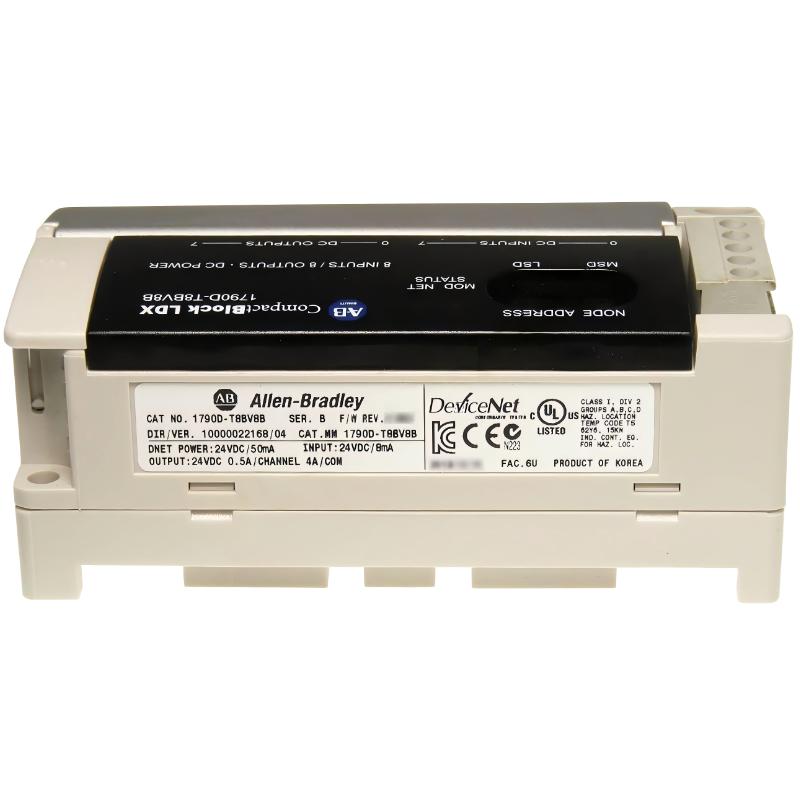

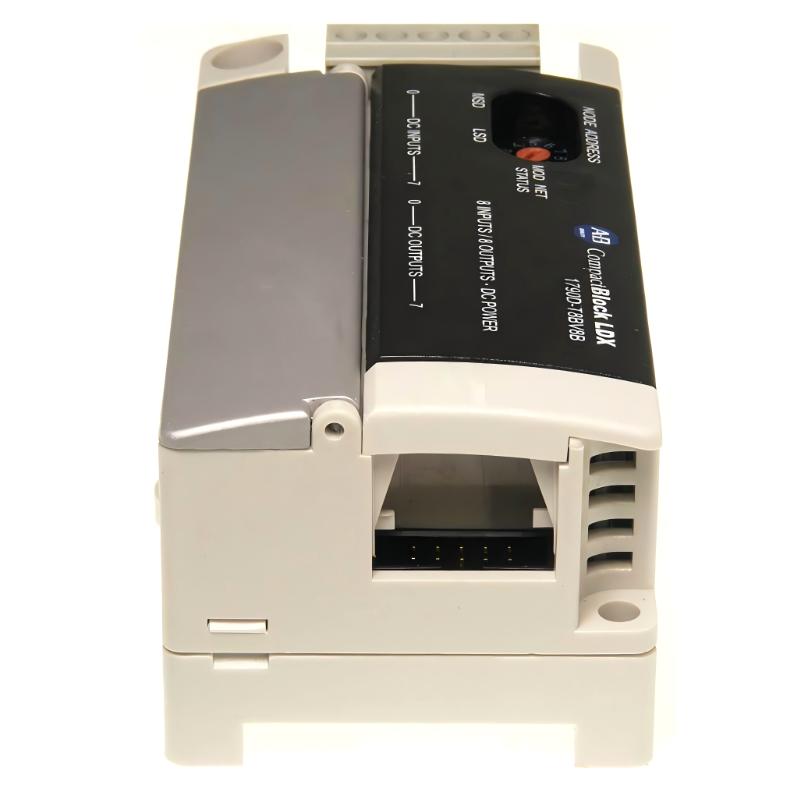

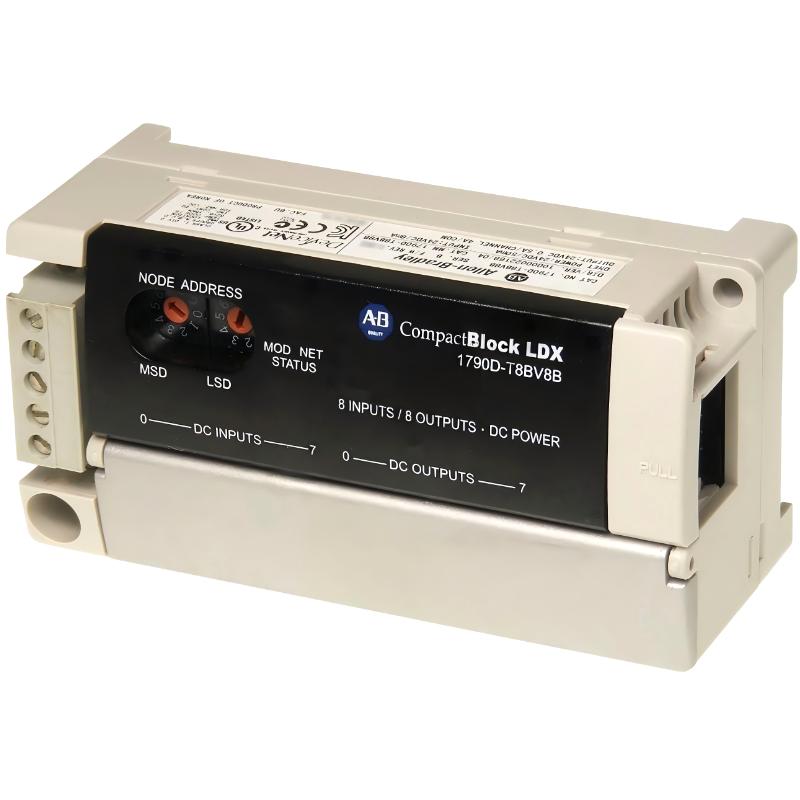

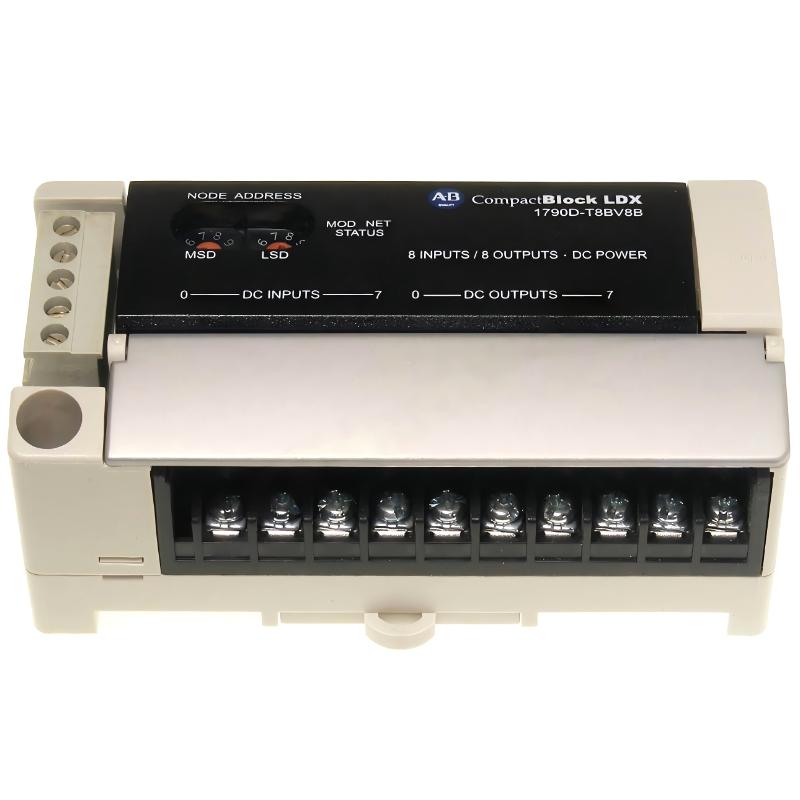

Allen Bradley 1790D-T8BV8B CompactBlock LDX I/O Basic Module

Applications

The Allen-Bradley 1790D-T8BV8B CompactBlock LDX I/O Basic Module is engineered for compact, modular, and reliable I/O integration in industrial automation systems. Typical applications include:

• Acting as a foundational I/O module in CompactBlock LDX distributed systems
• Connecting a combination of digital and analog devices such as sensors, switches, and transducers
• Factory automation environments that require precise, low-latency I/O control
• Control panels where modular and scalable I/O solutions are needed
• Harsh industrial environments with vibration, temperature variations, and electrical interference

Its compact 104 × 42 × 52 mm form factor enables installation in tight panels or DIN rail setups.

Advantages

• Balanced I/O Channels: Combines digital and analog I/O channels for versatile control.
• Compact and Modular: Space-efficient design allows system expansion without increasing panel size.
• Industrial-Grade Reliability: Resistant to vibration, temperature fluctuations, and EMI/RFI interference.
• Seamless Integration: Fully compatible with other CompactBlock LDX modules and controllers.
• Plug-and-Play Setup: Simplifies installation and reduces wiring errors.
• Maintenance-Friendly: Modular design allows fast replacement without affecting system operation.

Technical FAQs

1. Q: How many I/O channels does the 1790D-T8BV8B support?
   A: Provides 16 I/O points: 8 digital and 8 analog channels.
2. Q: Is it compatible with other CompactBlock LDX modules?
   A: Yes, fully integrates with extension blocks and CompactBlock LDX controllers.
3. Q: Can it operate in high-vibration environments?
   A: Yes, designed for reliable performance in harsh industrial conditions.
4. Q: What is the operating temperature range?
   A: Continuous operation from -20°C to 60°C.
5. Q: How is the module mounted?
   A: Supports DIN rail and panel mounting.
6. Q: Does it require an external power supply?
   A: No, it draws power from the CompactBlock LDX backplane.
7. Q: Can multiple modules be daisy-chained?
   A: Yes, multiple modules can be connected to expand overall system I/O capacity.
8. Q: Does it provide diagnostics?
   A: Yes, system diagnostics are available via the CompactBlock LDX controller.
9. Q: How does it ensure signal integrity?
   A: Industrial-grade low-latency design ensures accurate and consistent signal transmission.
10. Q: How easy is maintenance or replacement?
    A: Modular plug-and-play design allows quick replacement without affecting other modules.
