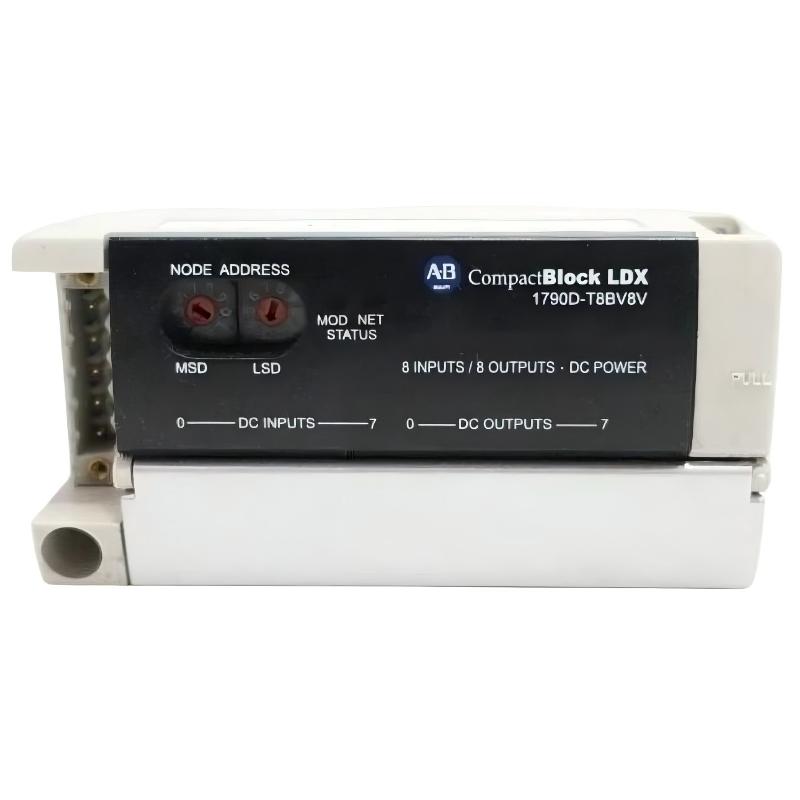

Allen Bradley 1790D-T8BV8V DeviceNet Digital Base Terminal Block

Applications

The Allen-Bradley 1790D-T8BV8V DeviceNet Digital Base Terminal Block is engineered for efficient, reliable digital input integration in DeviceNet-based CompactBlock LDX distributed systems. Typical applications include:

• Acting as a base terminal block for DeviceNet LDX systems
• Connecting digital field devices such as switches, push buttons, and sensors
• Factory automation requiring precise, low-latency digital signal acquisition
• High-density control panels where modular and scalable I/O solutions are needed
• Industrial environments with vibration, temperature fluctuations, and electrical interference

Its compact 104 × 42 × 52 mm form factor enables installation in DIN rail or panel-mounted setups.

Advantages

• Digital I/O Focus: Optimized for handling multiple digital input channels efficiently.
• Compact and Modular: Small footprint allows for scalable system expansion.
• Industrial-Grade Reliability: Designed to withstand vibration, EMI/RFI interference, and temperature changes.
• Seamless DeviceNet Integration: Fully compatible with DeviceNet LDX controllers and modules.
• Plug-and-Play Setup: Reduces wiring complexity and installation errors.
• Maintenance-Friendly: Modular design allows quick replacement without disrupting other modules.

Technical FAQs

1. Q: How many digital input channels does the 1790D-T8BV8V support?
   A: Supports 8 digital input channels.
2. Q: Is it compatible with other CompactBlock LDX DeviceNet modules?
   A: Yes, fully compatible with DeviceNet LDX controllers and extension modules.
3. Q: Can it operate in high-vibration industrial environments?
   A: Yes, engineered for reliable performance in harsh industrial conditions.
4. Q: What is the operating temperature range?
   A: Continuous operation from -20°C to 60°C.
5. Q: How is the module mounted?
   A: Supports panel and DIN rail mounting.
6. Q: Does it require an external power supply?
   A: No, it draws power from the DeviceNet LDX backplane.
7. Q: Can multiple modules be daisy-chained for system expansion?
   A: Yes, multiple modules can be connected to increase I/O capacity.
8. Q: Does it support diagnostics?
   A: Yes, diagnostics are available through the DeviceNet LDX controller.
9. Q: How does it maintain signal integrity?
   A: Industrial-grade design ensures low-latency, accurate digital signal processing.
10. Q: How easy is maintenance or replacement?
    A: Modular plug-and-play design allows fast replacement without affecting other modules.
