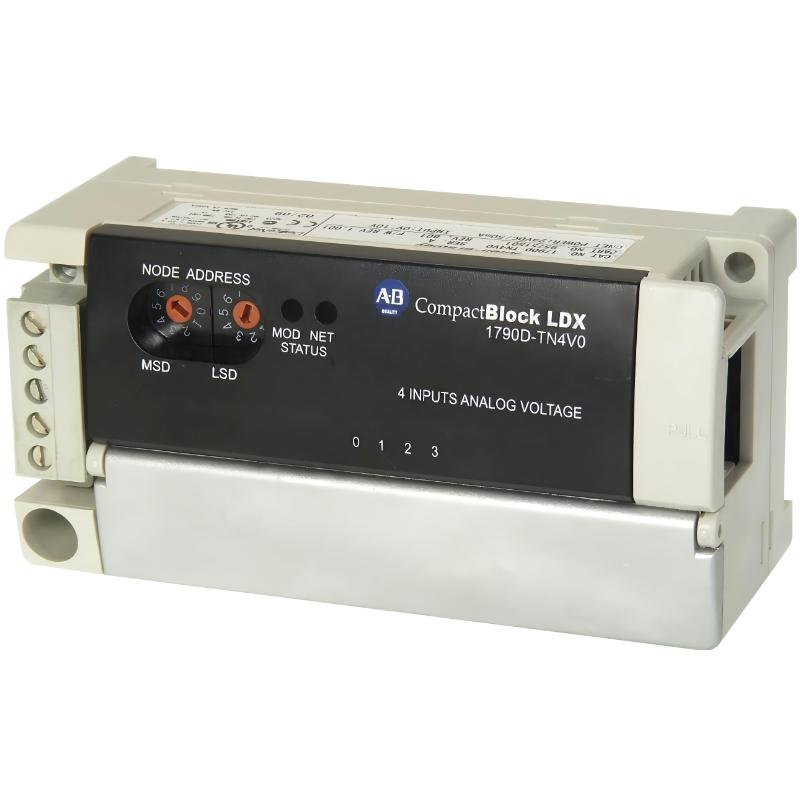

Allen Bradley 1790D-TN4V0 CompactBlock LDX I/O Basic Module

Applications

The Allen-Bradley 1790D-TN4V0 CompactBlock LDX I/O Basic Module is a reliable and compact solution for distributed I/O systems in industrial automation. Typical applications include:

• Serving as a foundational I/O module in CompactBlock LDX distributed systems
• Connecting a variety of digital and analog field devices such as sensors, switches, and transducers
• Factory automation requiring precise, low-latency signal acquisition
• Control panels where modular and scalable I/O solutions are necessary
• Industrial environments with vibration, temperature variations, and electrical noise

Its 104 × 42 × 52 mm compact form factor allows for efficient panel or DIN rail installation.

Advantages

• Reliable I/O Performance: Provides stable and accurate handling of digital and analog signals.
• Compact and Modular Design: Space-efficient, enabling scalable system expansion without increasing panel size.
• Industrial-Grade Durability: Resistant to vibration, temperature fluctuations, and EMI/RFI interference.
• Seamless Integration: Fully compatible with other CompactBlock LDX modules and controllers.
• Plug-and-Play Installation: Quick setup reduces wiring errors and installation time.
• Maintenance-Friendly: Modular construction allows fast replacement without interrupting other modules.

Technical FAQs

1. Q: How many I/O channels does the 1790D-TN4V0 support?
   A: Supports a total of 4 digital/analog channels depending on configuration.
2. Q: Is it compatible with other CompactBlock LDX modules?
   A: Yes, fully integrates with extension blocks and CompactBlock LDX controllers.
3. Q: Can it operate in high-vibration industrial environments?
   A: Yes, designed to ensure reliable operation in harsh conditions.
4. Q: What is the operating temperature range?
   A: Continuous operation from -20°C to 60°C.
5. Q: How is the module mounted?
   A: Supports DIN rail or panel mounting for flexible installation.
6. Q: Does it require an external power supply?
   A: No, it draws power from the CompactBlock LDX backplane.
7. Q: Can multiple modules be connected to expand I/O capacity?
   A: Yes, multiple modules can be daisy-chained for system expansion.
8. Q: Does it provide diagnostic capabilities?
   A: Yes, system diagnostics are available through the CompactBlock LDX controller.
9. Q: How does it maintain signal integrity?
   A: Industrial-grade low-latency design ensures consistent and accurate communication.
10. Q: How easy is maintenance or replacement?
    A: Modular plug-and-play design allows quick replacement without affecting other modules.
