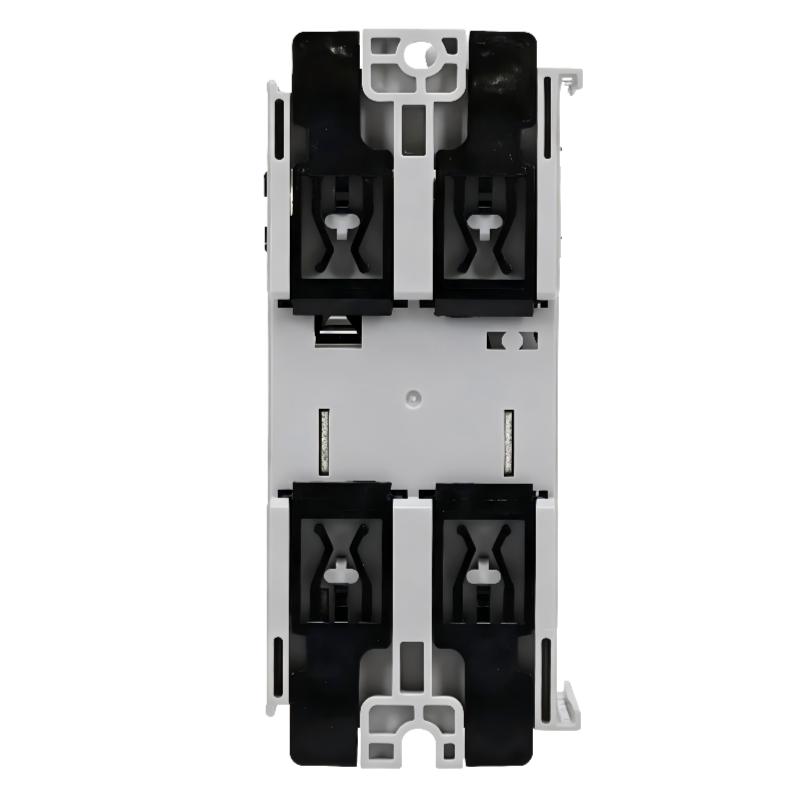

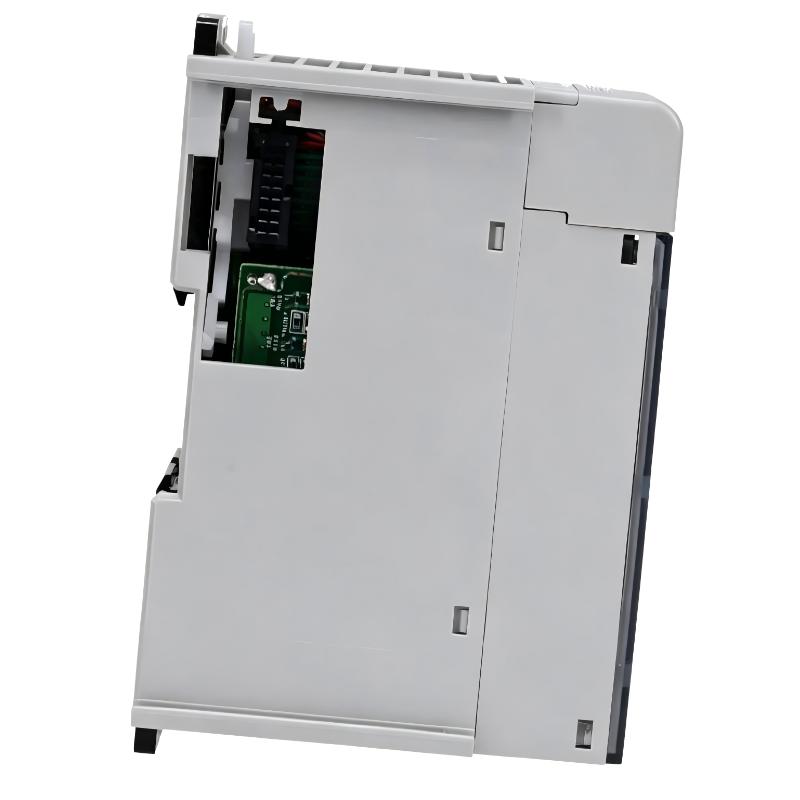

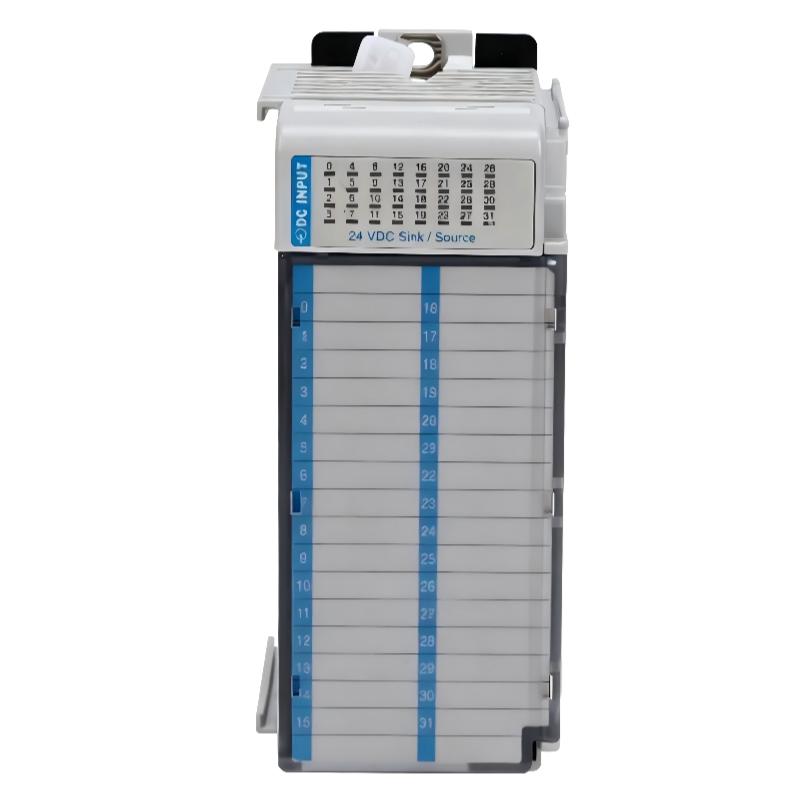

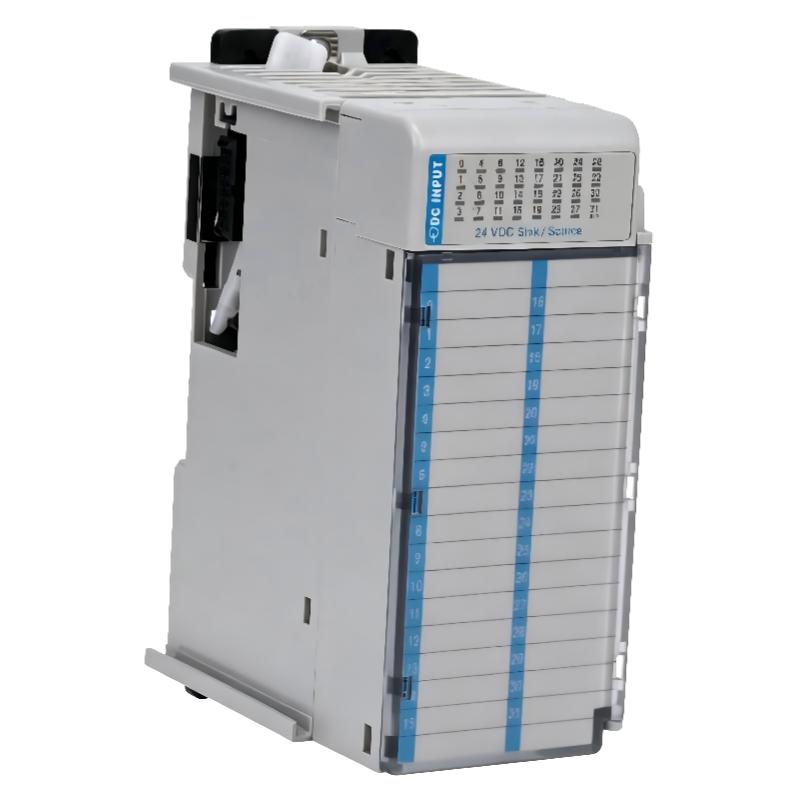

Allen Bradley 1769-IQ32K CompactLogix 32-point DC sink/source Input Module

Applications

• CompactLogix PLC digital input expansion systems
Used to increase high-density digital input capacity within Allen-Bradley CompactLogix control platforms for large-scale automation projects.

• Industrial machine control systems
Commonly applied in packaging, assembly lines, and material handling systems requiring fast and reliable discrete signal acquisition.

• Power and utility automation
Supports monitoring of field devices such as breakers, relays, and status switches in electrical distribution systems.

• Process manufacturing environments
Used for collecting on/off signals from sensors in chemical, food & beverage, and continuous process industries.

• OEM machine integration
Ideal for machine builders requiring compact, high-channel-count input modules within limited control cabinet space.

Advantages

• High-density 32-point input design
Enables efficient use of rack space while maximizing the number of field signal connections.

• Flexible sink/source configuration
Supports both sinking and sourcing DC input wiring for broader field device compatibility.

• CompactLogix system integration
Designed for seamless operation within Rockwell Automation CompactLogix architecture.

• Fast and stable signal response
Ensures reliable detection of field device state changes in industrial environments.

• Modular expansion capability
Allows easy scaling of control systems without major redesign of existing I/O architecture.

• Industrial robustness
Built for stable performance in electrically noisy and high-demand automation environments.

Technical FAQs

Q1: What is the main function of the 1769-IQ32K module?
It collects 32 discrete DC input signals from field devices into a CompactLogix PLC system.

Q2: Does it support both sinking and sourcing inputs?
Yes, it supports flexible DC sink/source wiring configurations.

Q3: What type of signals does it accept?
It accepts 24V DC digital input signals from sensors, switches, and field devices.

Q4: How many input channels does it provide?
It provides 32 independent digital input channels.

Q5: Is it compatible with all CompactLogix controllers?
It is compatible with supported CompactLogix and Compact I/O architectures.

Q6: Can it be used in harsh environments?
Yes, it is designed for industrial environments with electrical noise and vibration.

Q7: Does it process signals internally?
No, it only reads field input states and transmits them to the PLC backplane.

Q8: Is it hot-swappable?
It depends on system configuration, but typically removal requires controlled shutdown.

Q9: What is the typical installation method?
It is mounted on a CompactLogix 1769 system backplane within a control cabinet.

Q10: What happens if one channel fails?
Only the affected input channel is lost; the rest of the module continues operating.
