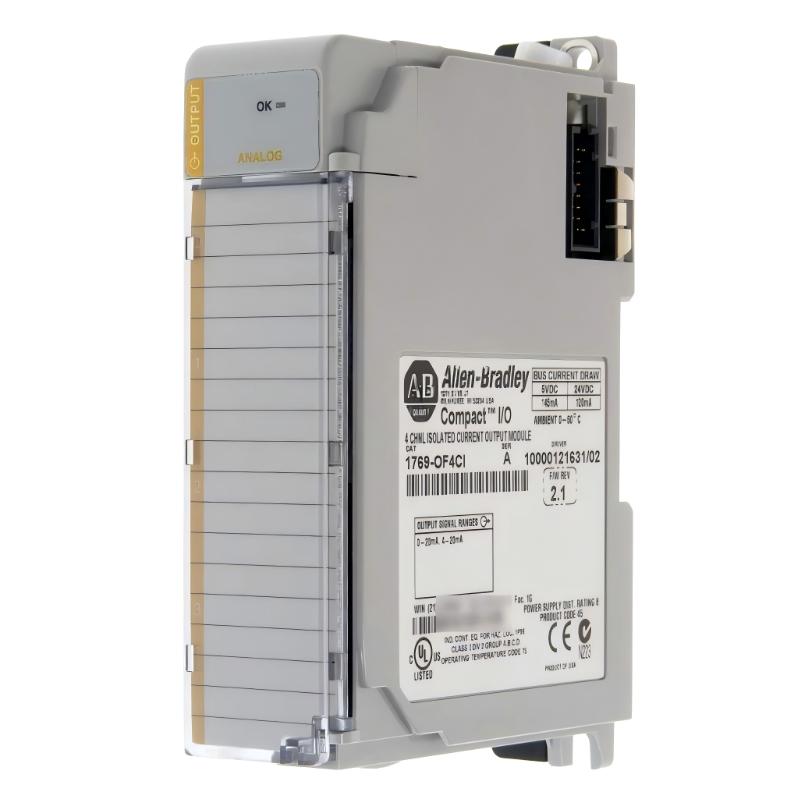

Allen Bradley 1769-OF4CI CompactLogix Compact Isolated Analog Output Module

Applications

• Process control analog output regulation
Used to provide precise 4–20 mA or 0–20 mA control signals to actuators, valves, and variable control devices in industrial automation systems.

• Power generation and plant automation systems
Commonly applied in turbine control, boiler modulation, and auxiliary process regulation loops requiring stable analog control outputs.

• Industrial machine control systems
Drives proportional devices such as servo valves, pressure regulators, and speed control interfaces in automated machinery.

• Chemical and continuous process industries
Supports accurate analog signal transmission for temperature, flow, level, and pressure control loops.

• OEM equipment and control panel integration
Ideal for machine builders requiring compact isolated analog output channels in space-constrained control cabinets.

• Distributed control system (DCS) signal interface
Provides reliable analog output interfacing within CompactLogix-based automation architectures.

Advantages

• Four-channel isolated output design
Each channel is independently isolated, improving signal stability and reducing electrical noise interference.

• High-precision analog signal control
Delivers accurate current outputs suitable for demanding process control applications.

• Flexible output range support
Supports both 0–20 mA and 4–20 mA industrial standards for broad compatibility.

• CompactLogix system integration
Designed for seamless operation within Allen-Bradley CompactLogix I/O architecture.

• Strong industrial noise immunity
Maintains stable performance in electrically noisy industrial environments.

• Reliable long-term operation
Built for continuous use in harsh automation and process control systems.

Technical FAQs (10)

Q1: What is the main function of the 1769-OF4CI module?
It provides analog current output signals for controlling industrial devices such as valves and actuators.

Q2: How many output channels does it have?
It has 4 individually isolated analog output channels.

Q3: What output signals does it support?
It supports 0–20 mA and 4–20 mA current output ranges.

Q4: Is each channel isolated?
Yes, each channel is individually electrically isolated.

Q5: What systems is it compatible with?
It is designed for Allen-Bradley CompactLogix and Compact I/O systems.

Q6: What type of devices can it control?
It can control proportional valves, actuators, and other analog-controlled industrial devices.

Q7: Is it suitable for harsh environments?
Yes, it is designed for industrial environments with electrical noise and vibration.

Q8: Does it require calibration?
No field calibration is typically required.

Q9: Is it an input or output module?
It is an analog output module.

Q10: What happens if one channel fails?
Only the affected channel is impacted; other channels continue operating normally.
