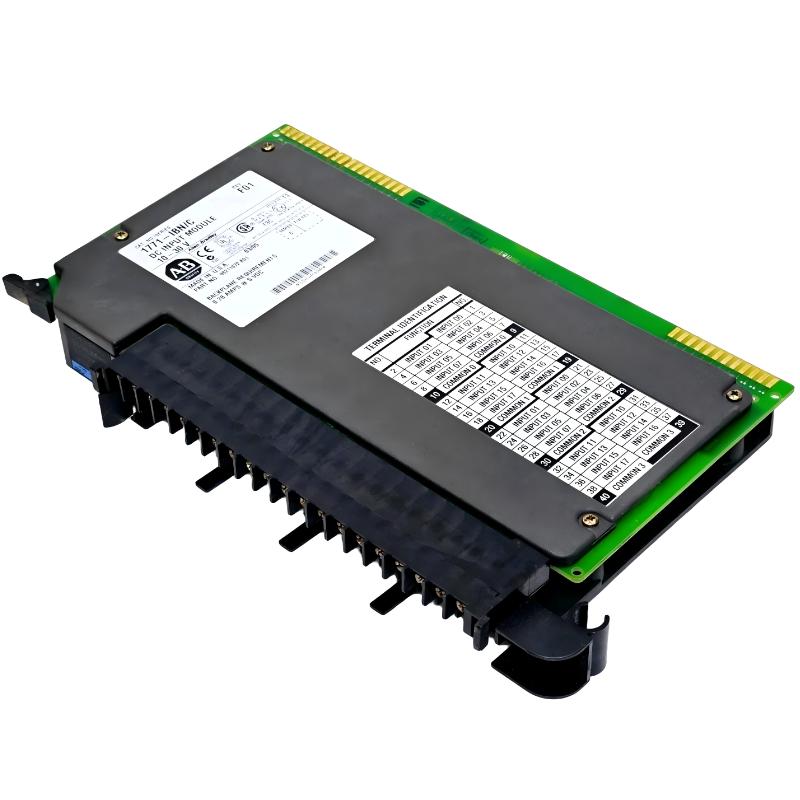

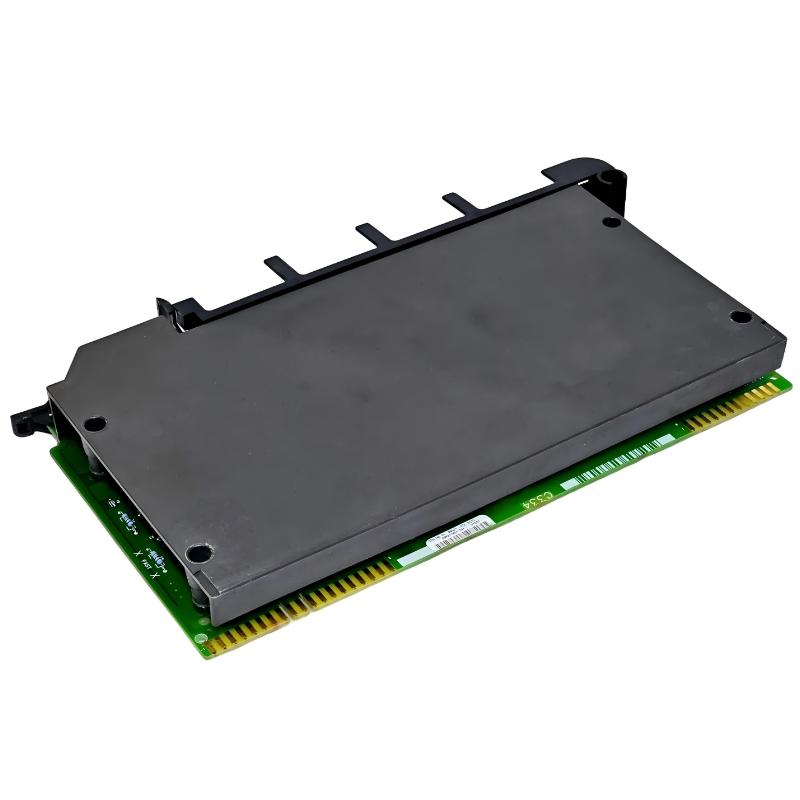

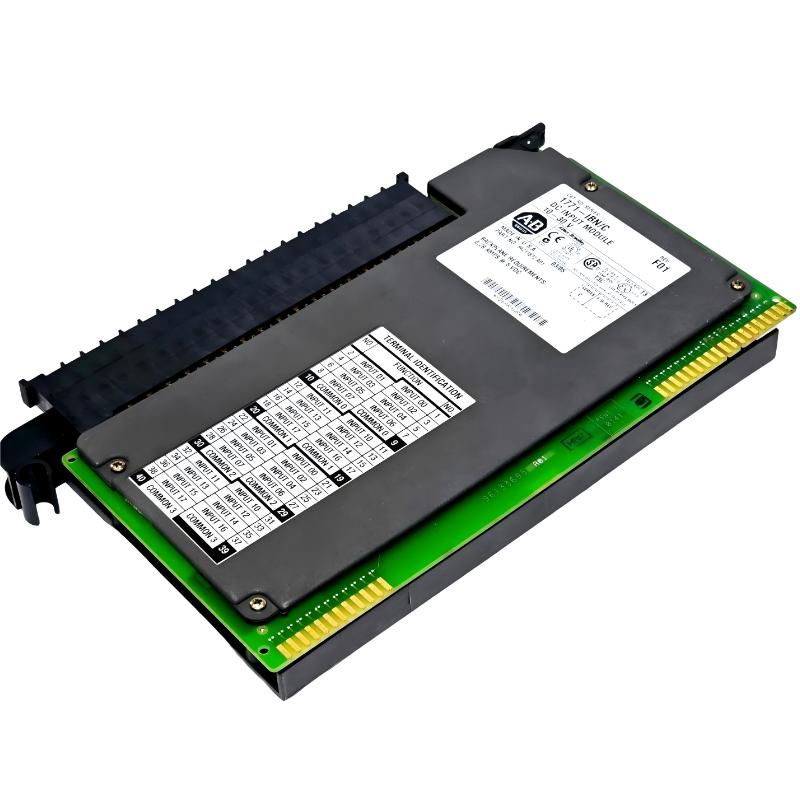

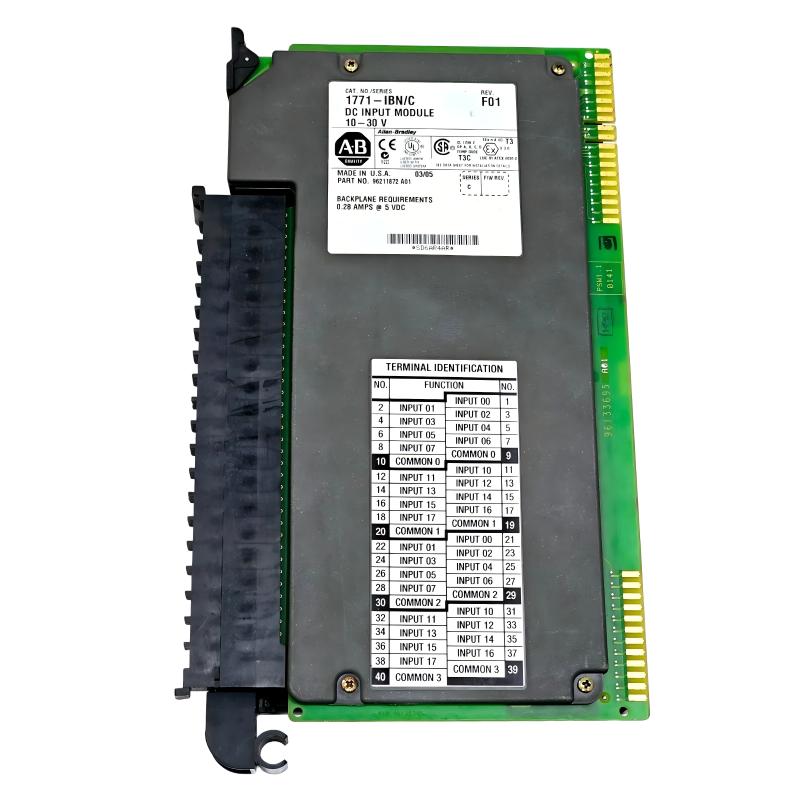

Allen Bradley 1771-IBN/C High-fidelity Input Module

Applications

• PLC-5 and 1771 series discrete input acquisition systems
Used to collect high-density digital signals from field devices such as switches, pushbuttons, and sensor contacts in legacy Allen-Bradley PLC architectures.

• Industrial automation and process control systems
Applied in manufacturing environments where stable and reliable digital signal monitoring is required for machine sequencing and interlocking logic.

• Power plant and utility control systems
Used for monitoring status signals from breakers, relays, and auxiliary equipment in generation and distribution facilities.

• Large-scale industrial machinery control
Supports input signal handling for complex machines requiring multiple synchronized control points.

• Retrofit and system extension of legacy PLC installations
Commonly used in maintaining or expanding existing PLC-5 based systems without full platform replacement.

• Remote I/O rack configurations
Functions within 1771 I/O chassis systems for distributed signal collection across industrial sites.

Advantages

• High-density 32-point input capability
Allows efficient collection of large numbers of discrete signals within a single module footprint.

• Industrial noise-resistant design
Engineered for stable operation in electrically noisy environments with strong signal filtering characteristics.

• Reliable PLC-5 system compatibility
Fully integrates with Allen-Bradley 1771 chassis architectures for legacy system continuity.

• Fast and consistent signal response
Typical input filtering ensures stable detection of ON/OFF state transitions in real time control systems.

• Structured input grouping
Inputs are organized in grouped channels for simplified wiring and diagnostics.

• Long lifecycle legacy support
Ideal for maintaining operational continuity of installed base automation systems.

Technical FAQs

Q1: What is the main function of the 1771-IBN/C module?
It provides 32-channel digital input acquisition for PLC-5 and 1771 I/O systems.

Q2: What voltage range does it support?
It operates within a 10–30V DC input range.

Q3: How many inputs does it provide?
It provides 32 discrete input channels grouped into 4 sections of 8.

Q4: Is it an isolated input module?
Yes, it uses optical isolation between field inputs and logic circuits.

Q5: What type of signals can it read?
It reads DC discrete signals from switches, sensors, and dry contacts.

Q6: Is it suitable for modern PLC systems?
It is primarily used in legacy PLC-5 and 1771-based systems.

Q7: Does it include input filtering?
Yes, it includes digital filtering to reduce noise and false triggering.

Q8: What happens if one input fails?
Only the affected channel is impacted; other inputs continue operating normally.

Q9: Can it be used in remote I/O racks?
Yes, it is commonly installed in 1771 remote I/O chassis configurations.

Q10: Is it still manufactured today?
It is generally considered legacy hardware, mainly used for replacement and maintenance.
