Introduction

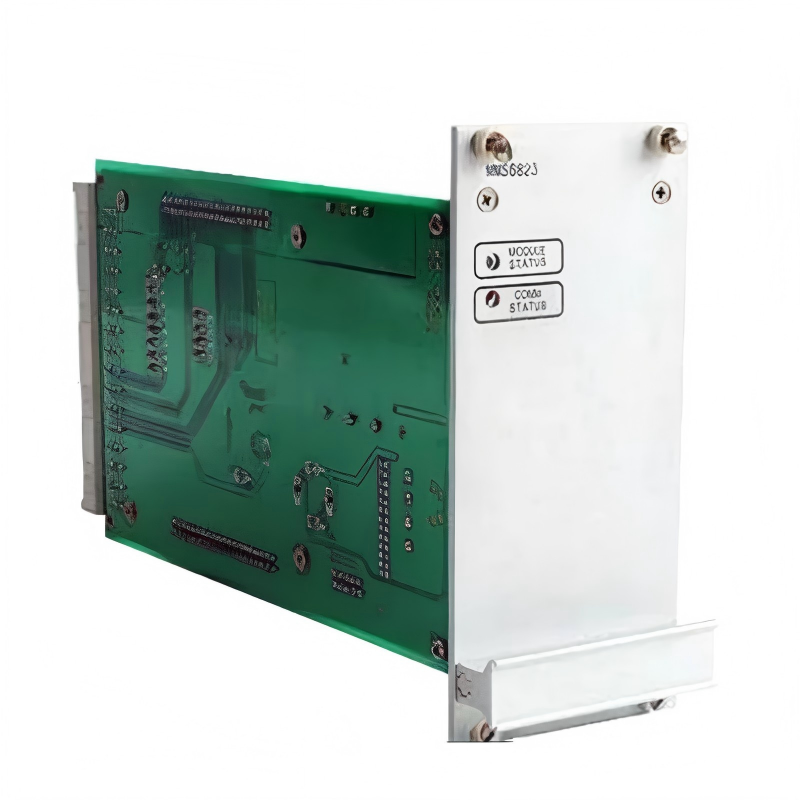

The Epro MMS6823R 9100-00001-06 Displacement Monitoring Module is a high-performance solution for precise displacement monitoring in industrial machinery. Designed for dual-channel input, it provides reliable real-time measurement of linear and rotational movement, enabling predictive maintenance and enhancing machinery safety. Robust, accurate, and easy to integrate, this module is ideal for turbines, compressors, generators, and other critical rotating equipment.

Technical Specifications

Parameter	Specification
Dimensions (L x W x H)	300 × 210 × 100 mm
Weight	0.6 kg (1.32 lb)
Channels	Dual-Channel / Multi-Channel
Function	Displacement Monitoring
Operating Temperature	-20°C to 70°C
Humidity	5% – 95% non-condensing
Mounting	Panel or Machinery Bracket
Connectivity	Analog/Digital/Networked Output
Compliance	CE, Industrial-Grade Standards
Application	Shaft/Rotor Displacement, Condition Monitoring, Predictive Maintenance

Applications

The Epro MMS6823R Displacement Monitoring Module is engineered for precision measurement of linear and rotational displacements in industrial machinery. Typical applications include:

Monitoring shaft, rotor, and turbine displacement in real-time
Integration into predictive maintenance systems to detect abnormal movement
High-accuracy vibration and alignment monitoring for turbines, compressors, and generators
Supporting condition monitoring of critical rotating machinery
Industrial environments requiring robust, reliable, and precise displacement measurement

With its advanced sensing capabilities, this module ensures accurate feedback for machinery performance and safety.

Advantages

High-Precision Monitoring: Accurately detects displacement to prevent mechanical failures.
Large Form Factor for Industrial Integration: 300 × 210 × 100 mm and 0.6 kg (1.32 lb) supports extensive interface and sensor connectivity.
Robust and Durable: Resistant to vibration, temperature fluctuations, and electrical noise.
Predictive Maintenance Ready: Early detection of displacement anomalies reduces unplanned downtime.
Dual-Channel Support: Provides multiple inputs for enhanced monitoring reliability.
Seamless Integration: Compatible with analog, digital, and networked monitoring systems.

Technical FAQs

Q: What type of displacement can MMS6823R measure?
A: Linear and rotational displacement of shafts, rotors, and other machinery components.
Q: Does it support dual-channel or multi-channel monitoring?
A: Yes, it can handle multiple inputs for redundancy and accurate measurement.
Q: What is the operating temperature range?
A: -20°C to 70°C, suitable for demanding industrial conditions.
Q: How is it integrated into control systems?
A: Provides analog, digital, and networked outputs compatible with supervisory systems.
Q: Is it suitable for predictive maintenance programs?
A: Yes, it enables early detection of abnormal displacement trends for preventive action.
Q: How is the module mounted?
A: Supports panel or machinery bracket installation for flexible integration.
Q: Can it withstand industrial vibration and shocks?
A: Yes, designed to operate reliably under harsh mechanical stress.
Q: Can it handle high-speed machinery?
A: Yes, suitable for fast-moving turbines, compressors, and generators.
Q: Are the measurement thresholds configurable?
A: Yes, displacement limits and alarm levels can be customized according to system requirements.
Q: What maintenance is required?
A: Minimal; periodic inspection and calibration ensure continued accuracy and reliability.
