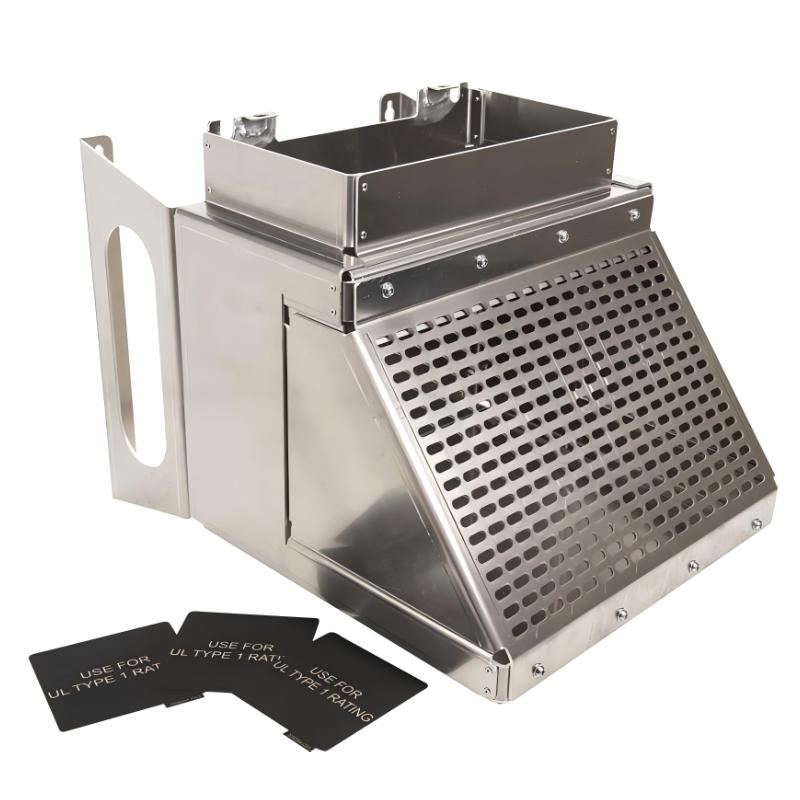

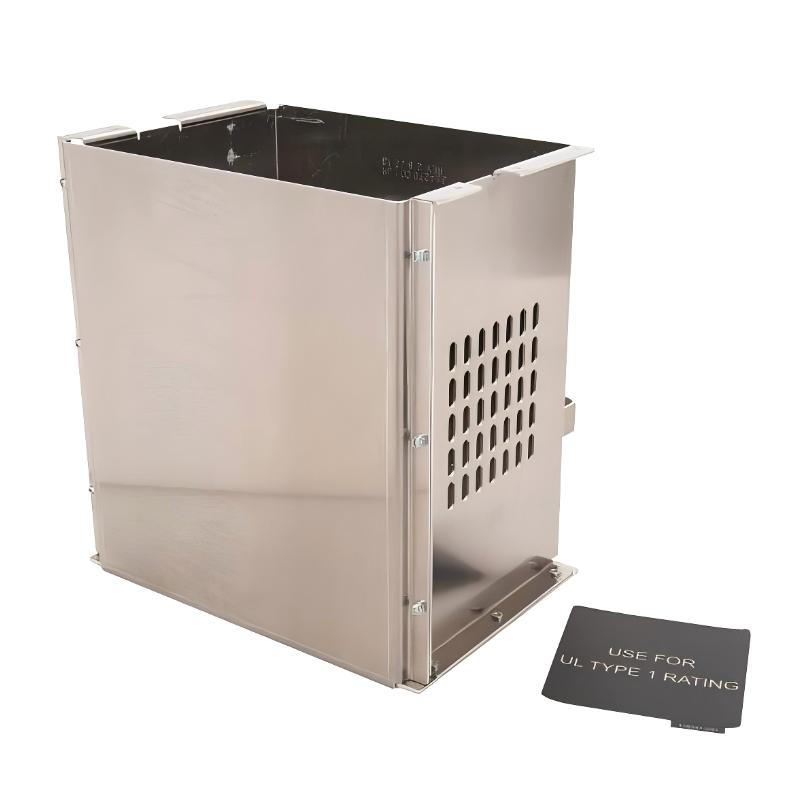

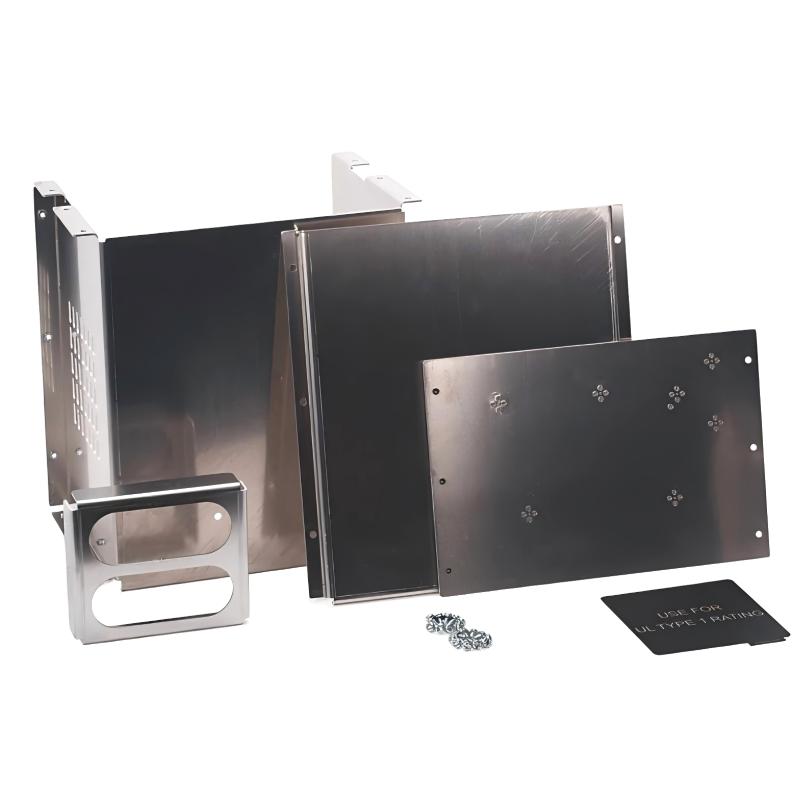

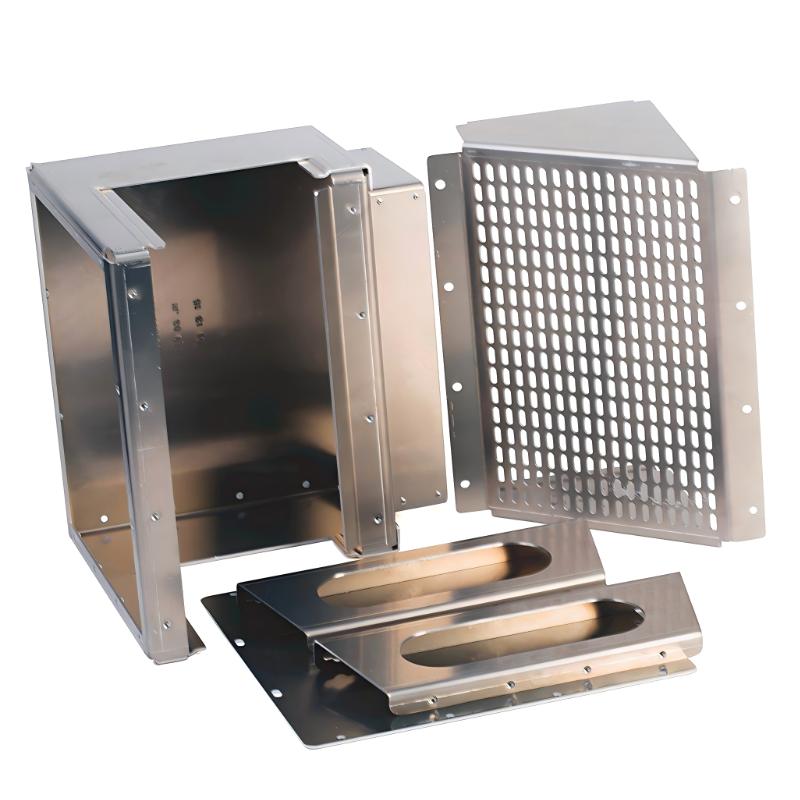

The Allen Bradley 20-750-NEMA1-F7 is a NEMA Type 1 conversion kit specifically engineered for PowerFlex 750-Series AC drives. Designed for Frame 7 drive configurations, this enclosure kit enhances protection against accidental contact, airborne contaminants, and environmental exposure while maintaining efficient cooling performance for industrial drive systems.
The conversion kit is widely used in industrial control panels and automation systems where additional enclosure protection is required for indoor installations. Its factory-designed compatibility with PowerFlex 753 and PowerFlex 755 drives ensures simplified installation, reliable fitment, and professional-grade enclosure integration.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Allen Bradley (Rockwell Automation) |
| Model Number | 20-750-NEMA1-F7 |
| Product Family | PowerFlex 750-Series Accessories |
| Product Type | NEMA Type 1 Conversion Kit |
| Compatible Drive Series | PowerFlex 753 / 755 |
| Compatible Frame Size | Frame 7 |
| Enclosure Rating | NEMA Type 1 |
| Primary Function | Indoor enclosure protection conversion |
| Installation Type | Factory-designed retrofit kit |
| Material Construction | Industrial-grade coated metal assembly |
| Cooling Compatibility | Maintains drive ventilation airflow |
| Mounting Orientation | Vertical drive installation |
| Access Design | Front-access enclosure configuration |
| Protection Features | Finger-safe and dust protection |
| Application Environment | Indoor industrial installations |
| Operating Temperature | Based on host drive specifications |
| Compliance Standards | UL / cUL industrial enclosure standards |
| Integration | Seamless PowerFlex mechanical compatibility |
Physical Dimensions & Weight (L × W × H Combined)
| Parameter | Specification |
|---|---|
| Dimensions (L × W × H) | Approx. 900 × 600 × 350 mm |
| Weight | Approx. 18–24 kg |
Recommended Related Models
The 20-750-NEMA1-F7 is commonly used with PowerFlex 750-Series drives and related communication or control accessories.
| Related Model | Description |
|---|---|
| 20F11NC140JA0NNNNN | PowerFlex 753 AC Drive |
| 20G11NC072AA0NNNNN | PowerFlex 755 AC Drive |
| 20-750-20COMM | Dual communication carrier module |
| 20-750-ENETR | EtherNet/IP communication adapter |
| 20-750-APS | Auxiliary power supply module |
| 20-HIM-A6 | LCD HIM interface |
| 20-HIM-C6S | Full-color HIM interface |
| 20-750-UFB-1 | Universal feedback module |
| 20-750-S | Safe torque-off module |
| 20-750-2262C-2R | HIM communication cable |
