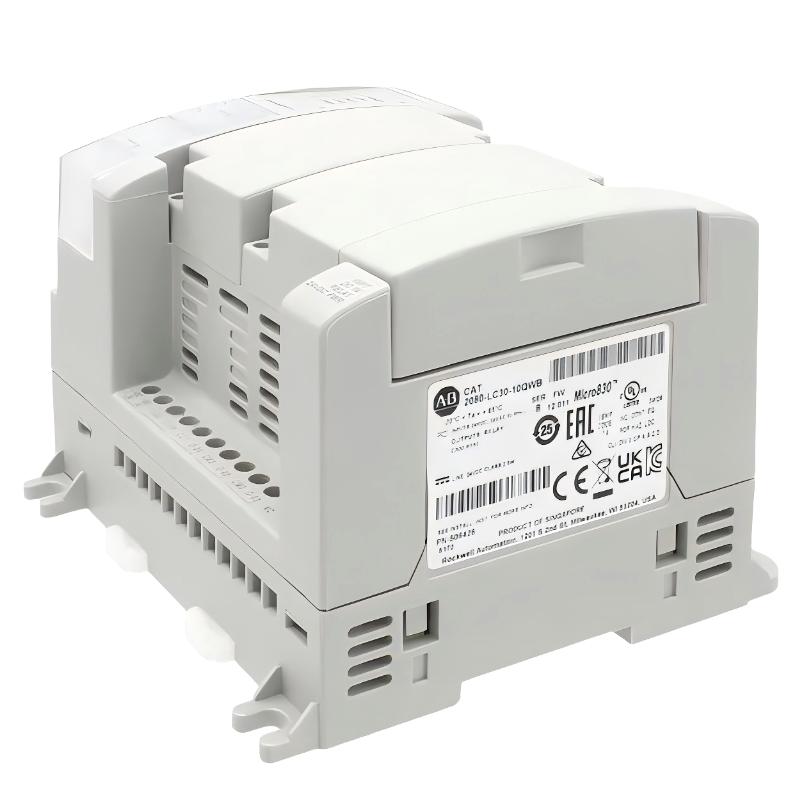

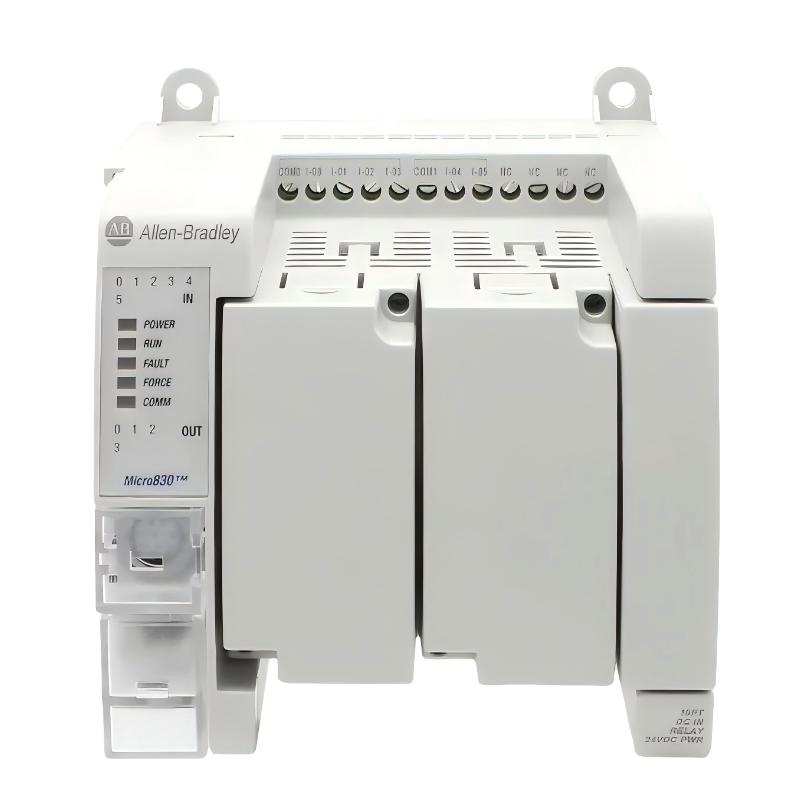

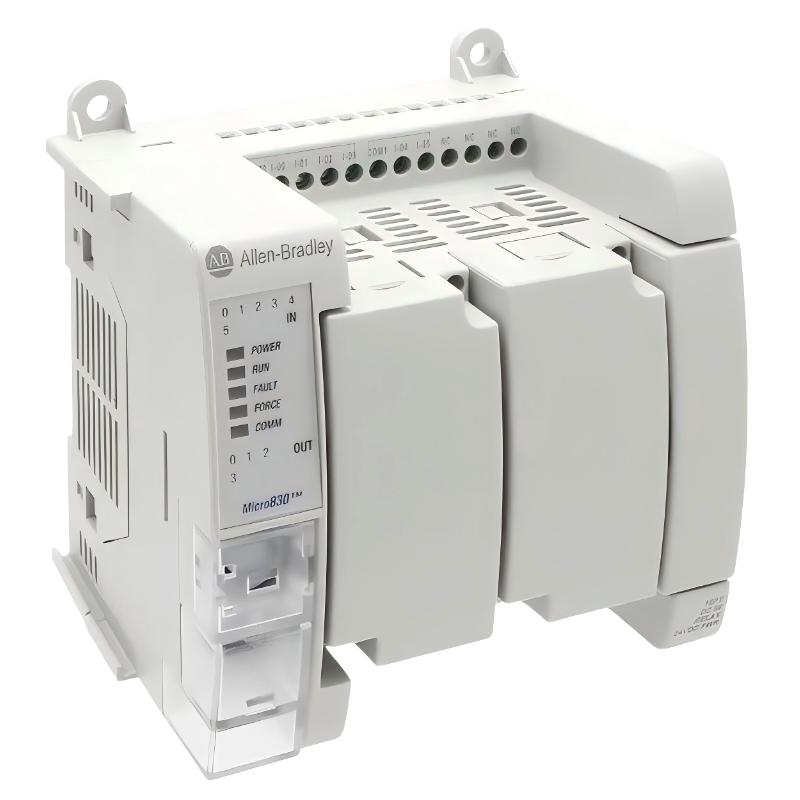

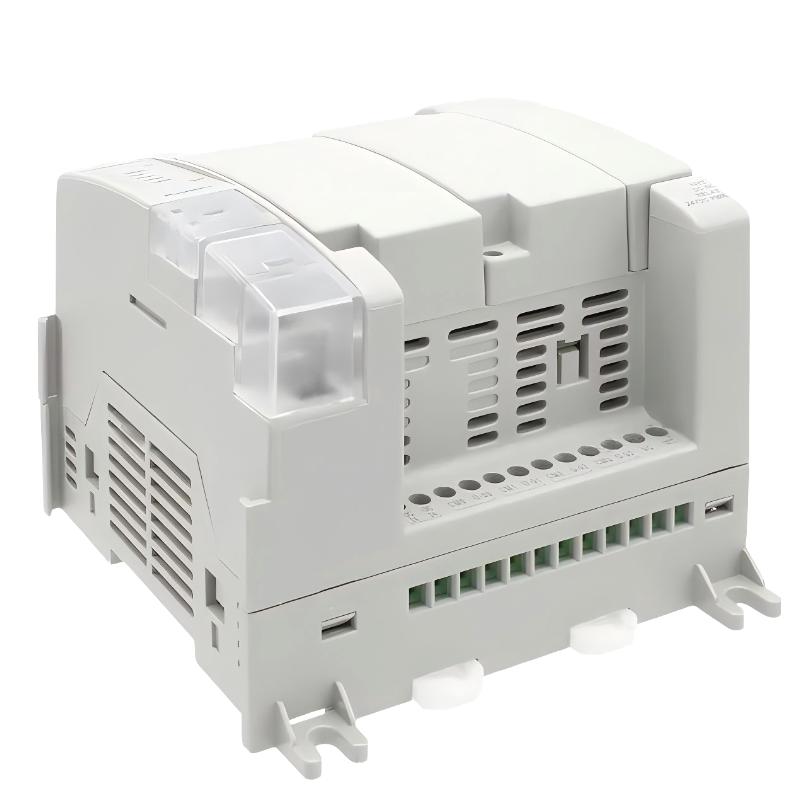

The Allen Bradley 2080-LC30-10QWB is a Micro830 series programmable logic controller (PLC) designed for compact machine control applications. It combines digital inputs, relay outputs, and flexible communication options in a single brick-style controller, making it a cost-effective solution for OEM machinery, small automation panels, and standalone control systems.
This model is widely used in light industrial automation where simplicity, reliability, and fast commissioning are more important than large-scale control architecture.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Allen Bradley (Rockwell Automation) |
| Model Number | 2080-LC30-10QWB |
| Product Family | Micro830 |
| Controller Type | Compact PLC |
| Total I/O | 10 points (6 inputs, 4 outputs) |
| Input Type | 24V DC / AC digital inputs |
| Output Type | Relay outputs |
| Output Rating | Suitable for AC/DC loads via relay contacts |
| Power Supply | 24V DC |
| Programming Port | USB device port |
| Serial Communication | RS-232 / RS-485 (non-isolated) |
| Protocols | Modbus RTU, ASCII, CIP Serial |
| Memory | ~8 KB user program memory |
| Expansion | Up to 2 plug-in modules |
| High-Speed Counters | 2 channels |
| Operating Temperature | -20°C to +65°C |
| Mounting Type | DIN rail / panel mount |
| Protection Class | IP20 |
Physical Dimensions & Weight (L × W × H Combined)
| Parameter | Specification |
|---|---|
| Dimensions (L × W × H) | 90 × 100 × 80 mm |
| Weight | ~0.3–0.4 kg |
Recommended Related Models
The 2080-LC30-10QWB is part of the Micro800 family and often paired with expansion modules and HMI systems for small automation projects.
| Related Model | Description |
|---|---|
| 2080-LC30-16QWB | Higher I/O Micro830 PLC |
| 2080-LC20-10QWB | Smaller Micro830 controller |
| 2080-IF4 | Analog input expansion module |
| 2080-OF2 | Analog output module |
| 2080-MEMBAK-RTC | Memory backup accessory |
| 2711R-T4T | PanelView 800 HMI |
| 1606-XLP power supply | Compact industrial PSU |
| 2080-PS120-240 | Micro800 power supply |
| 2090 series cables | Micro800 communication accessories |
| 1492 wiring terminals | Panel wiring system |
