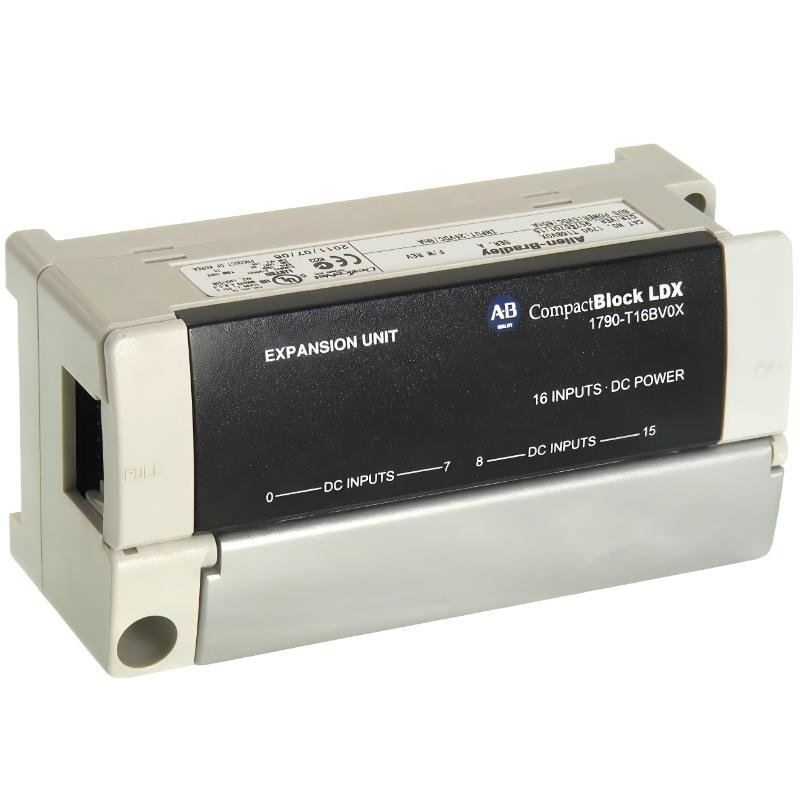

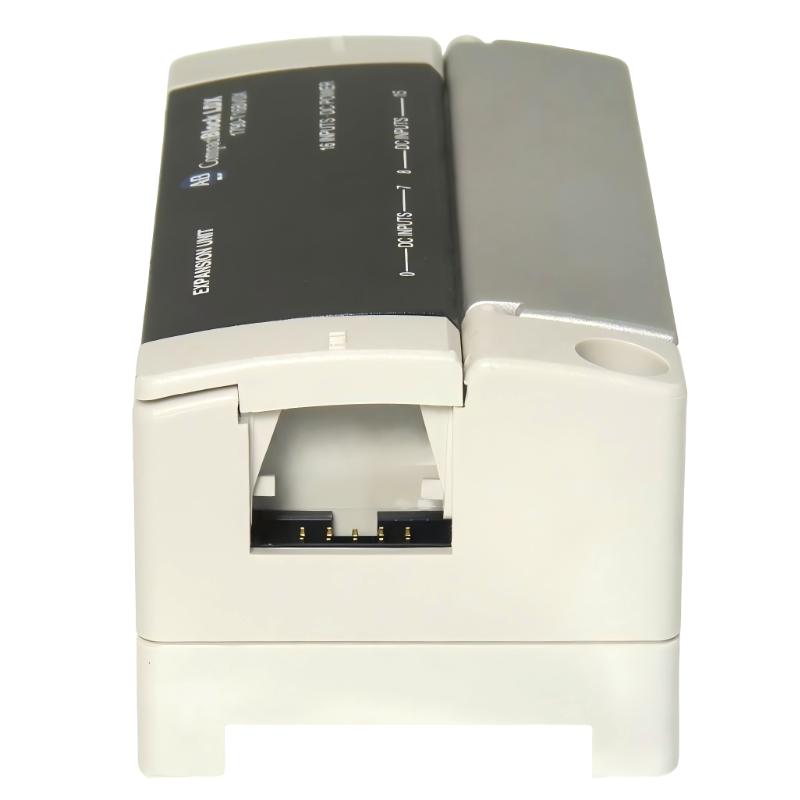

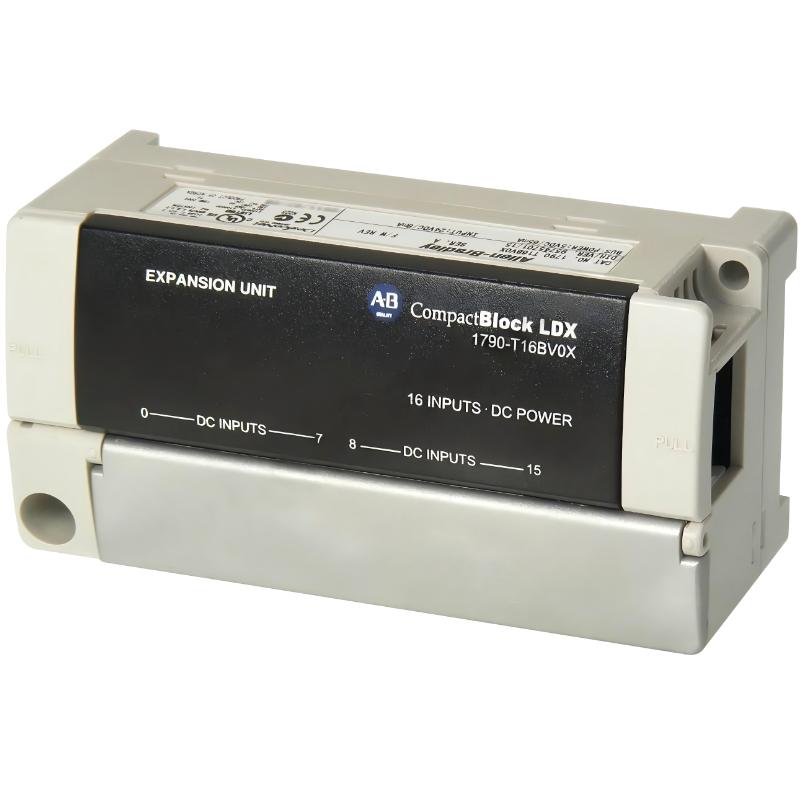

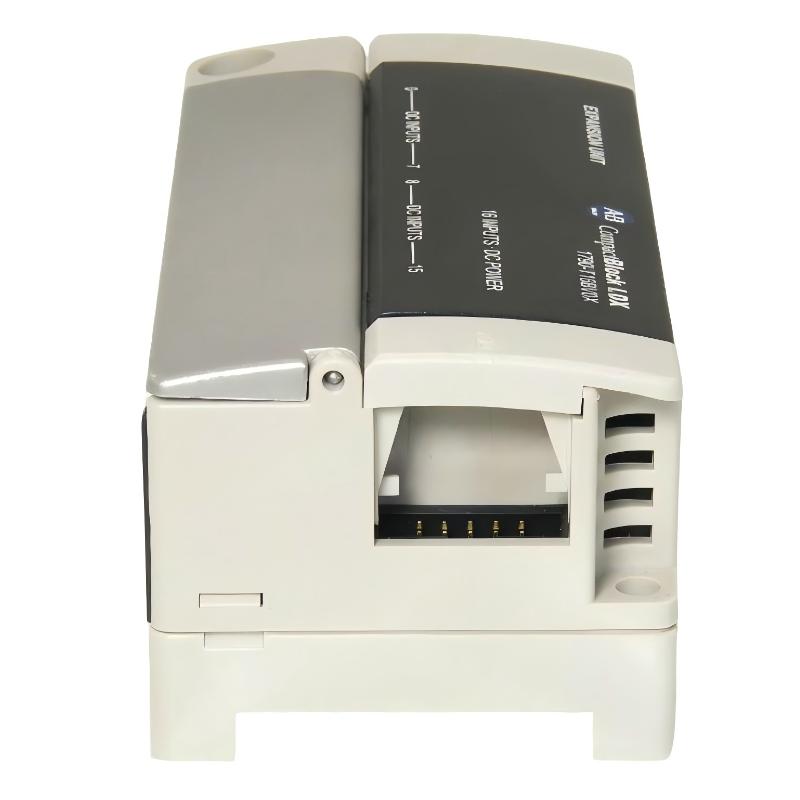

Allen Bradley 1790-T16BV0X CompactBlock LDX I/O Extension Block

Applications

The Allen Bradley 1790-T16BV0X CompactBlock LDX I/O Extension Block is designed to expand the input/output capabilities of CompactBlock LDX I/O systems. Typical applications include:

• Extending digital or analog input/output channels for CompactBlock LDX systems
• Integration into distributed control systems and industrial automation networks
• Supporting modular I/O expansions in manufacturing plants and process control systems
• Enhancing system flexibility by adding additional I/O points without major reconfiguration
• Industrial environments requiring compact, reliable, and easily scalable I/O solutions

This extension block enables efficient system growth while maintaining high-performance communication with the base modules.

Advantages

• Seamless System Expansion: Easily adds extra I/O points to existing CompactBlock LDX systems.
• Compact and Lightweight: 104 × 42 × 52 mm and 0.1 kg (0.22 lb), perfect for dense panel installations.
• Industrial-Grade Reliability: Durable against vibration, temperature changes, and electrical interference.
• Modular Flexibility: Supports a wide range of digital and analog extensions.
• Plug-and-Play Installation: Quick and simple integration into existing LDX systems.
• Cost-Effective Scalability: Expands system capabilities without replacing the base module.

Technical FAQs

1. Q: What is the primary function of the 1790-T16BV0X?
   A: Expands the I/O capacity of CompactBlock LDX systems by providing additional input/output points.
2. Q: Is it compatible with all CompactBlock LDX base modules?
   A: Yes, it is designed to integrate seamlessly with standard LDX base modules.
3. Q: What type of signals can it handle?
   A: Supports both digital and analog I/O signals.
4. Q: How is it mounted?
   A: Directly attaches to the CompactBlock LDX rail or mounting frame.
5. Q: Can it operate in harsh industrial environments?
   A: Yes, it is resistant to vibration, temperature extremes, and electrical noise.
6. Q: Is it hot-swappable?
   A: It supports safe modular installation while the system is powered under certain conditions; consult specific LDX system guidelines.
7. Q: How many I/O channels does it provide?
   A: Provides 16 additional I/O channels for system expansion.
8. Q: Does it require configuration software?
   A: Yes, it can be configured using the standard CompactBlock LDX programming software.
9. Q: What is the operating temperature range?
   A: 0°C to 60°C (typical industrial standard).
10. Q: What maintenance is required?
    A: Minimal; periodic inspection ensures proper connection and system operation.
