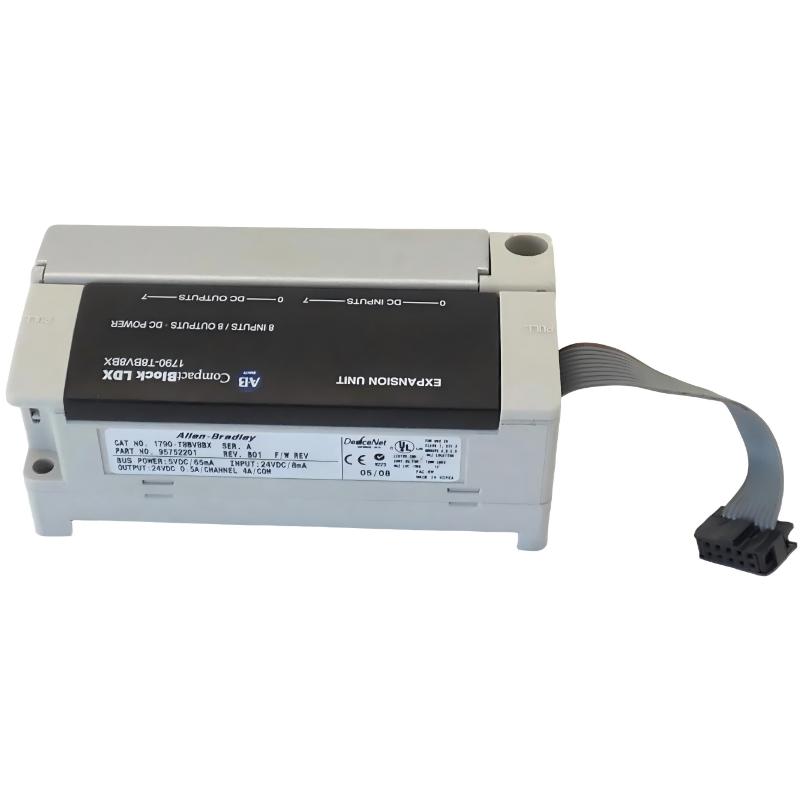

Allen Bradley 1790-T8BV8BX CompactBlock LDX I/O Extension Block
Allen Bradley 1790-T8BV8BX CompactBlock LDX I/O Extension Block
0.0
Points
Brand:Allen Bradley PLC Item No.:1790-T8BV8BX Product Origin:USA Product Dimensions:104 x 42 x 52 mm Product Weight:0.1 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 1790-T8BV8BX CompactBlock LDX I/O Extension Block is a reliable solution for expanding the input/output capabilities of CompactBlock LDX systems. Compact yet robust, it provides additional digital and analog channels, enabling flexible system scaling and seamless integration into industrial automation and process control applications.
Technical Specifications
Parameter
Specification
Dimensions (L x W x H)
104 × 42 × 52 mm
Weight
0.1 kg (0.22 lb)
Function
I/O Extension Block
Channels
8 Additional I/O Channels
Operating Temperature
0°C to 60°C
Mounting
CompactBlock LDX Rail / Module Frame
Connectivity
Digital/Analog I/O
Compliance
CE, Industrial-Grade Standards
Application
System Expansion, Industrial Automation, Process Control
Applications
The Allen Bradley 1790-T8BV8BX CompactBlock LDX I/O Extension Block is designed to expand the input/output capabilities of existing LDX I/O systems. Common applications include:
Adding additional I/O points to CompactBlock LDX base modules
Supporting digital and analog signals in distributed control systems
Enhancing system flexibility in manufacturing, process control, and industrial automation
Facilitating modular expansion without major reconfiguration
Industrial environments requiring compact, reliable, and scalable I/O solutions
This extension block ensures smooth, reliable communication between system modules while supporting flexible system growth.
Advantages
Seamless Expansion: Quickly adds extra I/O channels to LDX systems.
Compact and Lightweight: 104 × 42 × 52 mm and 0.1 kg (0.22 lb), ideal for dense panel layouts.
Durable and Reliable: Engineered to withstand vibration, temperature fluctuations, and electrical noise.
Modular Flexibility: Supports both digital and analog I/O extensions.
Plug-and-Play Installation: Easy integration with minimal downtime.
Cost-Effective Scalability: Increases system capacity without replacing existing modules.
Technical FAQs
Q: What is the primary function of the 1790-T8BV8BX? A: Expands the I/O capacity of CompactBlock LDX systems by providing additional input/output points.
Q: Is it compatible with all LDX base modules? A: Yes, designed for seamless integration with standard CompactBlock LDX base modules.
Q: What type of signals does it support? A: Handles both digital and analog input/output signals.
Q: How is it mounted? A: Directly attaches to the CompactBlock LDX rail or mounting frame.
Q: Can it operate in harsh industrial conditions? A: Yes, built to resist vibration, electrical interference, and temperature extremes.
Q: Is it hot-swappable? A: Supports modular installation under system power, following LDX guidelines.
Q: How many I/O channels does it provide? A: Provides 8 additional I/O channels for system expansion.
Q: Does it require configuration software? A: Yes, configuration is done through the standard CompactBlock LDX programming software.
Q: What is the operating temperature range? A: 0°C to 60°C (typical industrial standard).
Q: What maintenance is required? A: Minimal; periodic inspection ensures proper connection and operation.
