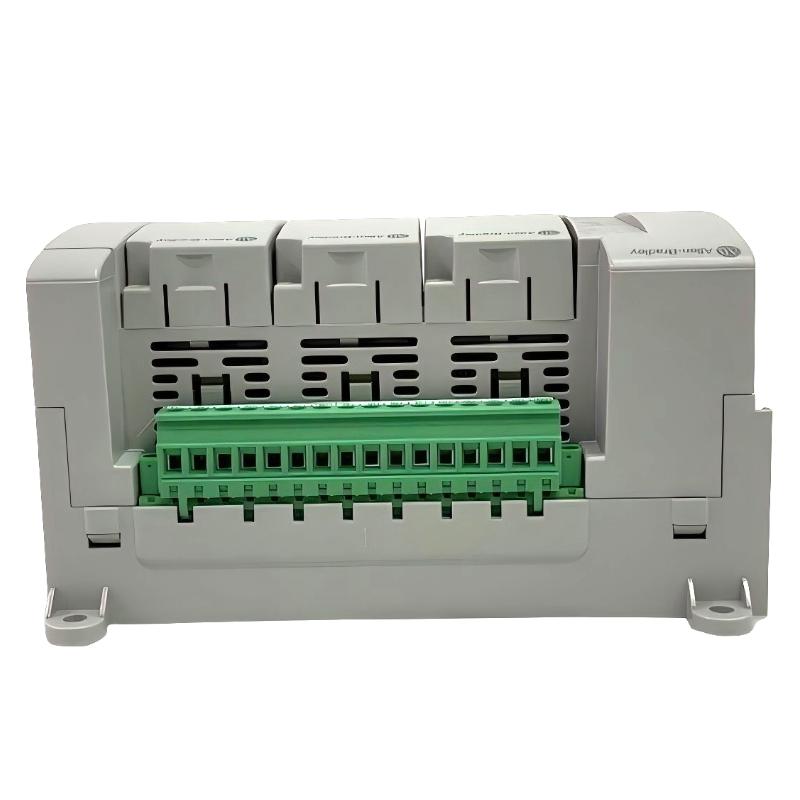

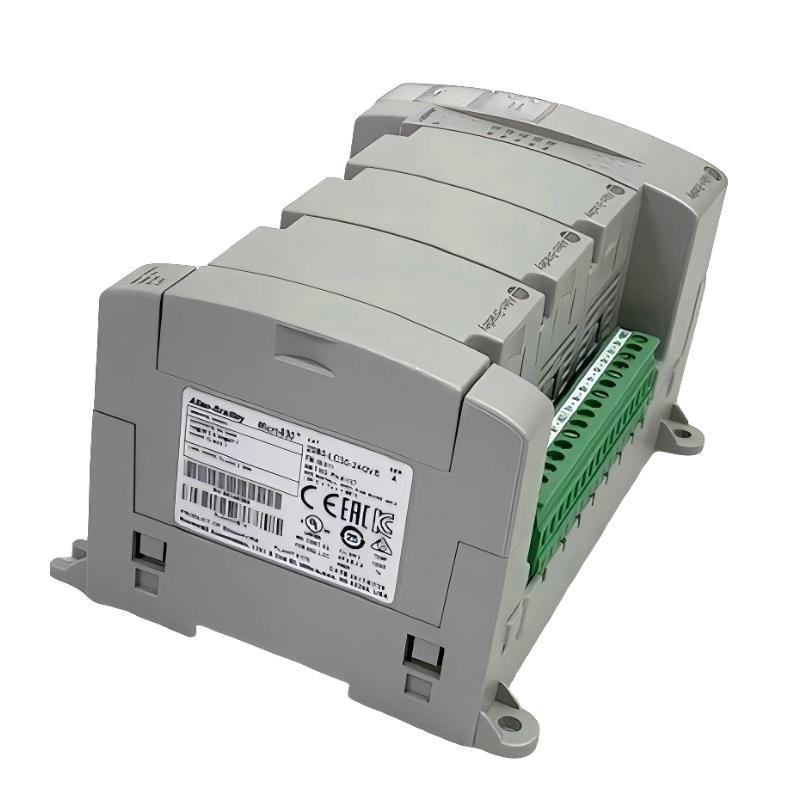

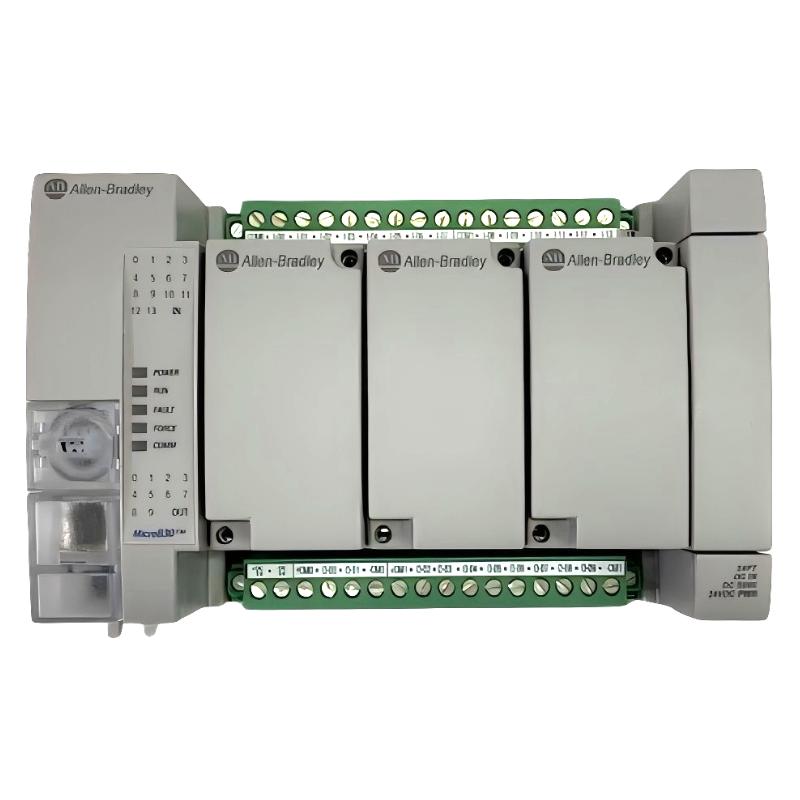

The Allen Bradley 2080-LC30-24QVB is a Micro830 series programmable logic controller (PLC) designed for compact yet high-I/O machine automation applications. It integrates a dense combination of digital inputs and transistor outputs, making it ideal for fast switching control tasks in OEM machinery, packaging lines, conveyors, and small industrial systems.
Built within the Micro800 platform, this controller balances flexibility, speed, and compact design, while supporting expansion modules and modern programming via Connected Components Workbench (CCW).
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Allen Bradley (Rockwell Automation) |
| Model Number | 2080-LC30-24QVB |
| Product Family | Micro830 |
| Controller Type | Compact PLC with embedded I/O |
| Total I/O Points | 24 (14 inputs + 10 outputs) |
| Input Type | 24V AC/DC digital inputs |
| Output Type | 24V DC transistor (sinking) outputs |
| Output Characteristics | High-speed switching capable |
| High-Speed Counters | 4 channels |
| Motion Control | Up to 2 PTO axes |
| Plug-in Expansion Slots | 3 |
| Programming Port | USB 2.0 |
| Serial Communication | RS-232 / RS-485 (non-isolated) |
| Supported Protocols | Modbus RTU, ASCII, CIP Serial |
| Memory Capacity | ~20 KB user memory |
| Power Supply | 24V DC |
| Operating Voltage Range | 20.4 – 26.4V DC |
| Power Consumption | ~12.3 W |
| Programming Software | Connected Components Workbench (CCW) |

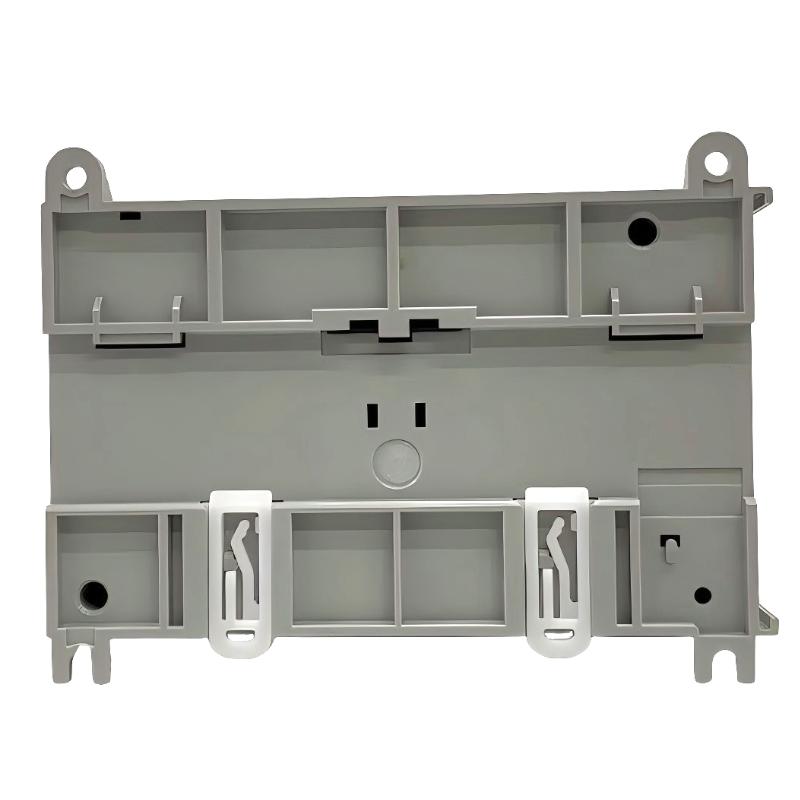

| Mounting Type | DIN rail / panel mount |
| Protection Class | IP20 |
| Operating Temperature | -20°C to +65°C |
| Certifications | CE, UL, cUL, Class I Div 2 (hazardous locations) |
Physical Dimensions & Weight (L × W × H Combined)
| Parameter | Specification |
|---|---|
| Dimensions (L × W × H) | 90 × 145 × 80 mm |
| Weight | Approx. 0.42 kg |
Recommended Related Models
The 2080-LC30-24QVB is part of the Micro830 ecosystem and is often paired with expansion modules and operator interfaces for machine-level control.
| Related Model | Description |
|---|---|
| 2080-LC30-10QWB | Smaller I/O Micro830 controller |
| 2080-LC30-16QWB | Mid-size Micro830 controller |
| 2080-IF4 | Analog input expansion module |
| 2080-OF2 | Analog output expansion module |
| 2080-PS120-240 | Micro800 power supply |
| 2080-MEMBAK-RTC | Memory backup module |
| 2711R-T4T | PanelView 800 HMI |
| 1606-XLP | Compact industrial power supply |
| 2090 series cables | Micro800 communication accessories |
| 1492 wiring systems | Panel wiring accessories |
