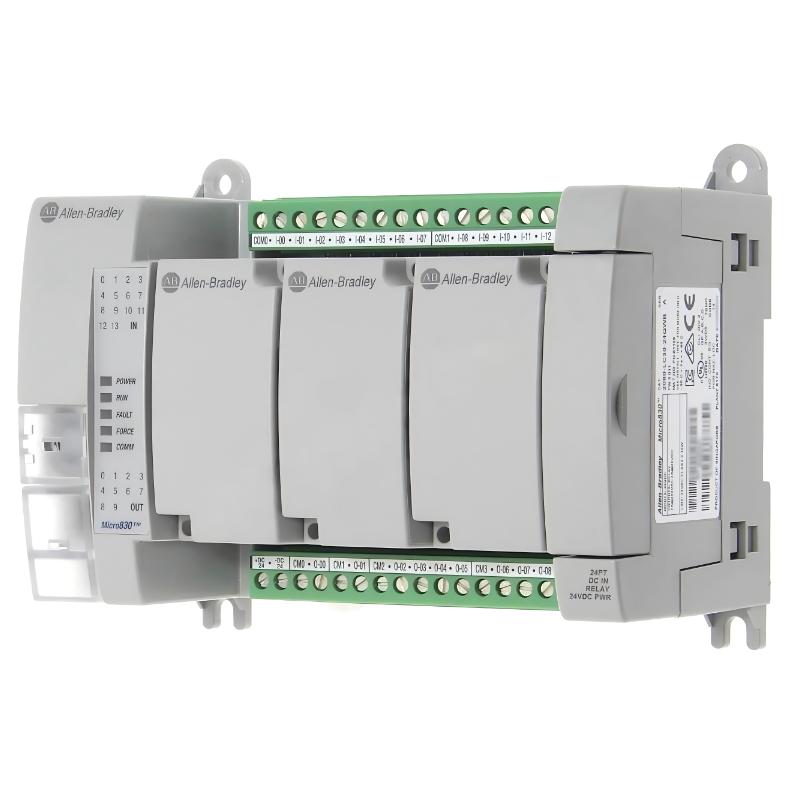

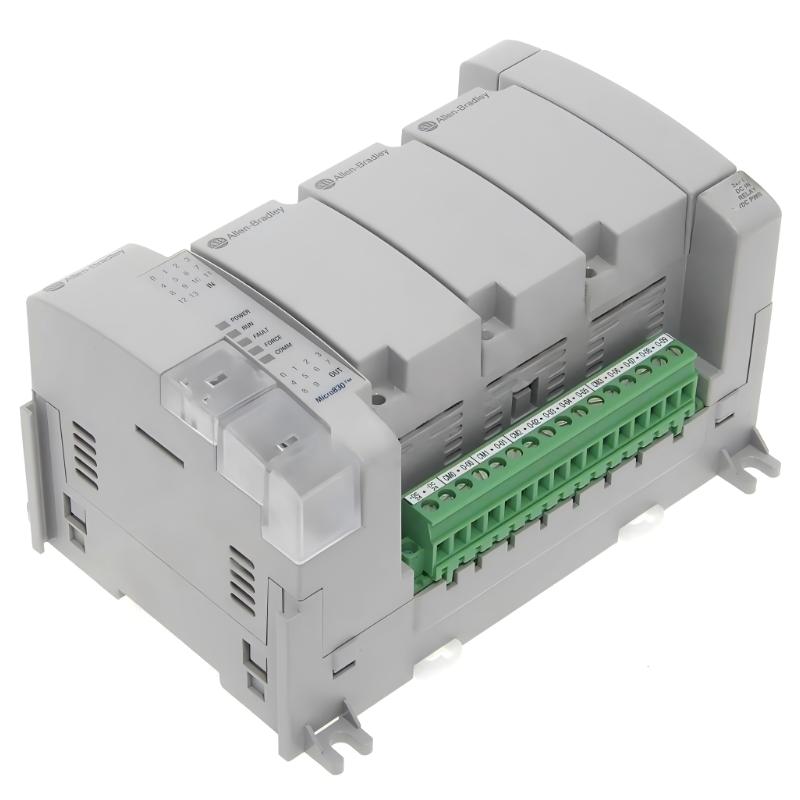

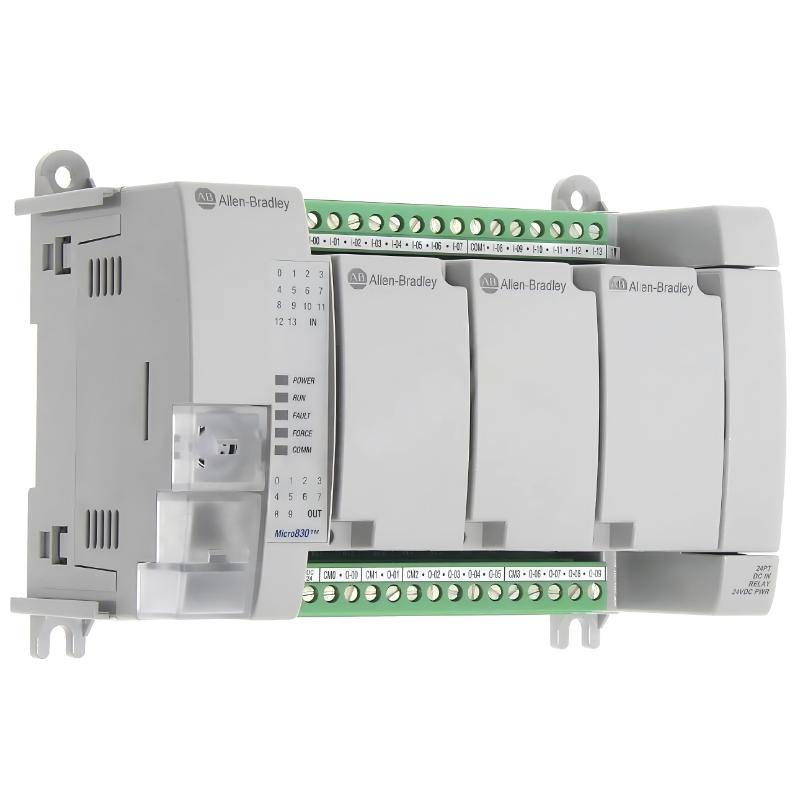

The Allen Bradley 2080-LC30-24QWB is a Micro830 series programmable logic controller (PLC) designed for compact industrial machines that require a balance of high I/O density, flexible communication, and fast control response. It integrates a robust set of digital inputs and outputs into a single controller, making it ideal for OEM equipment and small automation systems.
This model is widely used in packaging, conveyor systems, and light industrial machinery where reliability and space efficiency are key design priorities.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Allen Bradley (Rockwell Automation) |
| Model Number | 2080-LC30-24QWB |
| Product Family | Micro830 (Micro800 Series) |
| Controller Type | Compact PLC |
| Total I/O Points | 24 (14 inputs, 10 outputs) |
| Input Type | 24V AC/DC digital inputs |
| Output Type | Relay outputs |
| Input Breakdown | Standard + high-speed inputs supported |
| High-Speed Counters | Up to 4 channels |
| Memory | ~8–20 KB user memory (varies by configuration) |
| Programming Software | Connected Components Workbench (CCW) |
| Communication Ports | USB + RS-232/RS-485 serial |
| Supported Protocols | Modbus RTU, ASCII, CIP Serial |
| Expansion Support | Up to 3 plug-in modules |
| Motion Control | Basic PTO motion support |
| Power Supply | 24V DC |

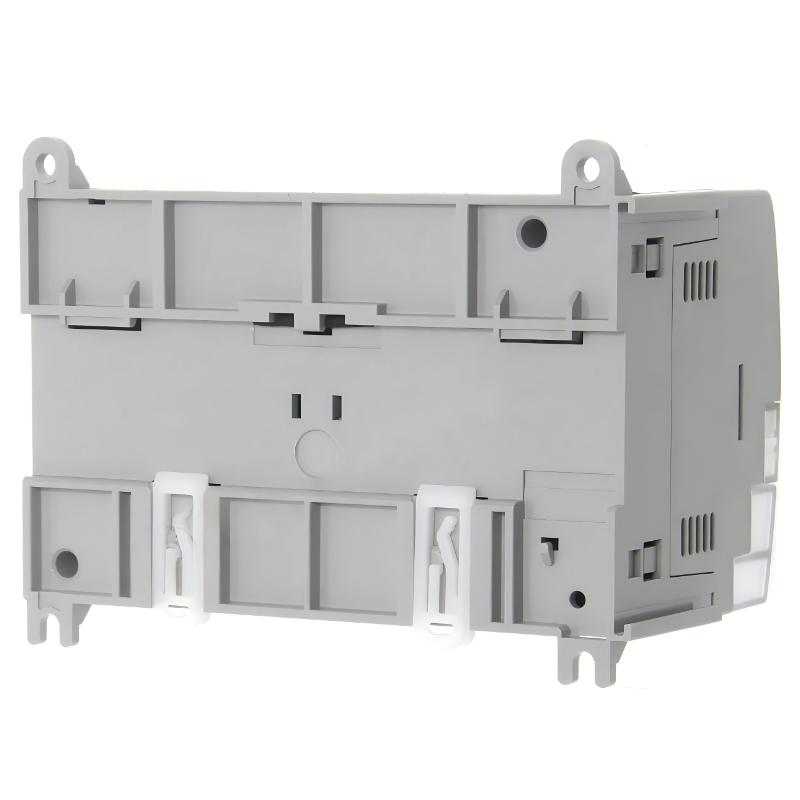

| Mounting Type | DIN rail / panel mount |
| Protection Class | IP20 |
| Operating Temperature | -20°C to +65°C |
Physical Dimensions & Weight (L × W × H Combined)
| Parameter | Specification |
|---|---|
| Dimensions (L × W × H) | 90 × 145 × 80 mm |
| Weight | Approx. 0.3–1.3 kg (depends on source/configuration) |
Recommended Related Models
The 2080-LC30-24QWB is part of the Micro800 ecosystem and works with expansion modules and HMIs for complete machine control solutions.
| Related Model | Description |
|---|---|
| 2080-LC30-10QWB | Smaller I/O Micro830 controller |
| 2080-LC30-16QWB | Mid-range Micro830 controller |
| 2080-IF4 | Analog input expansion module |
| 2080-OF2 | Analog output module |
| 2080-PS120-240 | Power supply module |
| 2711R-T4T | PanelView 800 HMI |
| 1606-XLP | Compact industrial power supply |
| 2090 series | Micro800 communication cables |
| 2080-MEMBAK-RTC | Memory backup module |
| 1492 wiring systems | Industrial terminal blocks |
