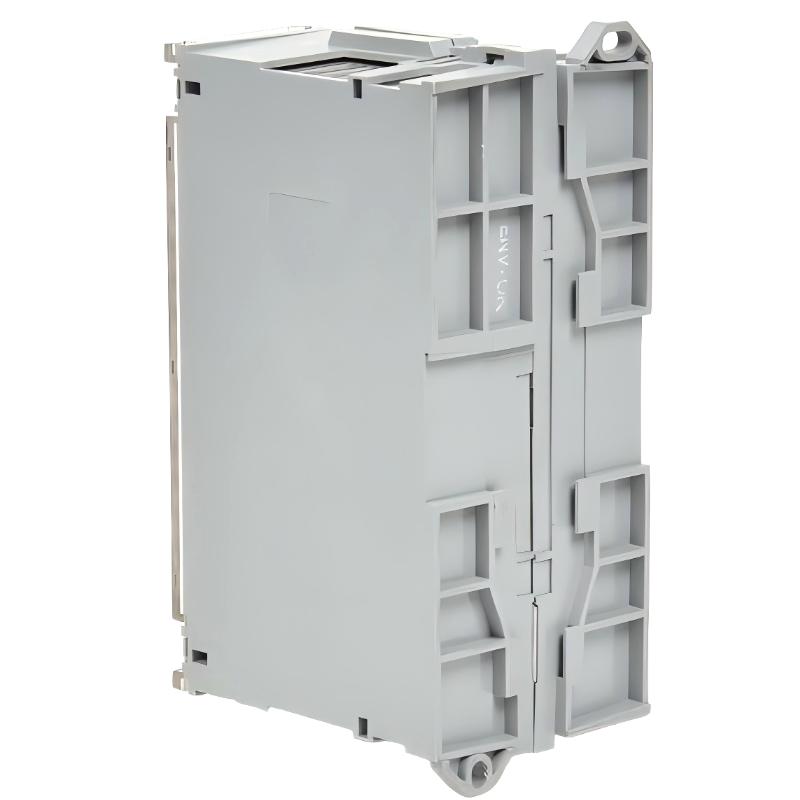

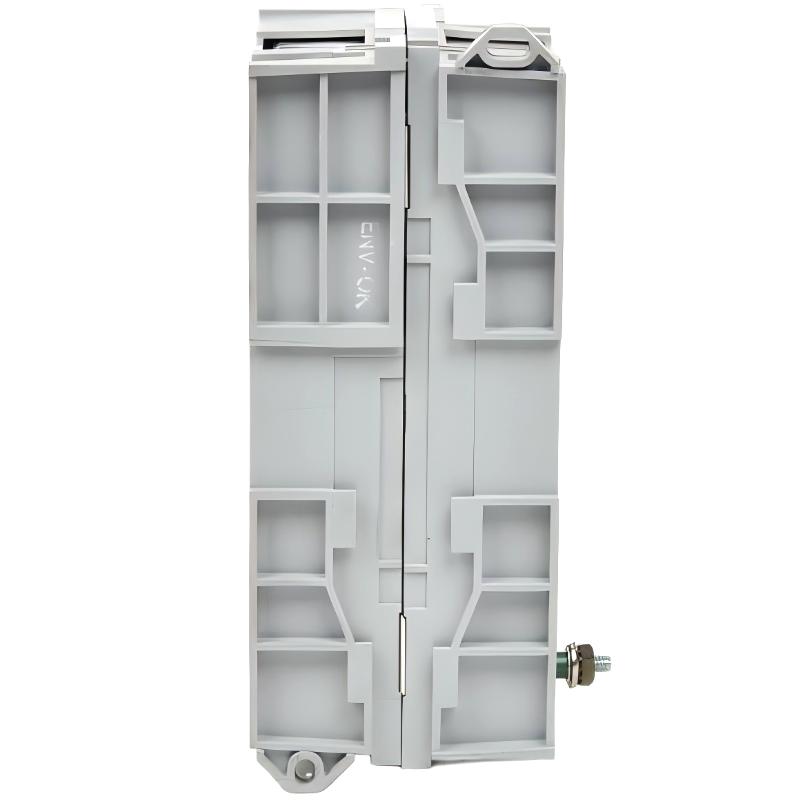

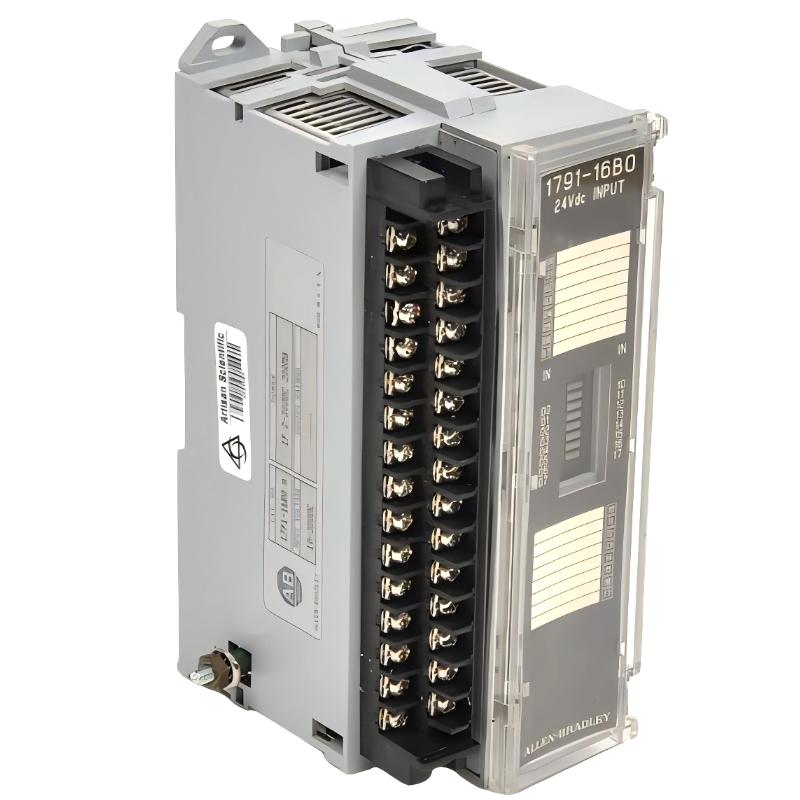

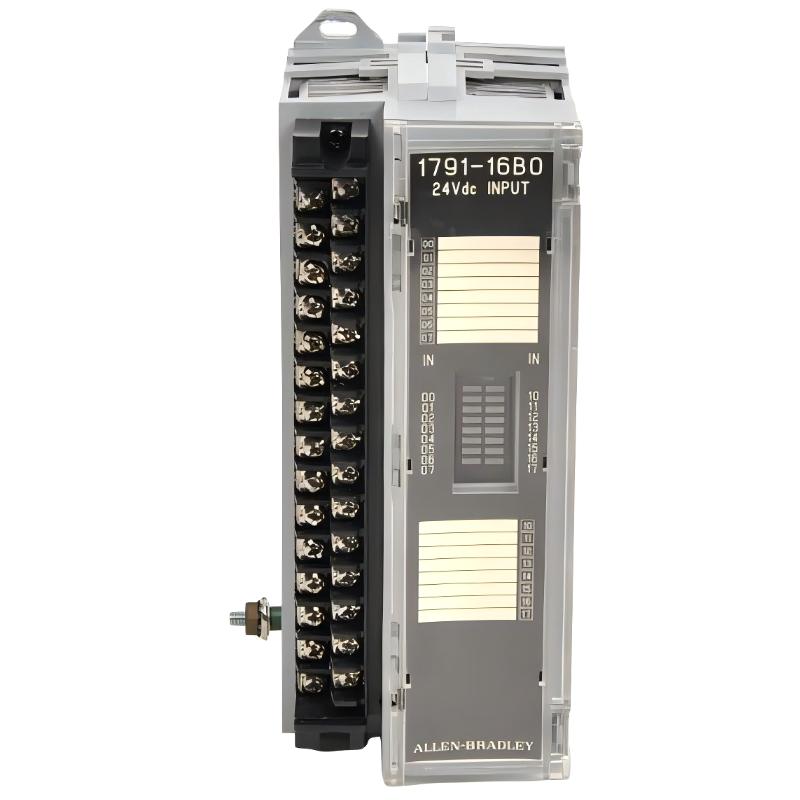

Allen Bradley 1791-16B0 Block I/O Input Module

Applications

The Allen Bradley 1791-16B0 Block I/O Input Module is designed to reliably capture and transmit digital input signals from field devices to industrial control systems. Typical applications include:

• Monitoring switches, sensors, and field devices in automation systems
• Integration with Block I/O and CompactBlock systems for industrial control
• Supporting process control, manufacturing automation, and safety interlocks
• Capturing critical operational signals in distributed control networks
• Industrial environments requiring robust, precise, and high-speed input processing

This input module ensures accurate and timely signal transmission for efficient system monitoring and control.

Advantages

• Reliable Input Processing: Captures digital signals with high accuracy and integrity.
• Compact and Lightweight: 176.5 × 68.8 × 98 mm and 0.45 kg (0.99 lb) for space-efficient installation.
• Industrial-Grade Durability: Resistant to vibration, electrical noise, and temperature variations.
• Seamless Integration: Compatible with Block I/O and CompactBlock systems for modular expansion.
• Fast Response Time: Enables rapid detection and processing of input signals for real-time control.
• Plug-and-Play Installation: Easy integration into existing control networks.

Technical FAQs

1. Q: What is the main function of the 1791-16B0?
   A: Provides 16 digital input channels to capture signals from field devices.
2. Q: Can it integrate with other Block I/O modules?
   A: Yes, designed to work seamlessly with Block I/O and CompactBlock systems.
3. Q: What type of input signals does it support?
   A: Supports standard digital input signals, including switches and sensors.
4. Q: How is it mounted?
   A: Installs directly into a Block I/O rack or compatible mounting frame.
5. Q: Can it operate in harsh industrial environments?
   A: Yes, built to resist vibration, temperature extremes, and electrical interference.
6. Q: What is the operating voltage range?
   A: Typically designed for 24 VDC digital inputs.
7. Q: How many input channels does it provide?
   A: 16 digital input channels for system expansion and monitoring.
8. Q: Is configuration software required?
   A: Yes, setup and channel configuration can be done using standard Block I/O programming tools.
9. Q: What is the operating temperature range?
   A: 0°C to 60°C, suitable for standard industrial applications.
10. Q: What maintenance is required?
    A: Minimal; periodic inspection ensures proper connection and signal integrity.
