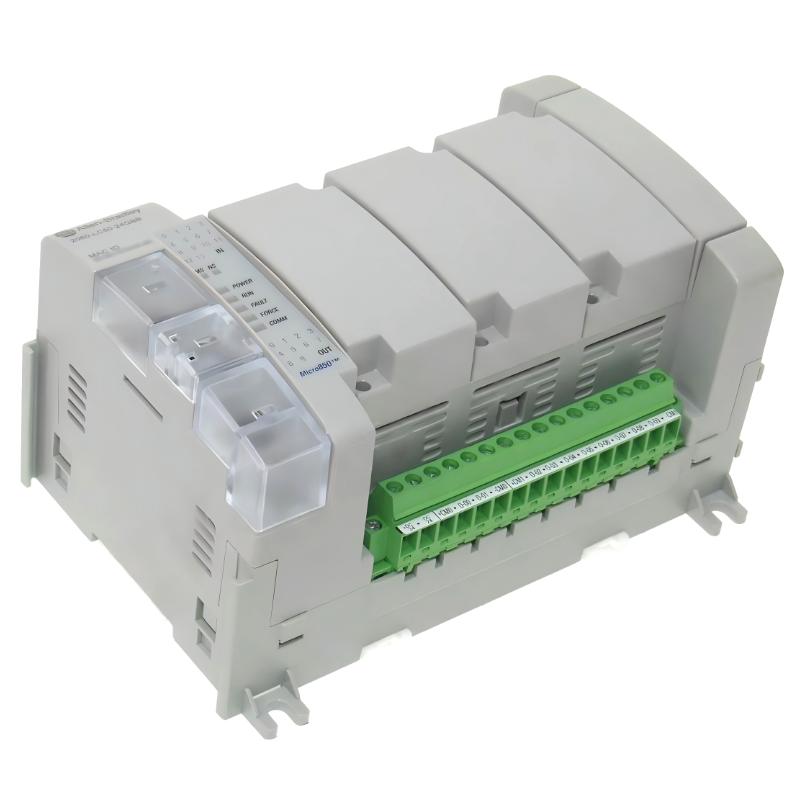

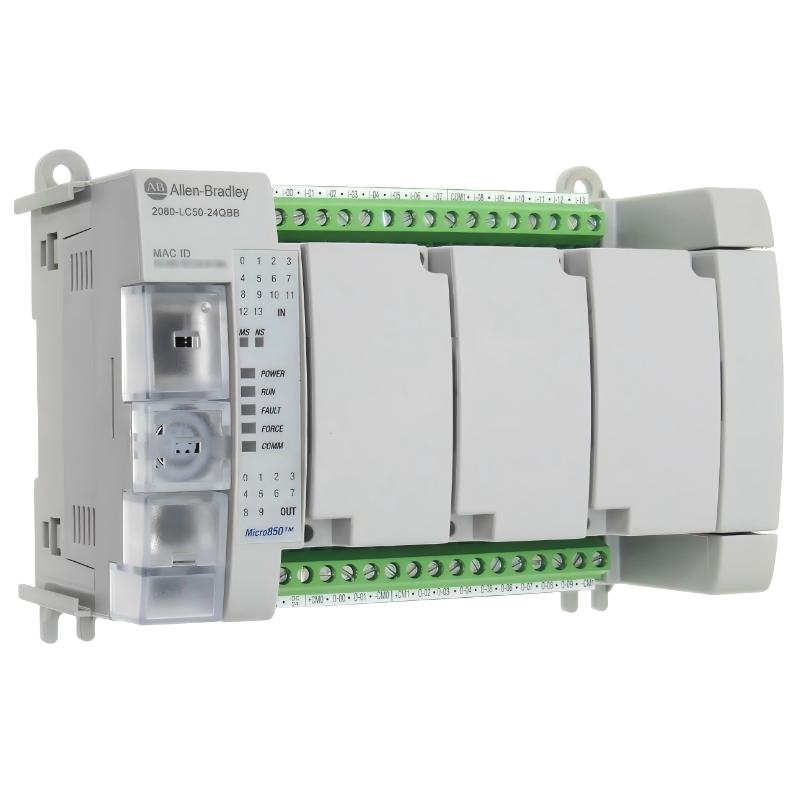

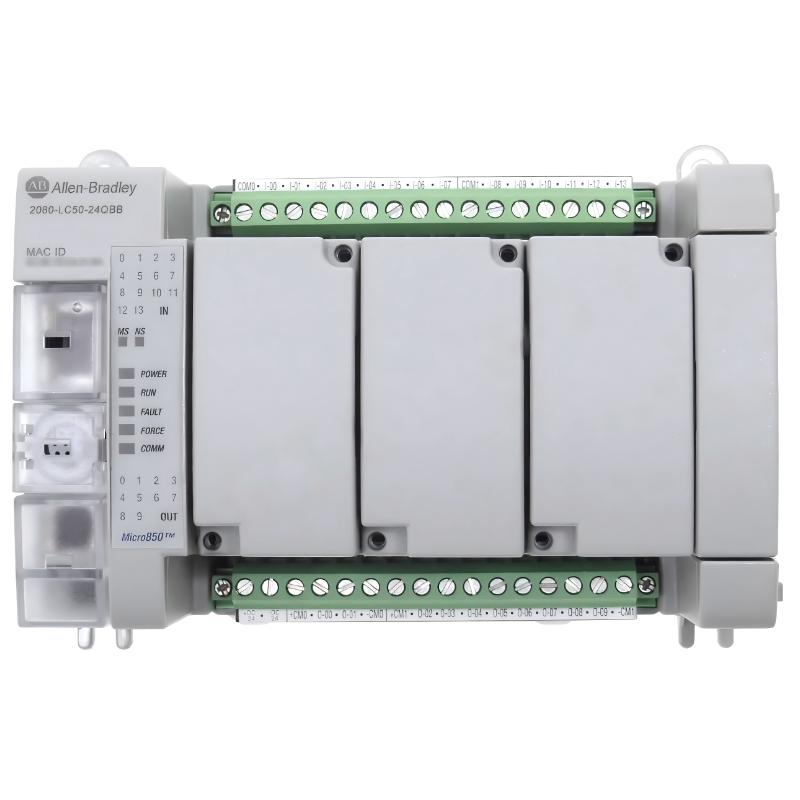

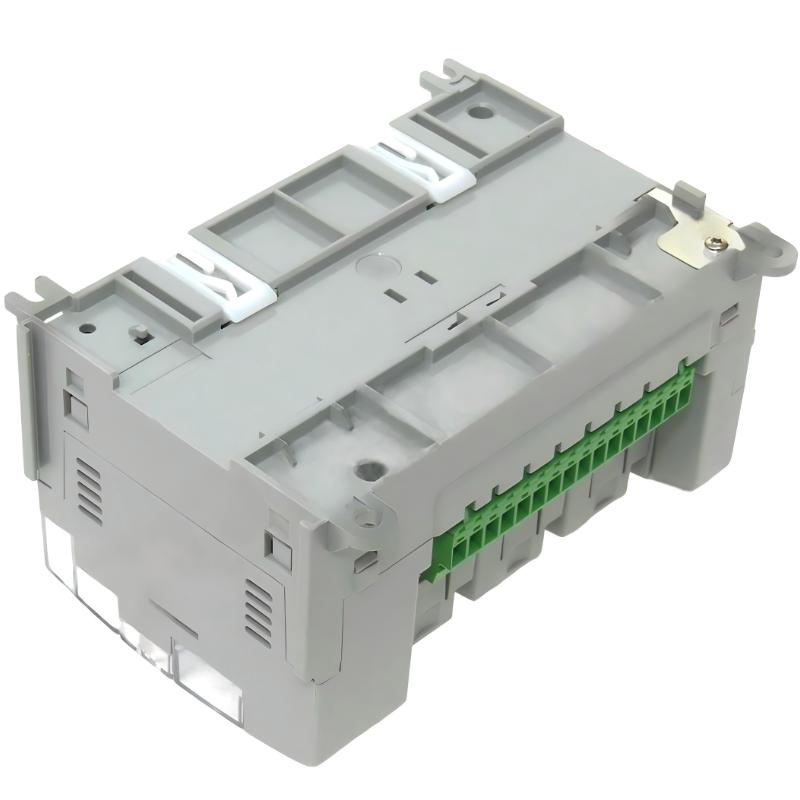

The Allen Bradley 2080-LC50-24QBB is a Micro850 series programmable logic controller (PLC) designed for more demanding compact automation systems where higher I/O capacity, faster processing, and expanded communication capability are required. Positioned as a performance-focused controller in the Micro800 family, it delivers strong functionality for OEM machine builders and industrial automation applications.
With integrated digital I/O, high-speed counters, motion capability, and Ethernet connectivity, this model is built for modern connected machinery requiring both precision control and network integration.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Allen Bradley (Rockwell Automation) |
| Model Number | 2080-LC50-24QBB |
| Product Family | Micro850 |
| Controller Type | Compact PLC |
| Total I/O Points | 24 (14 inputs + 10 outputs) |
| Input Type | 24V AC/DC digital inputs |
| Output Type | 24V DC source outputs (transistor) |
| High-Speed Inputs | Supported (inputs 0–7) |
| High-Speed Outputs | 2 PTO channels |
| High-Speed Counters | Up to 4 channels |
| Communication Ports | Ethernet + USB + RS-232/RS-485 serial |
| Protocols | EtherNet/IP, Modbus RTU, ASCII, CIP Serial |
| Plug-in Expansion Slots | 3 slots |
| Expansion I/O Support | Up to 4 modules |
| Programming Software | Connected Components Workbench (CCW) |
| Memory | ~20 KB user program memory |
| Power Supply | 24V DC |
| Operating Temperature | -20°C to +65°C |
| Protection Class | IP20 |
Physical Dimensions & Weight (L × W × H Combined)
| Parameter | Specification |
|---|---|
| Dimensions (L × W × H) | 90 × 145 × 80 mm |
| Weight | Approx. 0.4 kg |
Recommended Related Models
The 2080-LC50-24QBB is part of the Micro850 ecosystem and is often paired with expansion modules and HMIs for scalable machine automation.
| Related Model | Description |
|---|---|
| 2080-LC50-16QBB | Mid-range Micro850 controller |
| 2080-LC50-24AWB | Relay output variant |
| 2080-IF4 | Analog input expansion module |
| 2080-OF2 | Analog output module |
| 2080-PS120-240 | Power supply module |
| 2711R-T4T | PanelView 800 HMI |
| 1606-XLE series | Industrial power supplies |
| 2090 series cables | Micro800 communication accessories |
| 2080-MEMBAK-RTC | Memory backup module |
| 1492 wiring systems | Terminal and wiring accessories |
