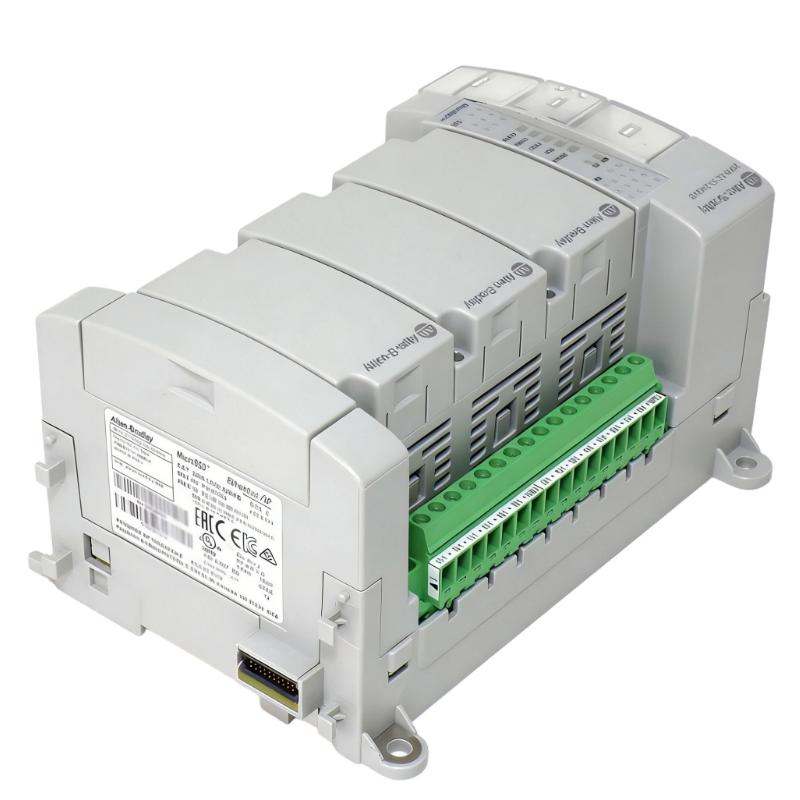

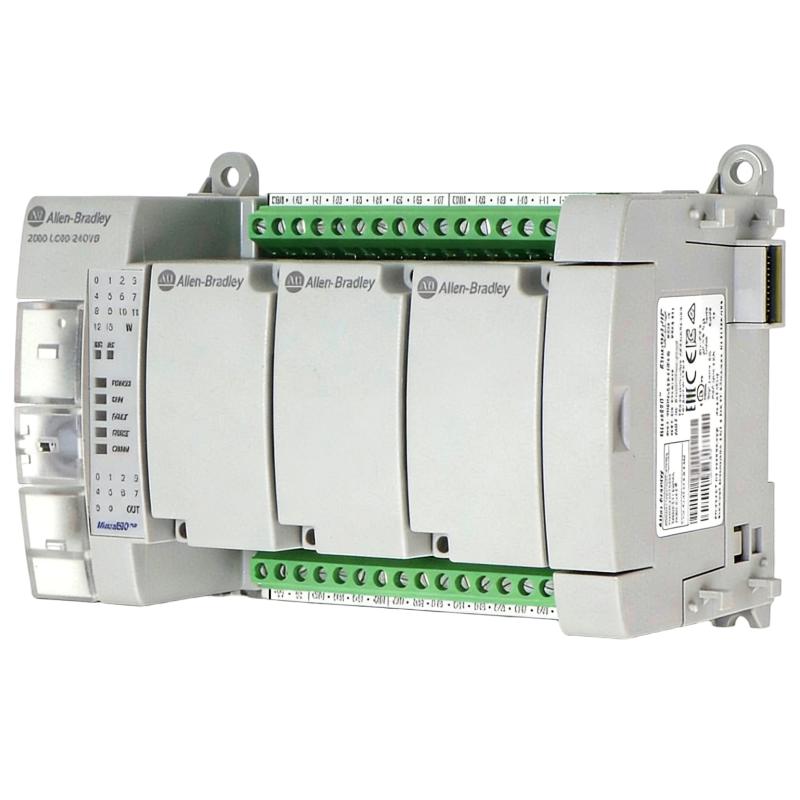

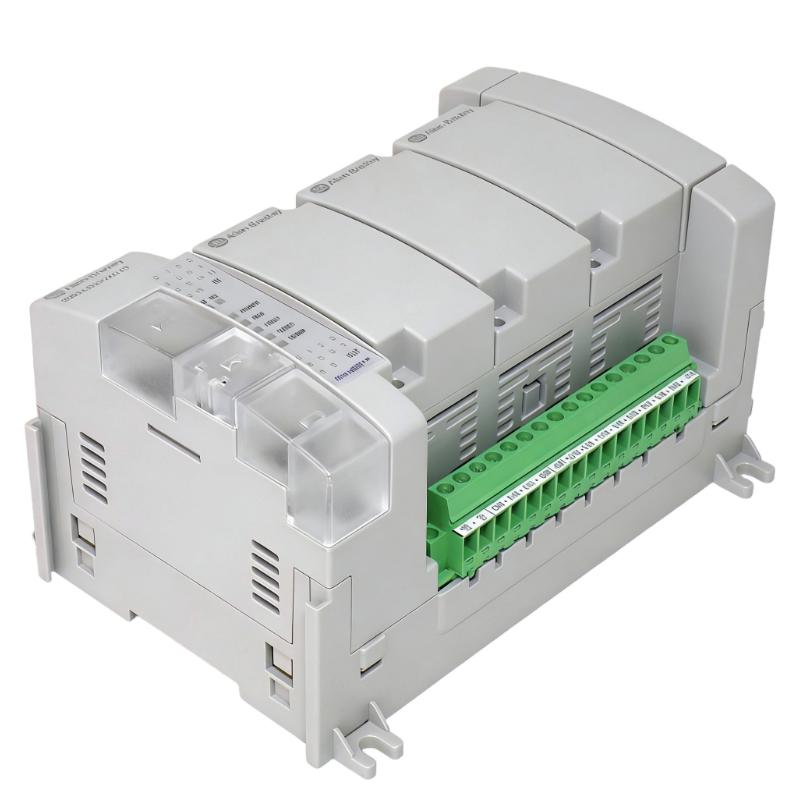

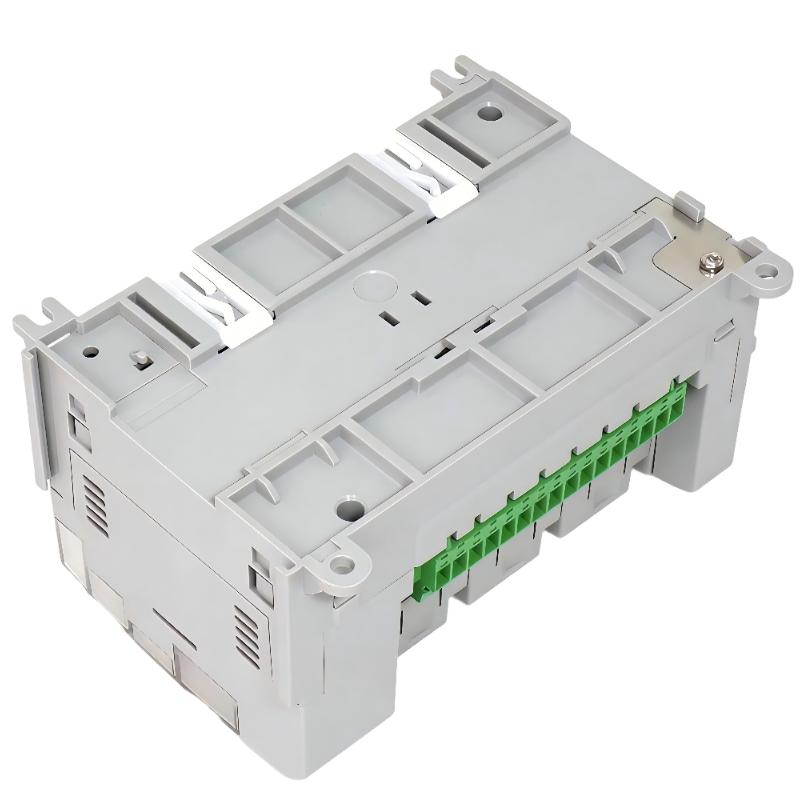

The Allen Bradley 2080-LC50-24QVB is a Micro850 series programmable logic controller (PLC) designed for compact yet high-performance industrial automation applications. It combines integrated digital I/O, Ethernet communication, and motion-ready capabilities into a single controller, making it suitable for OEM machines and modern connected production systems.
This model is widely used in packaging, conveyor systems, and small-to-medium industrial machines where network integration, flexibility, and fast control response are required.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Allen Bradley (Rockwell Automation) |
| Model Number | 2080-LC50-24QVB |
| Product Family | Micro850 |
| Controller Type | Compact PLC |
| Total I/O Points | 24 (14 inputs + 10 outputs) |
| Input Type | 24V AC/DC digital inputs |
| Output Type | 24V DC sink transistor outputs |
| High-Speed Counters | Up to 4 channels |
| Motion Control | 2 PTO (pulse train output) axes |
| Plug-in Slots | 3 expansion slots |
| Expansion I/O | Up to 4 modules supported |
| Communication Ports | Ethernet, USB, RS-232/RS-485 serial |
| Protocols | EtherNet/IP, Modbus RTU, ASCII, CIP Serial |
| Power Supply | 24V DC |
| Programming Software | Connected Components Workbench (CCW) |
| Memory | ~10–20 KB user memory |
| Mounting Type | DIN rail / panel mount |
| Protection Class | IP20 |
| Operating Temperature | -20°C to +65°C |
Physical Dimensions & Weight (L × W × H Combined)
| Parameter | Specification |
|---|---|
| Dimensions (L × W × H) | 90 × 145 × 80 mm |
| Weight | ~0.45 kg |
Recommended Related Models
The 2080-LC50-24QVB belongs to the Micro850 ecosystem and is commonly paired with expansion I/O and HMI systems for complete machine control solutions.
| Related Model | Description |
|---|---|
| 2080-LC50-16QBB | Mid-range Micro850 controller |
| 2080-LC50-24QBB | Relay output version |
| 2080-IF4 | Analog input module |
| 2080-OF2 | Analog output module |
| 2080-PS120-240 | Micro800 power supply |
| 2711R-T4T | PanelView 800 HMI |
| 1606-XLE series | Industrial power supplies |
| 2090 series cables | Micro800 communication accessories |
| 2080-MEMBAK-RTC | Memory backup module |
| 1492 wiring systems | Terminal blocks and wiring accessories |
