Introduction

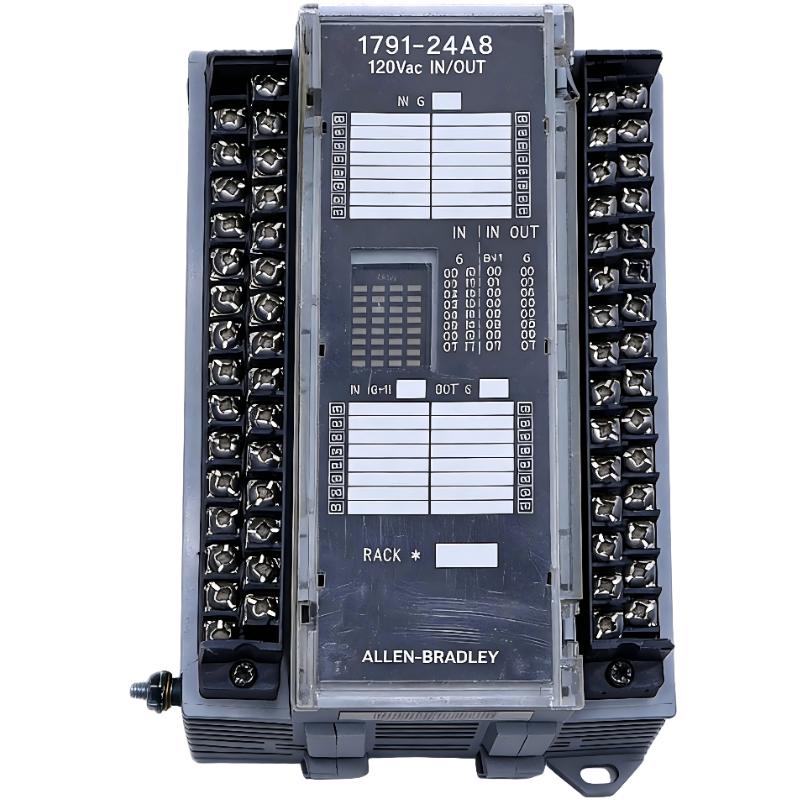

The Allen Bradley 1791-24A8 Block I/O Module is a versatile, robust solution for industrial digital I/O management. With 24 configurable channels, this module supports both input and output operations, providing reliable performance for process control, machine automation, and industrial monitoring. Its compact design and industrial-grade construction ensure seamless integration and long-term operational reliability.

Technical Specifications

Parameter	Specification
Dimensions (L x W x H)	176.5 × 98 × 110.5 mm
Weight	0.85 kg (1.87 lb)
Function	Digital Input/Output Module
Channels	24 Digital I/O Channels
Operating Voltage	24 VDC (typical)
Operating Temperature	0°C to 60°C
Mounting	Block I/O Rack / Mounting Frame
Connectivity	Digital Input/Output for Sensors and Actuators
Compliance	CE, Industrial-Grade Standards
Application	Industrial Automation, Process Control, Block I/O Expansion

Applications

The Allen Bradley 1791-24A8 Block I/O Module is a high-performance digital I/O solution designed for industrial automation systems. Common applications include:

Connecting field devices such as sensors, switches, and actuators to control systems
Expanding Block I/O and CompactBlock networks for scalable automation
Enabling process monitoring, control, and machine automation in manufacturing environments
Integrating with distributed control systems for fast and reliable signal management
Industrial environments requiring robust, compact, and dependable I/O performance

This module ensures efficient and precise data transfer between field devices and the control system.

Advantages

High Reliability: Provides consistent digital input/output operation for critical automation tasks.
Compact Industrial Design: 176.5 × 98 × 110.5 mm and 0.85 kg (1.87 lb) ideal for panel and rack installations.
Versatile Functionality: Handles both digital input and output channels in one module.
Robust Construction: Resists vibration, electrical noise, and temperature fluctuations in harsh environments.
Plug-and-Play Installation: Simplifies system expansion with minimal downtime.
Scalable System Integration: Compatible with Block I/O and CompactBlock systems for flexible automation solutions.

Technical FAQs

Q: What is the primary function of the 1791-24A8?
A: Provides combined digital input and output capabilities for industrial automation systems.
Q: How many I/O channels does it support?
A: Supports 24 digital channels, configurable for input or output.
Q: Is it compatible with existing Block I/O modules?
A: Yes, designed for seamless integration with Block I/O and CompactBlock systems.
Q: Can it operate in harsh industrial environments?
A: Yes, built to resist vibration, temperature extremes, and electrical noise.
Q: What is the typical operating voltage?
A: Typically 24 VDC for digital input and output signals.
Q: How is it mounted?
A: Installs into Block I/O racks or compatible mounting frames.
Q: Can it handle high-speed signal switching?
A: Yes, designed for fast digital input/output operations.
Q: Does it require configuration software?
A: Yes, setup and channel configuration are managed through standard Block I/O programming tools.
Q: What is the operating temperature range?
A: 0°C to 60°C, suitable for most industrial applications.
Q: What maintenance is required?
A: Minimal; periodic inspection ensures proper connection and signal integrity.
