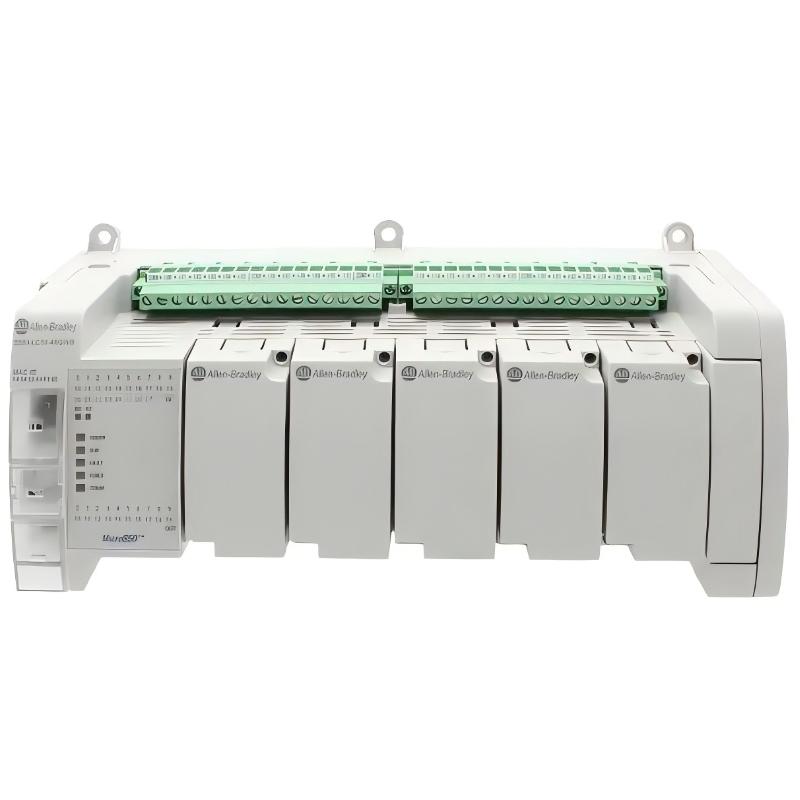

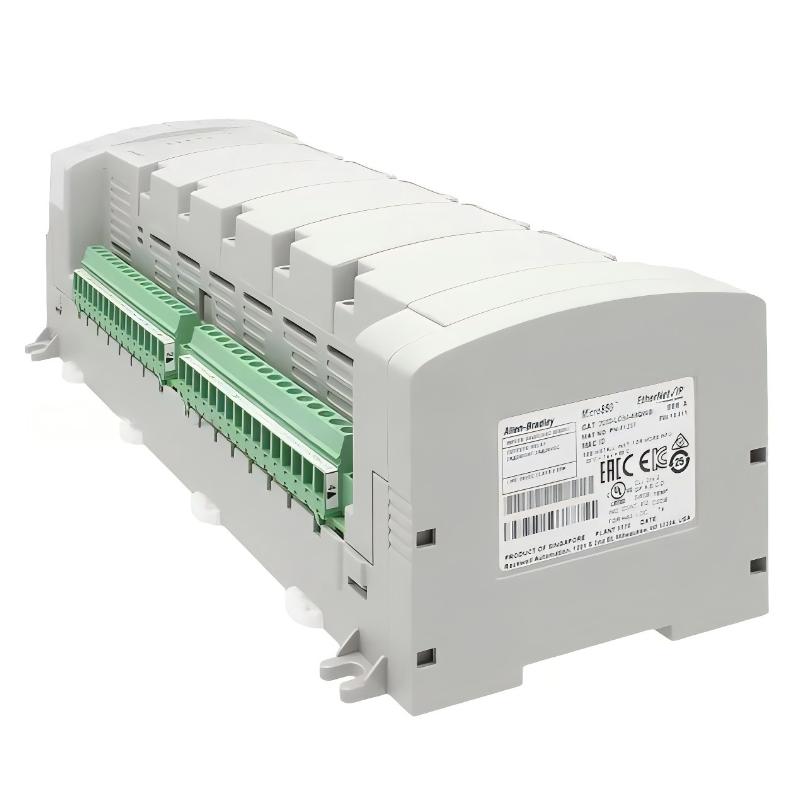

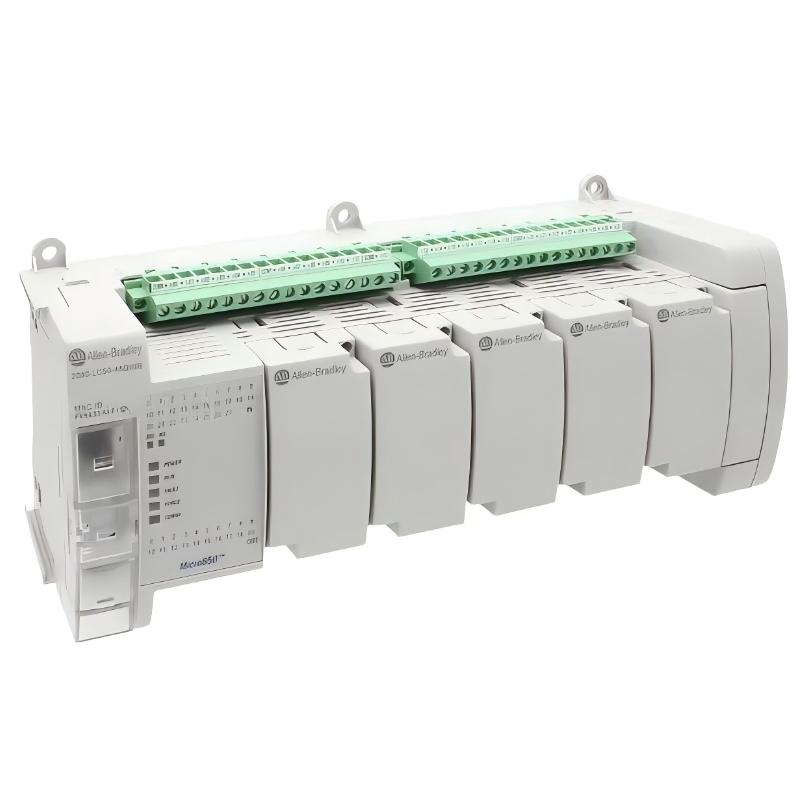

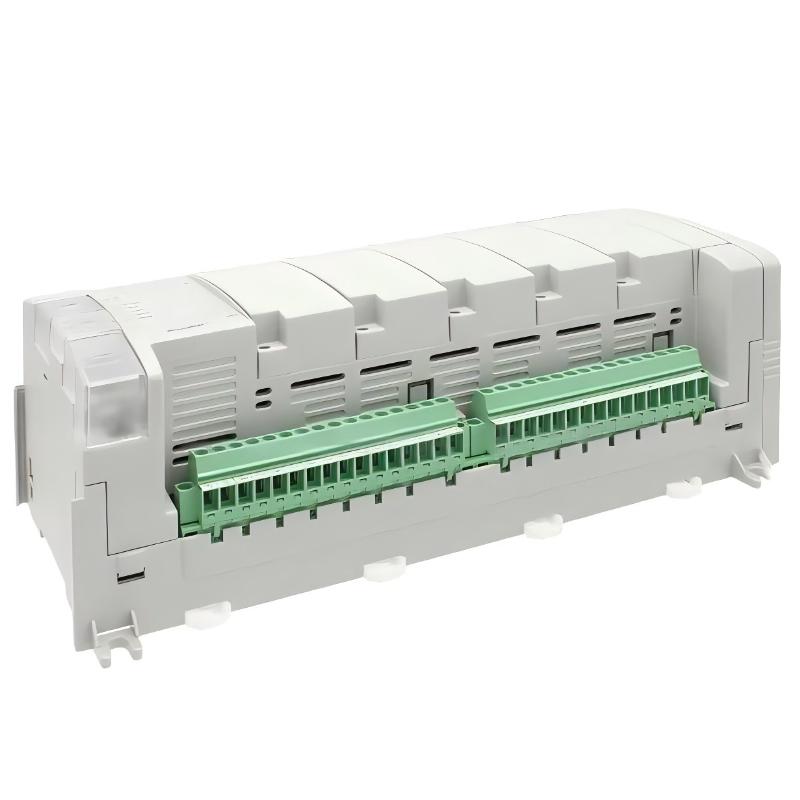

The Allen Bradley 2080-LC50-48QVB is a Micro850 series programmable logic controller (PLC) designed for high I/O density, Ethernet-based communication, and advanced compact machine control. It is engineered for OEMs and industrial automation systems that require a single controller to manage more complex sequencing, distributed signals, and multi-station machine logic.
This model is positioned at the upper end of the Micro850 family, offering expanded control capability while maintaining a compact DIN-rail footprint suitable for control panels where space and scalability both matter.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Allen Bradley (Rockwell Automation) |
| Model Number | 2080-LC50-48QVB |
| Product Family | Micro850 |
| Controller Type | Compact PLC |
| Total I/O Points | 48 (high-density Micro850 configuration) |
| Input Type | 24V AC/DC digital inputs |
| Output Type | 24V DC transistor outputs (high-speed switching) |
| Input/Output Breakdown | Typically expanded via embedded + system I/O architecture |
| Communication Ports | Ethernet, USB programming port, RS-232/RS-485 serial |
| Industrial Protocols | EtherNet/IP, Modbus RTU, ASCII, CIP Serial |
| High-Speed Counters | Supported (multi-channel, high-speed capture) |
| Motion Control | 2 PTO (pulse train output) axes support |
| Expansion Capability | Plug-in modules + Micro800 expansion I/O |
| Programming Software | Connected Components Workbench (CCW) |
| Power Supply | 24V DC |
| Mounting Type | DIN rail / panel mount |
| Protection Class | IP20 |
| Operating Temperature | -20°C to +65°C |
Physical Dimensions & Weight (L × W × H Combined)
| Parameter | Specification |
|---|---|
| Dimensions (L × W × H) | 90 × 145 × 80 mm |
| Weight | ~0.45–0.55 kg (typical Micro850 high-density unit range) |
Recommended Related Models
The 2080-LC50-48QVB is typically used in larger Micro850-based machine architectures, often paired with expansion modules and HMIs.
| Related Model | Description |
|---|---|
| 2080-LC50-24QVB | Ethernet-enabled 24 I/O controller |
| 2080-LC50-24QBB | Standard transistor output PLC |
| 2080-LC50-16QBB | Mid-range Micro850 controller |
| 2080-IF4 | Analog input expansion module |
| 2080-OF2 | Analog output module |
| 2080-PS120-240 | Power supply module |
| 2711R-T4T | PanelView 800 HMI |
| 1606-XLE Series | Industrial power supplies |
| 2080-MEMBAK-RTC | Memory backup module |
| 1492 wiring systems | Terminal blocks and wiring accessories |
