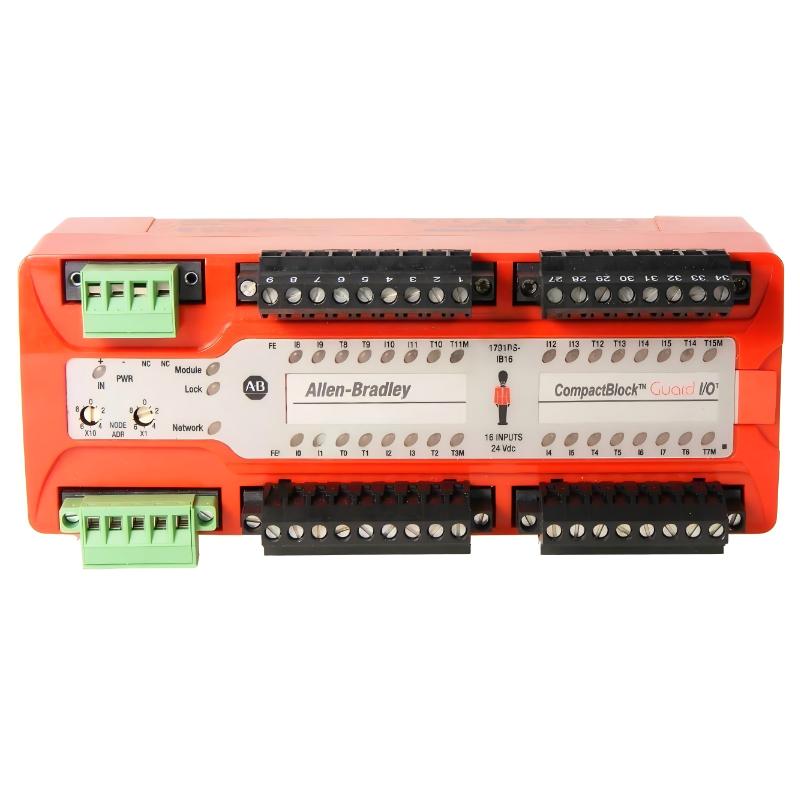

The Allen Bradley 1791DS-IB16 CompactBlock DeviceNet Secure Input Module is a high-performance, compact solution for secure digital input management in DeviceNet-enabled industrial automation. With 16 input channels and rugged construction, it provides reliable, fast, and secure input signal capture. Ideal for integration into CompactBlock LDX I/O networks, it ensures efficient and protected operation in demanding industrial environments.

Technical Specifications

Parameter	Specification
Dimensions (L x W x H)	170 × 76 × 81 mm
Weight	0.6 kg (1.32 lb)
Function	DeviceNet Secure Digital Input Module
Channels	16 Digital Input Channels
Operating Voltage	24 VDC (typical)
Operating Temperature	0°C to 60°C
Mounting	CompactBlock LDX I/O Rack
Connectivity	Digital Input to DeviceNet Network
Compliance	CE, Industrial-Grade Standards
Application	Secure Input Capture, DeviceNet Automation, Process Control

Applications

The Allen Bradley 1791DS-IB16 CompactBlock DeviceNet Secure Input Module is designed for high-integrity digital input acquisition in networked industrial automation systems. Typical applications include:

Capturing and transmitting secure digital input signals from sensors and field devices
Integration into DeviceNet-enabled CompactBlock LDX I/O networks for industrial automation
Monitoring critical machinery and processes in real-time
Ensuring secure and reliable input communication in distributed control systems
Industrial environments where robust, reliable, and secure I/O operation is critical

This module ensures reliable, secure input data transmission across DeviceNet networks for optimized process control.

Advantages

High Security and Reliability: Protects and accurately captures input signals in demanding industrial applications.
Compact Industrial Design: 170 × 76 × 81 mm and 0.6 kg (1.32 lb), ideal for tight installation spaces.
DeviceNet Integration: Fully compatible with DeviceNet networks for secure and efficient communication.
Fast Response Time: Ensures rapid digital input detection for real-time automation.
Rugged Construction: Resistant to vibration, electrical interference, and temperature extremes.
Plug-and-Play Installation: Quick and easy setup for system expansion or replacement.

Technical FAQs

Q: What is the primary function of the 1791DS-IB16?
A: Provides 16 secure digital input channels for DeviceNet-based industrial automation systems.
Q: Is it compatible with other CompactBlock modules?
A: Yes, integrates seamlessly with CompactBlock LDX I/O networks.
Q: What types of devices can it interface with?
A: Supports standard digital sensors, switches, and other field input devices.
Q: How is it connected to the network?
A: Connects via DeviceNet for secure and reliable communication.
Q: What is the operating voltage?
A: Typically 24 VDC for digital input signals.
Q: Can it operate in harsh industrial conditions?
A: Yes, designed for vibration, electrical noise, and temperature fluctuations.
Q: How is it mounted?
A: Easily installs into CompactBlock LDX I/O racks.
Q: Does it support high-speed input detection?
A: Yes, optimized for rapid signal acquisition in real-time control.
Q: Is configuration software required?
A: Yes, setup and channel configuration are performed via standard DeviceNet and CompactBlock programming tools.
Q: What maintenance is required?
A: Minimal; periodic inspection ensures proper signal integrity and operational reliability.
