Introduction

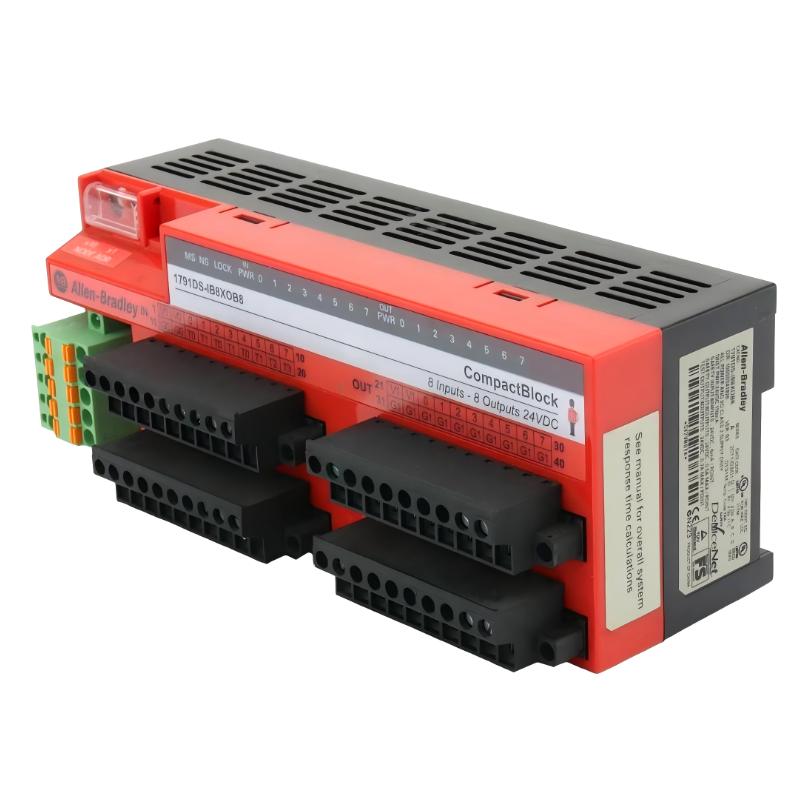

The Allen Bradley 1791DS-IB8XOB8 DeviceNet Safety CompactBlock Input Module is a robust, high-performance solution for safety-critical digital input management in industrial automation. With 8 safety inputs and 8 output channels, it ensures accurate, reliable, and fast signal acquisition. Designed for DeviceNet networks and compact control panel integration, it provides secure operation in demanding safety-focused industrial applications.

Technical Specifications

Parameter	Specification
Dimensions (L x W x H)	170 × 68.15 × 73.3 mm
Weight	0.43 kg (0.95 lb)
Function	DeviceNet Safety Digital Input Module
Channels	8 Safety Inputs / 8 Outputs
Operating Voltage	24 VDC (typical)
Operating Temperature	0°C to 60°C
Mounting	CompactBlock LDX I/O Rack
Connectivity	Safety Inputs/Outputs to DeviceNet Network
Compliance	SIL-rated, CE, Industrial-Grade Standards
Application	Safety Automation, Machine Protection, Process Control

Applications

The Allen Bradley 1791DS-IB8XOB8 DeviceNet Safety CompactBlock Input Module is engineered for secure, high-integrity digital input in safety-critical industrial automation systems. Typical applications include:

Capturing safety-critical signals from sensors, emergency stops, and safety interlocks
Integration into DeviceNet-enabled CompactBlock LDX I/O networks for industrial safety applications
Monitoring machinery and processes with SIL-rated or safety-compliant systems
Distributed control systems requiring both reliable and secure input acquisition
Industrial environments where safety, reliability, and fast response are essential

This module ensures that safety-critical signals are accurately captured and transmitted for optimal process protection.

Advantages

Safety-Critical Design: Meets stringent industrial safety requirements, ideal for SIL applications.
Compact and Lightweight: 170 × 68.15 × 73.3 mm and 0.43 kg (0.95 lb), perfect for space-constrained control panels.
DeviceNet Compatibility: Fully integrated with DeviceNet networks for safe, efficient communication.
Fast and Reliable: Ensures rapid detection and transmission of safety signals.
Industrial Durability: Resistant to vibration, electrical noise, and temperature fluctuations.
Plug-and-Play Installation: Quick deployment and simple integration with existing systems.

Technical FAQs

Q: What is the primary function of the 1791DS-IB8XOB8?
A: Provides 8 safety-critical digital input channels and 8 standard output channels for DeviceNet automation systems.
Q: Is it compatible with other CompactBlock modules?
A: Yes, it integrates seamlessly with DeviceNet-enabled CompactBlock LDX I/O networks.
Q: What types of devices can it interface with?
A: Supports safety sensors, emergency stops, switches, actuators, and other field devices.
Q: What is the operating voltage?
A: Typically 24 VDC for digital input and output signals.
Q: Can it operate in harsh industrial conditions?
A: Yes, designed to withstand vibration, electrical noise, and temperature extremes.
Q: How is it mounted?
A: Easily installs into CompactBlock LDX I/O racks.
Q: Does it support high-speed safety signal detection?
A: Yes, optimized for rapid, secure input acquisition for real-time safety control.
Q: Is configuration software required?
A: Yes, setup and channel configuration are performed via standard DeviceNet and CompactBlock programming tools.
Q: What safety compliance does it support?
A: Designed for SIL-rated applications and meets relevant industrial safety standards.
Q: What maintenance is required?
A: Minimal; periodic inspection ensures proper signal integrity and safe operation.
