Introduction

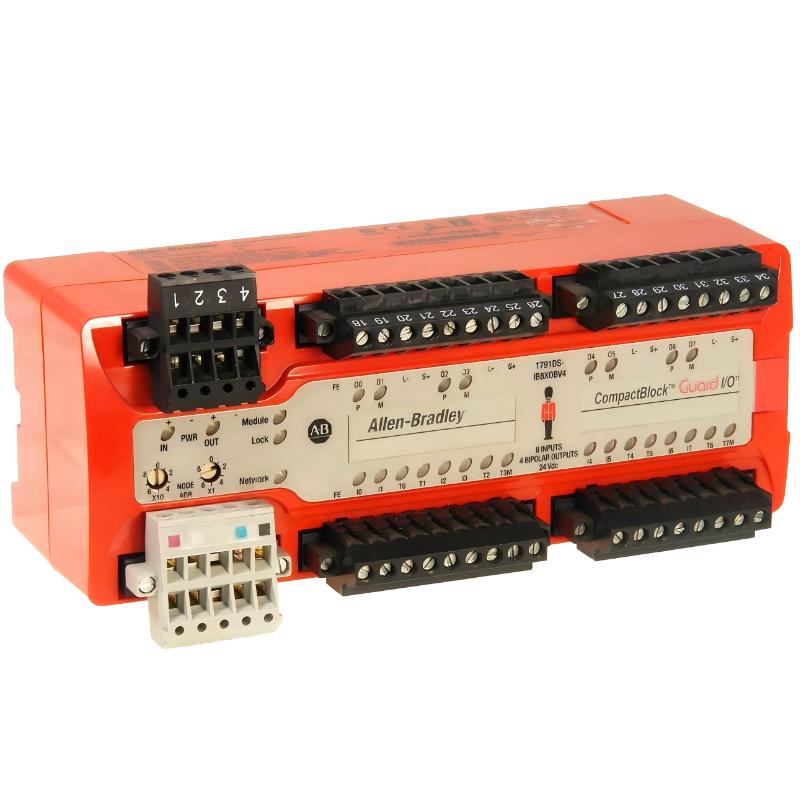

The Allen Bradley 1791DS-IB8XOBV4 DeviceNet Safety CompactBlock Input Module is a high-performance, safety-certified solution for managing digital inputs in industrial automation. With 8 safety inputs and 8 output channels, it delivers fast, reliable, and secure signal acquisition. Fully compatible with DeviceNet networks and CompactBlock LDX I/O systems, it supports efficient and safe operation in demanding industrial environments.

Technical Specifications

Parameter	Specification
Dimensions (L x W x H)	170 × 76 × 81 mm
Weight	0.6 kg (1.32 lb)
Function	DeviceNet Safety Digital Input Module
Channels	8 Safety Inputs / 8 Outputs
Operating Voltage	24 VDC (typical)
Operating Temperature	0°C to 60°C
Mounting	CompactBlock LDX I/O Rack
Connectivity	Safety Inputs/Outputs to DeviceNet Network
Compliance	SIL-rated, CE, Industrial-Grade Standards
Application	Safety Automation, Machine Protection, Process Control

Applications

The Allen Bradley 1791DS-IB8XOBV4 DeviceNet Safety CompactBlock Input Module is designed for high-integrity, safety-critical input in modern industrial automation systems. Typical applications include:

Capturing signals from safety devices such as emergency stops, safety interlocks, and safety sensors
Integration into DeviceNet-enabled CompactBlock LDX I/O networks for safety automation
Real-time monitoring of safety-critical processes and machinery
Distributed control systems requiring secure, fast, and reliable input acquisition
Industrial environments where safety, compliance, and system integrity are paramount

This module ensures that safety-critical signals are transmitted accurately and reliably for optimized industrial protection.

Advantages

Safety-Certified Design: Meets stringent industrial safety standards, suitable for SIL-rated applications.
Compact Industrial Profile: 170 × 76 × 81 mm and 0.6 kg (1.32 lb), ideal for space-constrained control panels.
DeviceNet Network Integration: Enables secure and efficient communication with DeviceNet networks.
Rapid and Reliable: High-speed detection ensures prompt response to safety events.
Durable Construction: Resistant to vibration, temperature extremes, and electrical noise.
Simplified Installation: Plug-and-play deployment reduces setup time and system downtime.

Technical FAQs

Q: What is the primary function of the 1791DS-IB8XOBV4?
A: Provides 8 safety-critical digital input channels and 8 standard output channels for DeviceNet safety automation systems.
Q: Is it compatible with other CompactBlock modules?
A: Yes, fully compatible with DeviceNet-enabled CompactBlock LDX I/O networks.
Q: What types of devices can it interface with?
A: Supports safety sensors, emergency stops, actuators, switches, and other field devices.
Q: What is the operating voltage?
A: Typically 24 VDC for digital input and output signals.
Q: Can it operate in harsh industrial environments?
A: Yes, designed to handle vibration, electrical noise, and temperature fluctuations.
Q: How is it mounted?
A: Installs into CompactBlock LDX I/O racks with ease.
Q: Does it support high-speed safety signal detection?
A: Yes, optimized for rapid, secure input acquisition in real-time safety applications.
Q: Is configuration software required?
A: Yes, setup and channel configuration are performed via standard DeviceNet and CompactBlock programming tools.
Q: What safety compliance does it support?
A: Designed for SIL-rated applications and meets relevant industrial safety standards.
Q: What maintenance is required?
A: Minimal; periodic inspections ensure proper signal integrity and safe operation.
