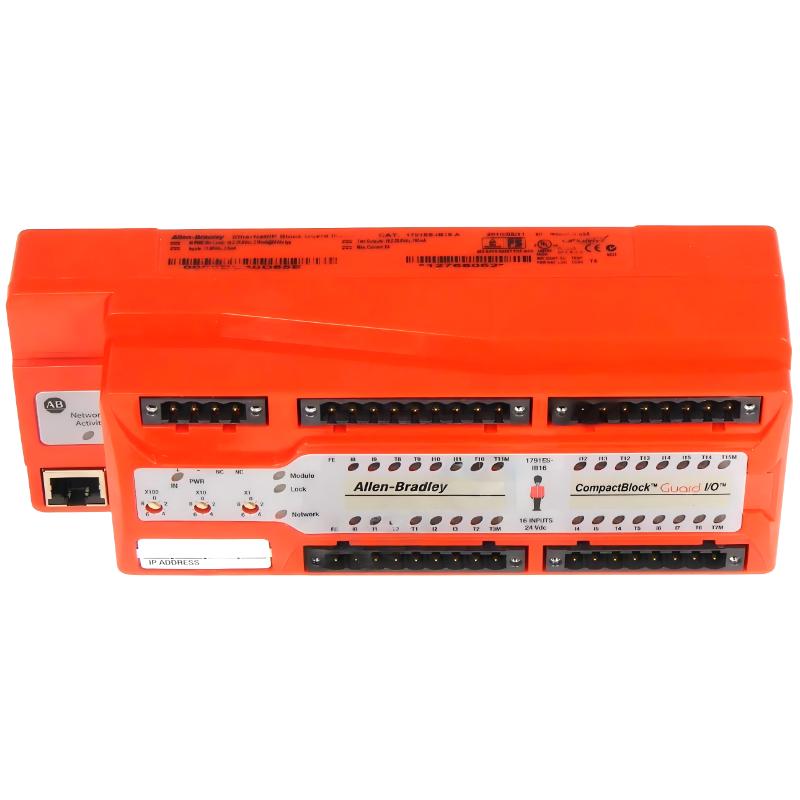

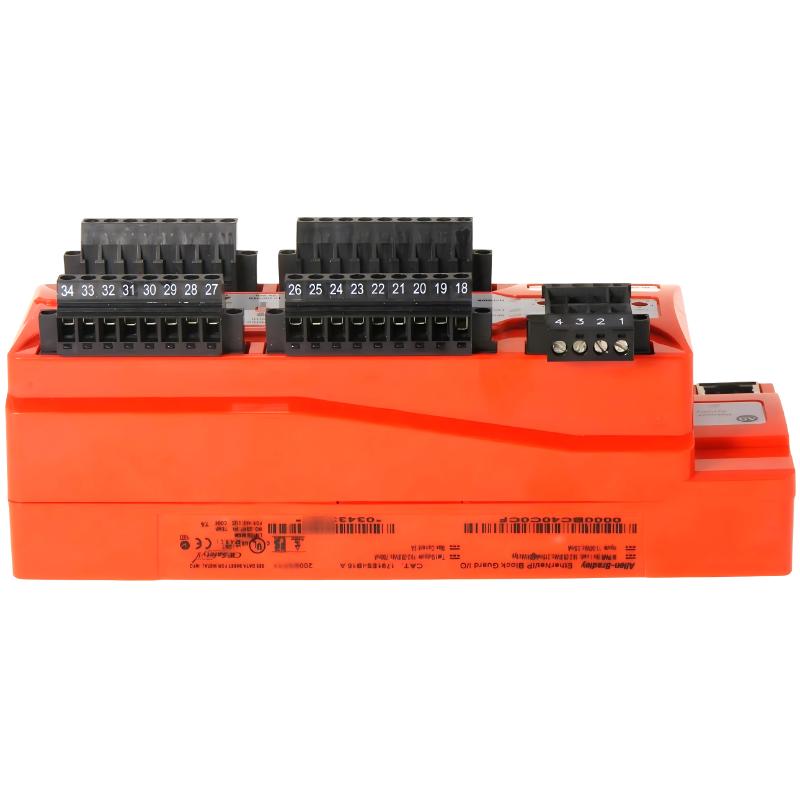

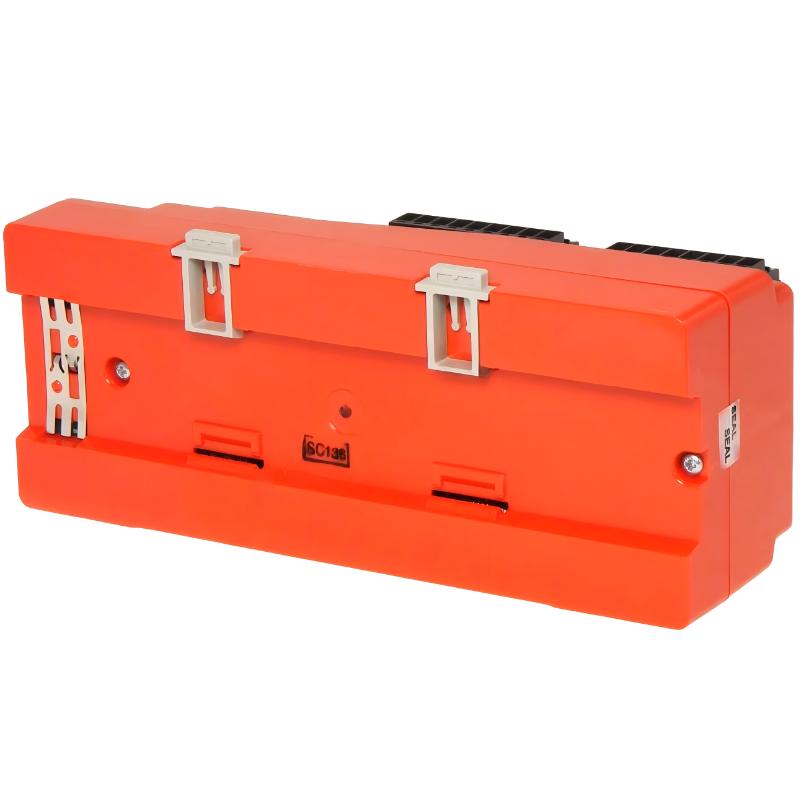

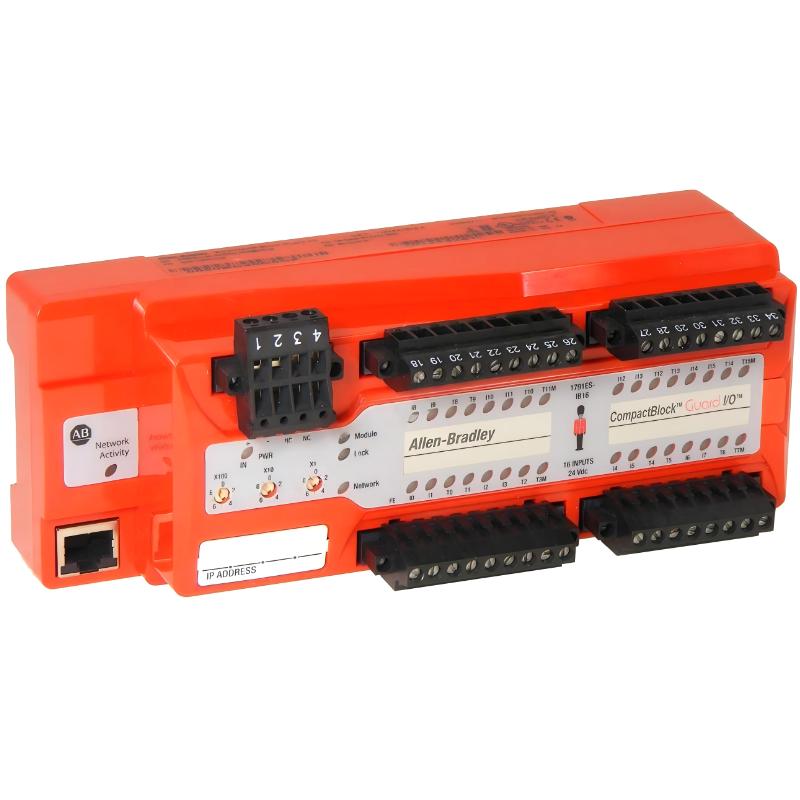

Allen Bradley 1791ES-IB16 EtherNet/IP Secure Compact Block Input Module
Allen Bradley 1791ES-IB16 EtherNet/IP Secure Compact Block Input Module
0.0
Points
Brand:Allen Bradley PLC Item No.:1791ES-IB16 Product Origin:USA Product Dimensions:196 x 77 x 80 mm Product Weight:0.6 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 1791ES-IB16 EtherNet/IP Secure CompactBlock Input Module is a high-performance solution for secure digital input acquisition in industrial automation. With 16 input channels and rugged industrial-grade construction, it provides reliable and fast signal capture. Ideal for integration into EtherNet/IP networks and CompactBlock LDX I/O systems, this module supports efficient, secure, and reliable operation in demanding industrial environments.
Technical Specifications
Parameter
Specification
Dimensions (L x W x H)
196 × 77 × 80 mm
Weight
0.6 kg (1.32 lb)
Function
EtherNet/IP Secure Digital Input Module
Channels
16 Digital Input Channels
Operating Voltage
24 VDC (typical)
Operating Temperature
0°C to 60°C
Mounting
CompactBlock LDX I/O Rack
Connectivity
Digital Input to EtherNet/IP Network
Compliance
CE, Industrial-Grade Standards
Application
Secure Input Capture, Machine Control, Process Automation
Applications
The Allen Bradley 1791ES-IB16 EtherNet/IP Secure CompactBlock Input Module is designed for secure, high-performance digital input acquisition in networked industrial automation systems. Typical applications include:
Capturing signals from sensors, switches, and field devices in safety- and mission-critical processes
Integration into EtherNet/IP-enabled CompactBlock LDX I/O networks for scalable automation
Real-time monitoring of industrial machinery and distributed control systems
Secure communication in environments requiring reliable, encrypted, or high-integrity input data
Industrial facilities where system integrity, speed, and security are paramount
This module ensures accurate, secure input signal transmission for optimized process control.
Advantages
Secure and Reliable: Ensures integrity and protection of digital input signals for critical industrial applications.
Compact Design: 196 × 77 × 80 mm and 0.6 kg (1.32 lb), ideal for space-constrained control panels.
EtherNet/IP Integration: Seamless communication with EtherNet/IP networks for secure data exchange.
High-Speed Input Detection: Rapid acquisition of digital signals for real-time system response.
Industrial Durability: Resistant to vibration, electrical noise, and temperature fluctuations.
Plug-and-Play Installation: Simplifies deployment and minimizes system downtime.
Technical FAQs
Q: What is the primary function of the 1791ES-IB16? A: Provides 16 secure digital input channels for EtherNet/IP-enabled industrial automation systems.
Q: Is it compatible with other CompactBlock modules? A: Yes, fully integrates with EtherNet/IP-enabled CompactBlock LDX I/O networks.
Q: What types of devices can it interface with? A: Supports standard digital sensors, switches, and other field input devices.
Q: How does it connect to the network? A: Uses EtherNet/IP for secure and reliable data communication.
Q: What is the operating voltage? A: Typically 24 VDC for digital input signals.
Q: Can it operate in harsh industrial environments? A: Yes, designed to withstand vibration, electrical noise, and temperature extremes.
Q: How is it mounted? A: Easily installs into CompactBlock LDX I/O racks.
Q: Does it support high-speed input detection? A: Yes, optimized for rapid, secure input acquisition for real-time control.
Q: Is configuration software required? A: Yes, setup and channel configuration are managed via standard EtherNet/IP and CompactBlock programming tools.
Q: What maintenance is required? A: Minimal; periodic inspections ensure proper signal integrity and reliable operation.
