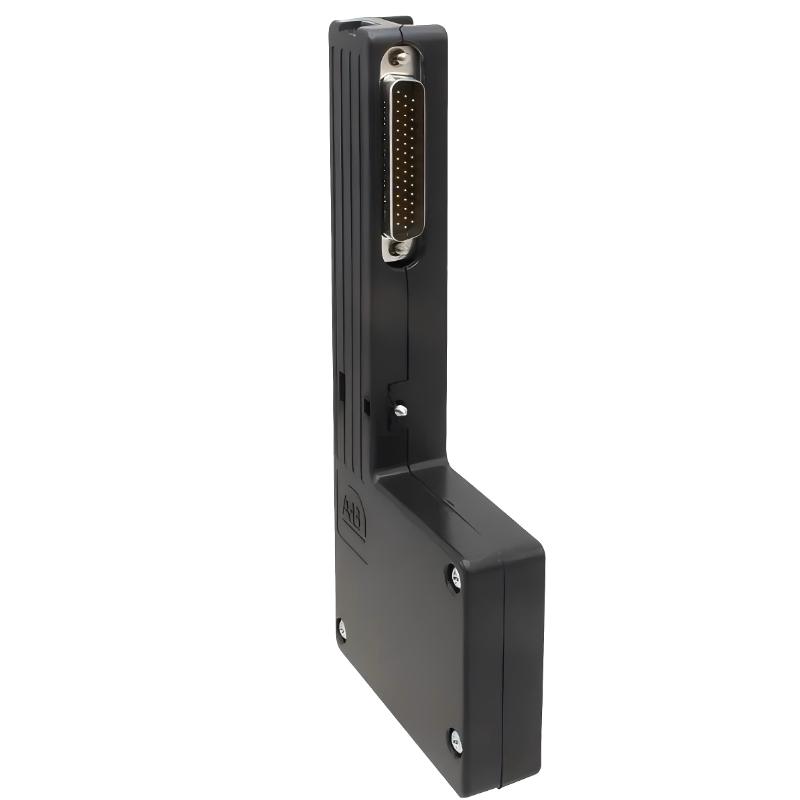

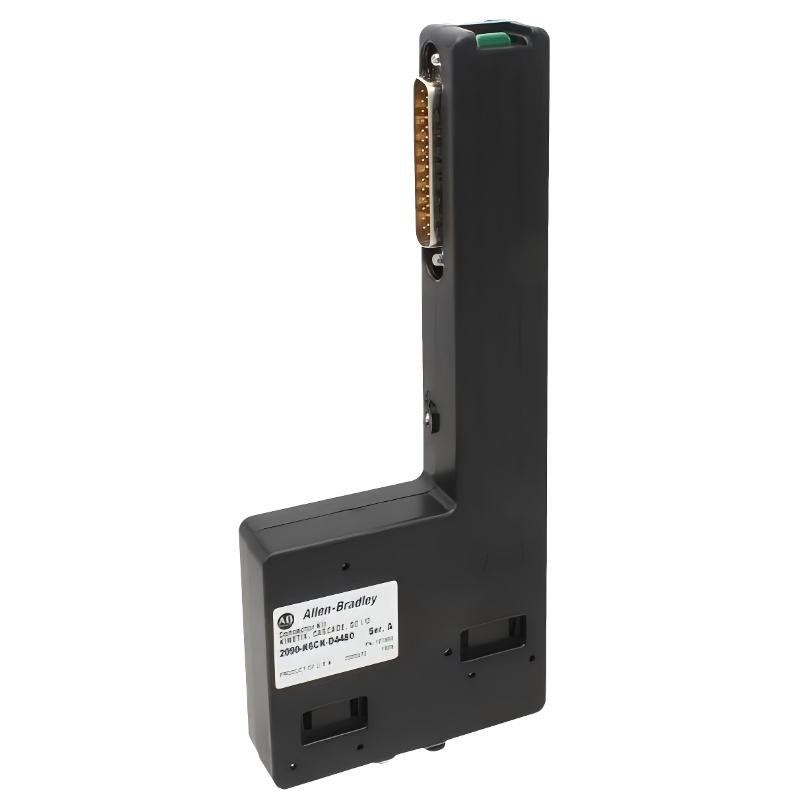

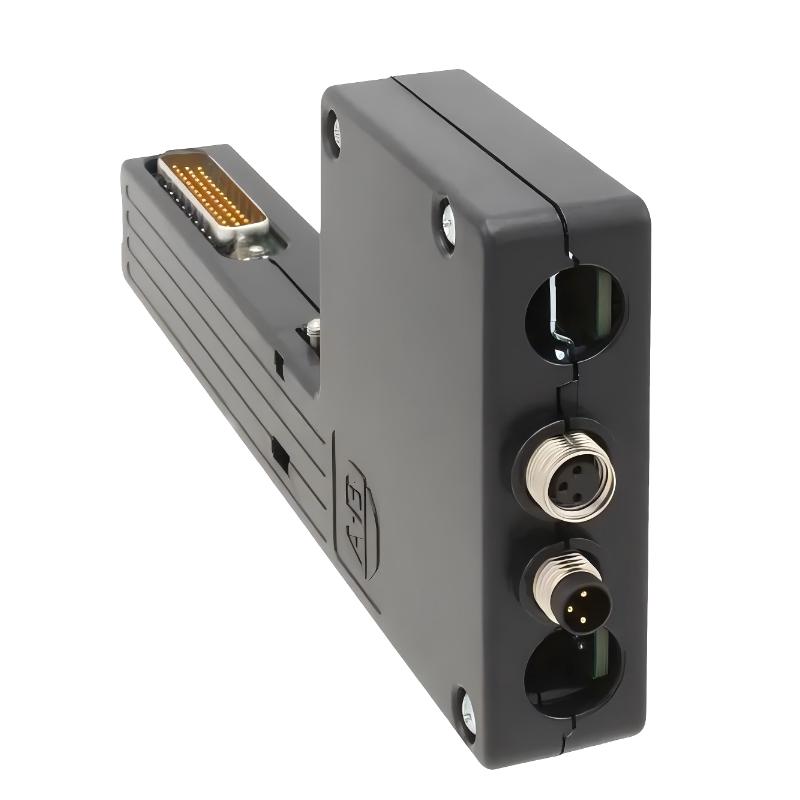

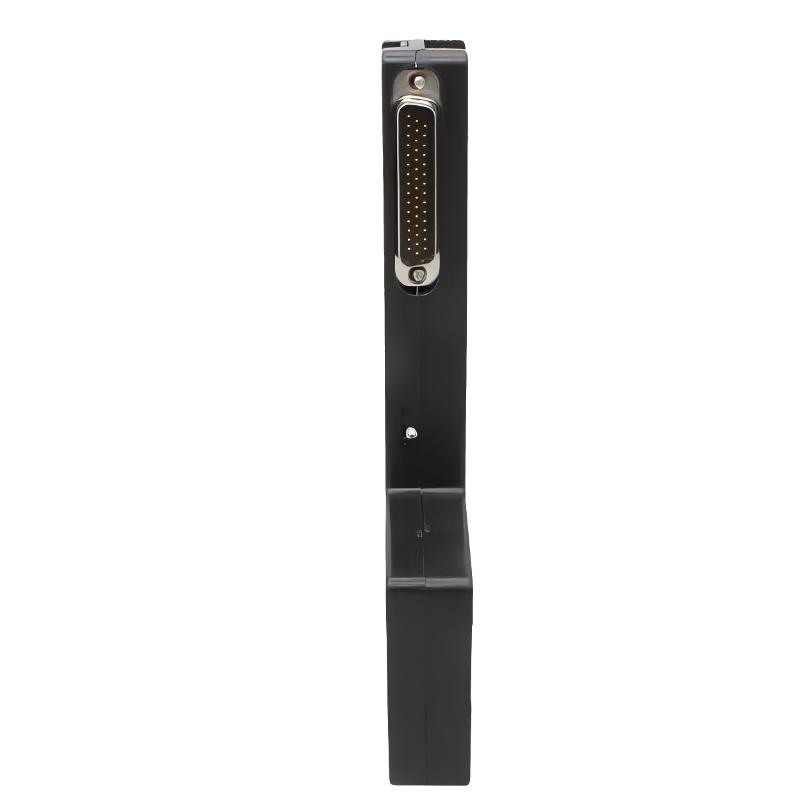

The Allen Bradley 2090-K6CK-D44S0 is a Kinetix 6000 / 6200 / 6500 servo drive connector kit designed for Safe Torque-Off (STO) cascading and I/O interfacing in advanced motion control systems.
It is part of the 2090 Kinetix motion accessories family, and is used to simplify wiring between servo drives and control systems while maintaining high signal integrity and safety compliance in multi-axis industrial automation architectures.
This model is typically found in robotics, packaging machines, CNC systems, and synchronized motion platforms, where safe shutdown and reliable signal distribution are critical.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Allen Bradley (Rockwell Automation) |
| Model Number | 2090-K6CK-D44S0 |
| Product Family | Kinetix Motion Accessories (2090 Series) |
| Product Type | Servo Connector Kit |
| Compatible Drives | Kinetix 6200 / 6500 / 6000 systems |
| Connector Type | 44-pin D-Sub interface |
| Function | Safe Torque-Off (STO) cascading + I/O signal connection |
| Application | Multi-axis servo drive signal distribution |
| Safety Function | STO cascading (drive safety chain integration) |
| Wiring Concept | Modular low-profile connector design |
| Shielding | Industrial EMI protection design |
| Mounting | Drive-side connector interface |
| System Integration | Logix / Integrated Motion architecture |
| Operating Environment | Industrial motion control systems |
Physical Dimensions & Weight (L × W × H Combined)
| Parameter | Specification |
|---|---|
| Dimensions (L × W × H) | Approx. 180 × 70 × 50 mm (typical connector kit envelope; varies by configuration) |
| Weight | ~0.1 – 0.3 kg |
Recommended Related Models
The 2090-K6CK-D44S0 is used within the broader Kinetix servo ecosystem where safety and multi-axis coordination are required.
| Related Model | Description |
|---|---|
| 2090-K6CK-D15M | Motor feedback connector kit |
| 2090-K6CK-D26M | I/O connector kit variant |
| 2090-K6CK-KENDAT | Encoder feedback connector support |
| Kinetix 6200 Drive Series | SERCOS-based servo drives |
| Kinetix 6500 Drive Series | EtherNet/IP motion platform |
| 2090 motor power cables | Servo motor power wiring |
| 2090 feedback cables | Encoder feedback connections |
| 2198-Kinetix series | Newer servo drive generation |
| 1756-L7x / L8x | ControlLogix motion controllers |
| 1734-AENTR | Distributed I/O adapter |
