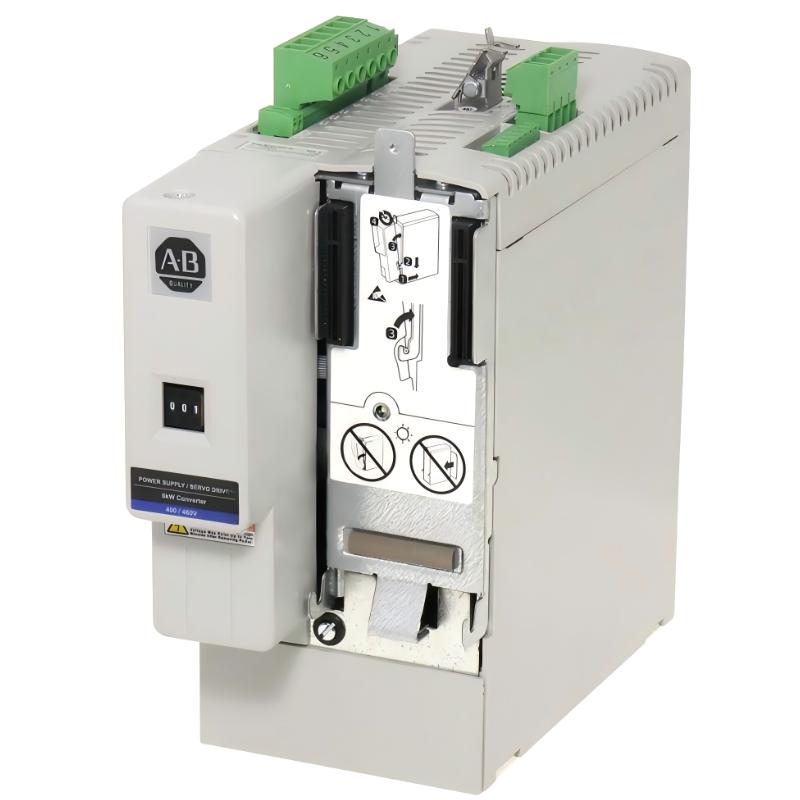

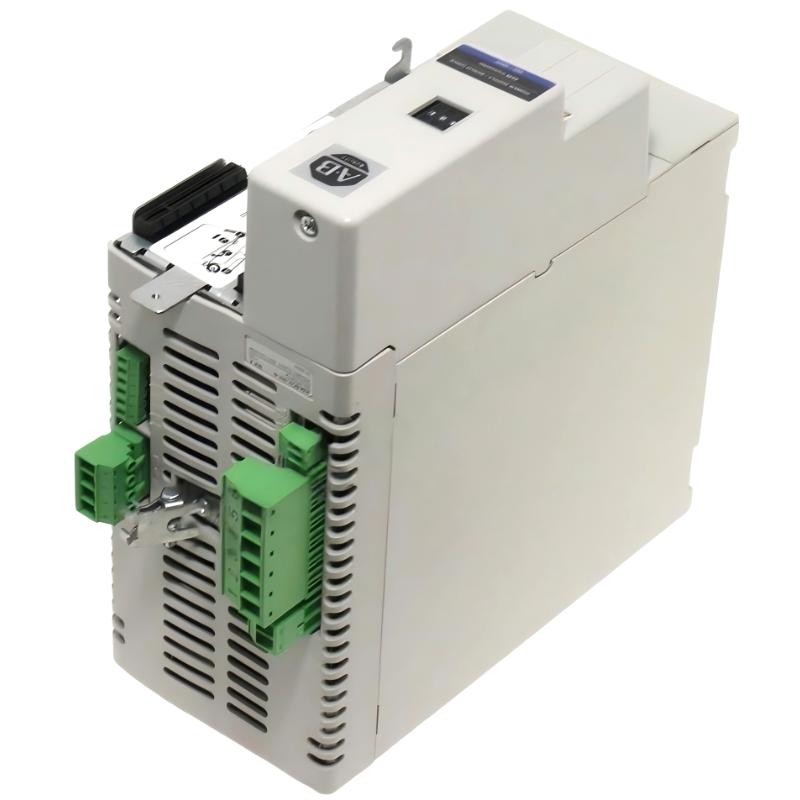

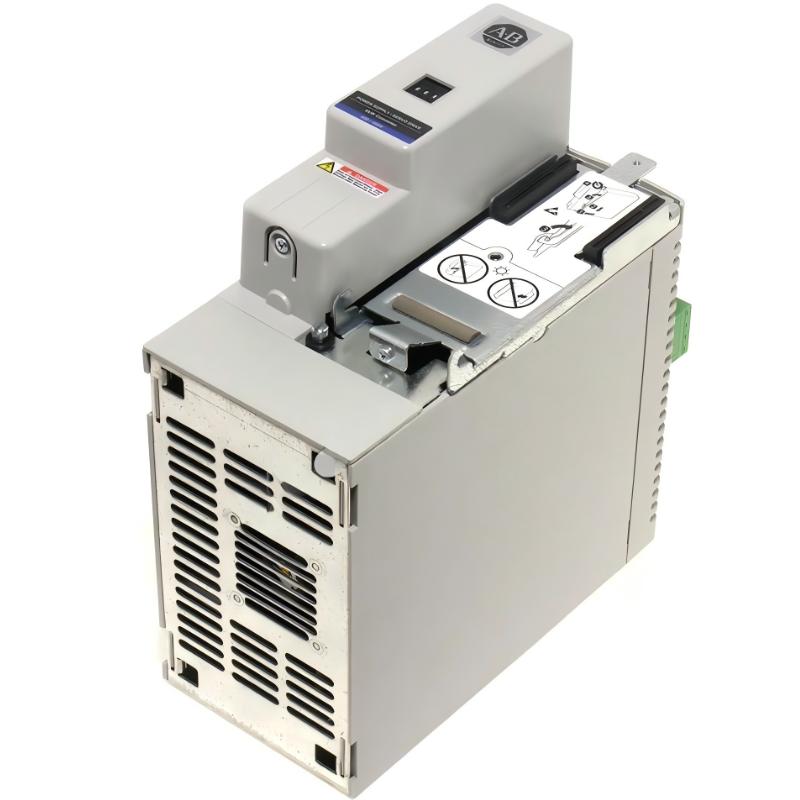

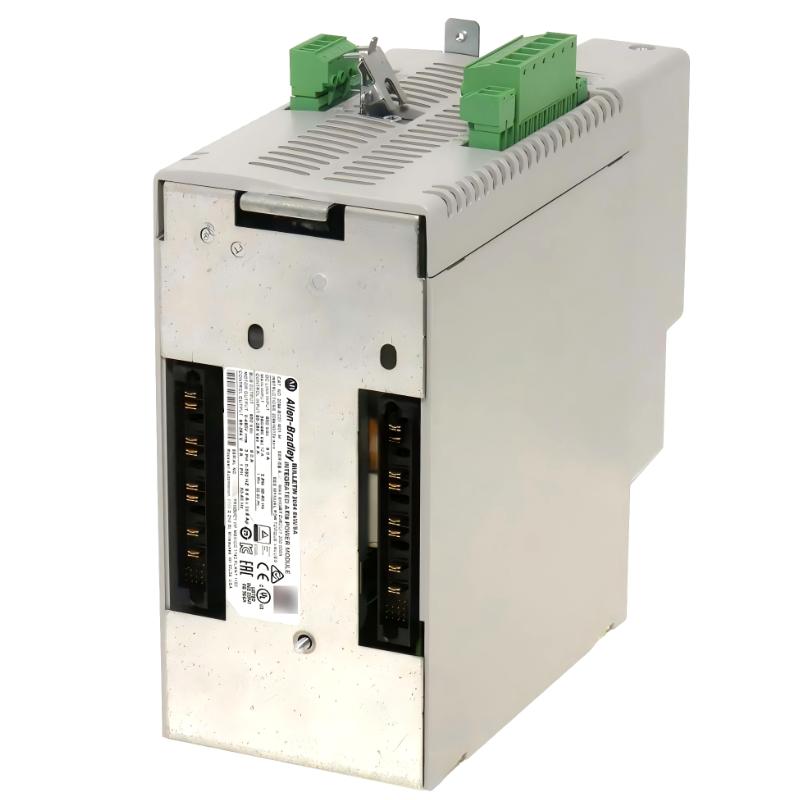

The Allen Bradley 2094-BC01-M01-M is an Integrated Axis Module (IAM) from the Kinetix 6200/6500 servo drive family, designed for high-performance multi-axis motion control applications. It combines a power converter and inverter stage into a single modular unit, enabling precise servo control in coordinated automation systems.
This module is widely used in CNC machinery, robotics, packaging lines, and synchronized motion platforms, where high dynamic response and integrated safety features are required.
It supports 460V-class industrial power systems and is engineered for integration with Rockwell Automation Logix-based controllers for seamless motion coordination.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Allen Bradley (Rockwell Automation) |
| Model Number | 2094-BC01-M01-M |
| Product Family | Kinetix 6200 / 6500 |
| Module Type | Integrated Axis Module (Power Module) |
| Input Voltage | 360–480V AC, 3-phase |
| Converter Power Rating | 6 kW |
| Inverter Output Current | 9 A |
| Output Power | ~3.9 kW |
| Drive Architecture | Modular multi-axis system |
| Safety Function | Safe Torque-Off (STO) support |
| Communication System | Integrated Motion (Logix-based control) |
| Cooling Method | Forced air (cabinet-integrated) |
| Mounting Type | Rack-mounted Kinetix chassis system |
| Operating Temperature | 0°C to 50°C |
| Protection Class | Industrial cabinet installation (IP20 system level) |
2094-BC01-M01-M
Physical Dimensions & Weight (L × W × H Combined)
| Parameter | Specification |
|---|---|
| Dimensions (L × W × H) | 125 × 302 × 336 mm |
| Weight | 5.6 – 5.7 kg |
Recommended Related Models
The 2094-BC01-M01-M is part of a modular Kinetix motion system and typically operates with control and accessory modules.
| Related Model | Description |
|---|---|
| 2094-SE02F-M00-S0 | System module / control interface |
| 2094-PRF / Kinetix 6000 accessories | Power rail and system components |
| 2090-K6CK-D44S0 | Safe Torque-Off connector kit |
| 2198-H series | Newer Kinetix 5500/5700 servo drives |
| 1756-L8x | ControlLogix motion controller |
| 5069-L320ER | CompactLogix controller |
| 2198-Kinetix motors | Servo motor series |
| 2090 motor cables | Power and feedback wiring |
| 1734-AENTR | Distributed I/O adapter |
| 1606-XLE series | Industrial power supply units |
