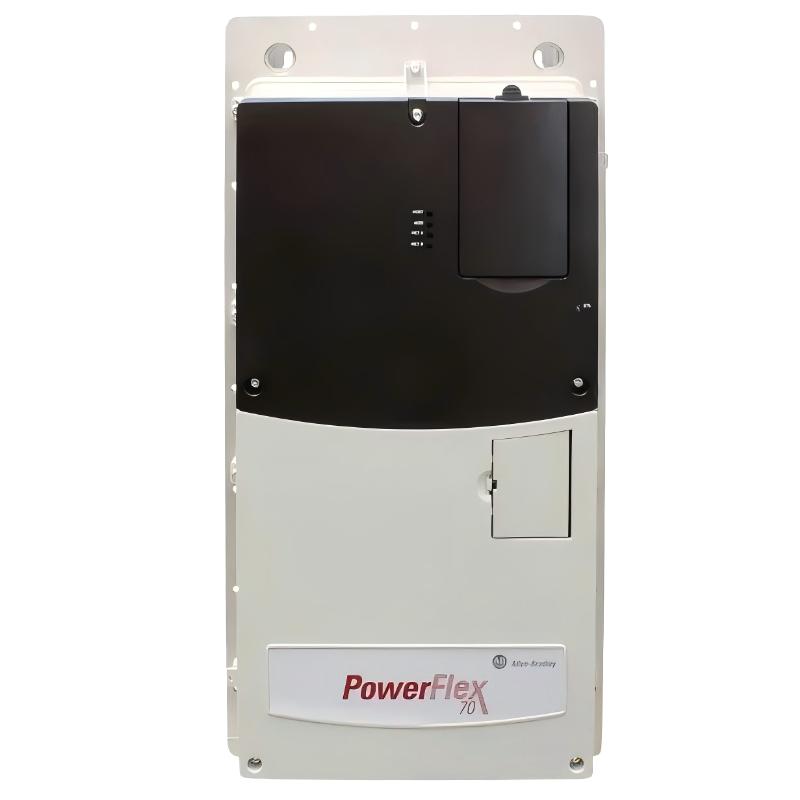

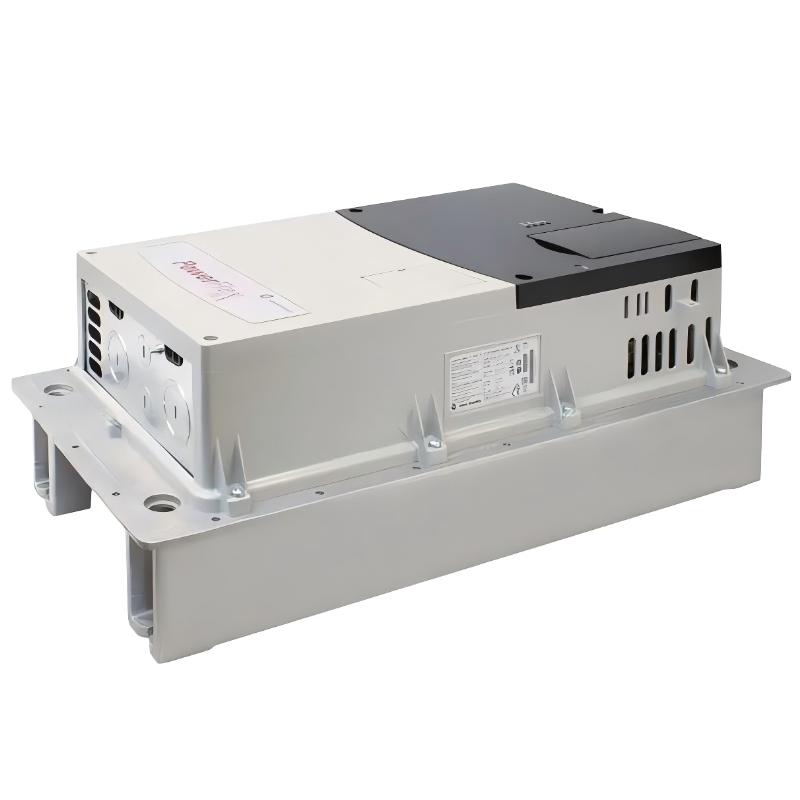

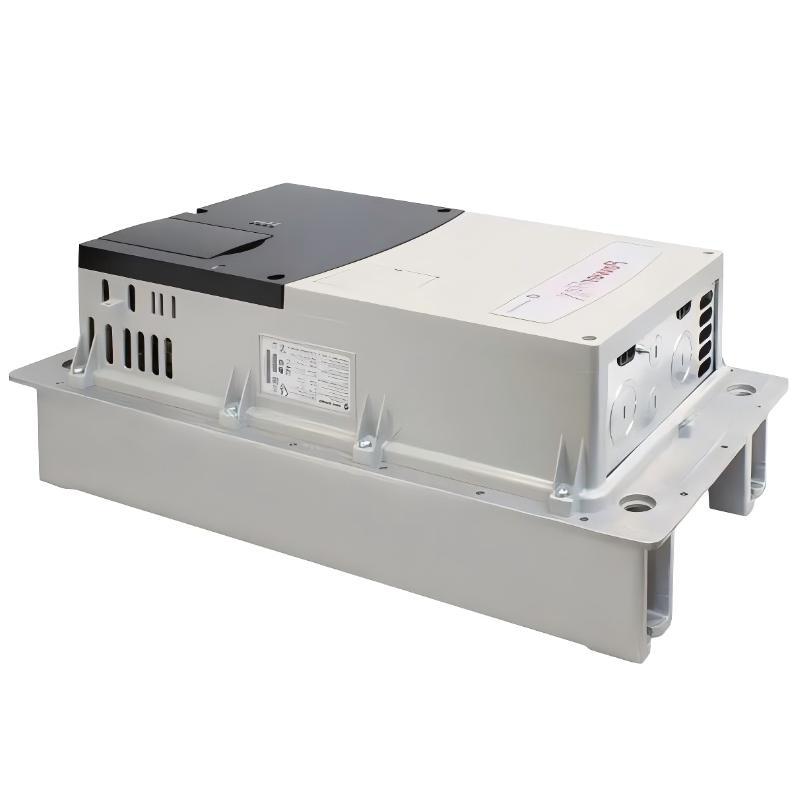

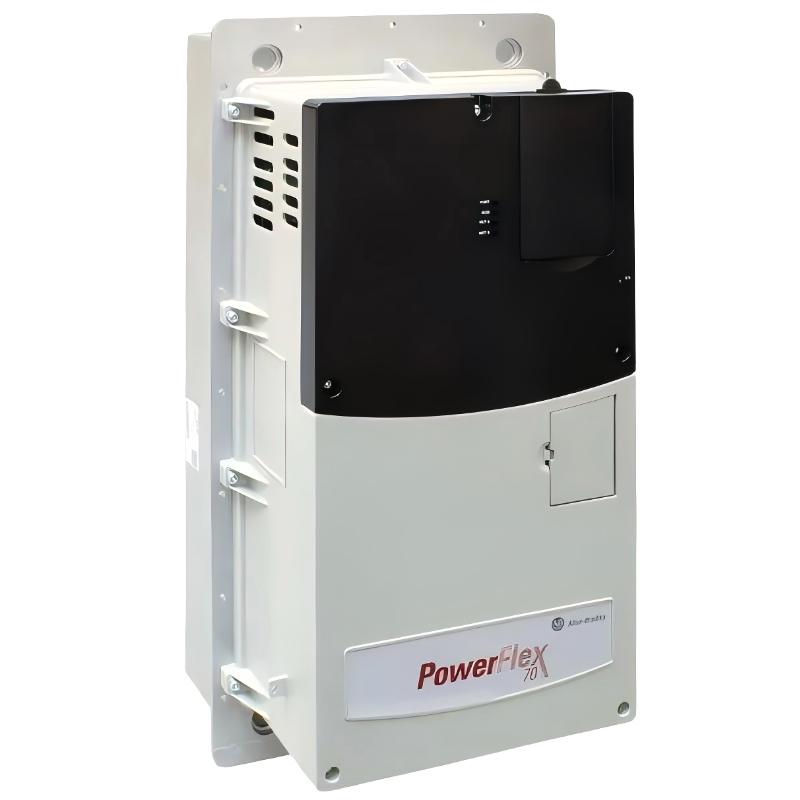

The Allen-Bradley 20AC060A0AYNANC0 is a powerful PowerFlex 70 AC drive module developed for high-demand industrial motor control applications requiring stable torque, precise speed regulation, and long-term operational reliability. Designed within Rockwell Automation’s trusted PowerFlex architecture, this model combines advanced vector control technology with robust overload capability for challenging production environments.
With a 60A output rating and up to 30 kW normal-duty capacity, the drive is engineered to support large-scale conveyor systems, pumps, fans, compressors, and process automation equipment where efficiency and uptime are mission-critical.
Its enhanced control platform, integrated braking functionality, and compact E-frame structure make it a preferred solution for manufacturers seeking dependable variable frequency drive performance with flexible integration capability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Series | PowerFlex 70 |
| Drive Type | Variable Frequency AC Drive |
| Input Voltage | 400V AC, 3-Phase |
| Output Current | 60 A |
| Normal Duty Rating | 30 kW (40 HP) |
| Heavy Duty Rating | 22 kW (30 HP) |
| Control Method | Enhanced Vector Control |
| Enclosure Rating | IP20 / NEMA Type 1 |
| Frame Size | E Frame |
| Brake IGBT | Installed |
| Internal Brake Resistor | Not Included |
| Communication Module | None Installed |
| Frequency Range | 0–400 Hz |
| Efficiency | Approx. 97.5% |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -40 to 70°C |
| Humidity Range | 5–95% Non-Condensing |
Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | 555.8 × 280.3 × 219.8 mm (21.88 × 11.03 × 8.65 in) |
| Weight | 18.6 kg (approx. 41 lbs) |
The drive’s industrial-grade enclosure and optimized thermal design allow stable operation in continuous-duty automation systems while simplifying cabinet installation and maintenance procedures.
Compatible and Recommended Related Models
The following Allen-Bradley products are frequently paired with or considered alternatives to the 20AC060A0AYNANC0:
- 20AC043A0AYNANC0 – Lower current version for medium-load systems
- 20AC072A0AYNANC0 – Higher output configuration for demanding motor applications
- PowerFlex 753 Series Drives – Advanced migration option with expanded diagnostics
- 20-HIM-A6 Human Interface Module – Local programming and monitoring accessory
- PowerFlex EtherNet/IP Communication Modules – Industrial network expansion solutions
These options support scalable deployment from standalone motor control systems to plant-wide automation architectures.
