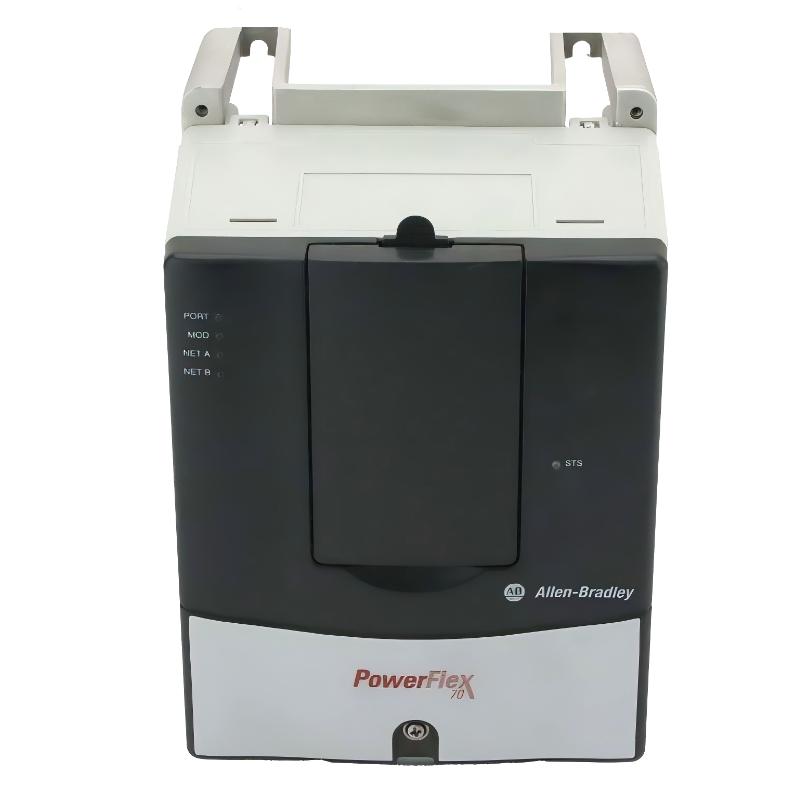

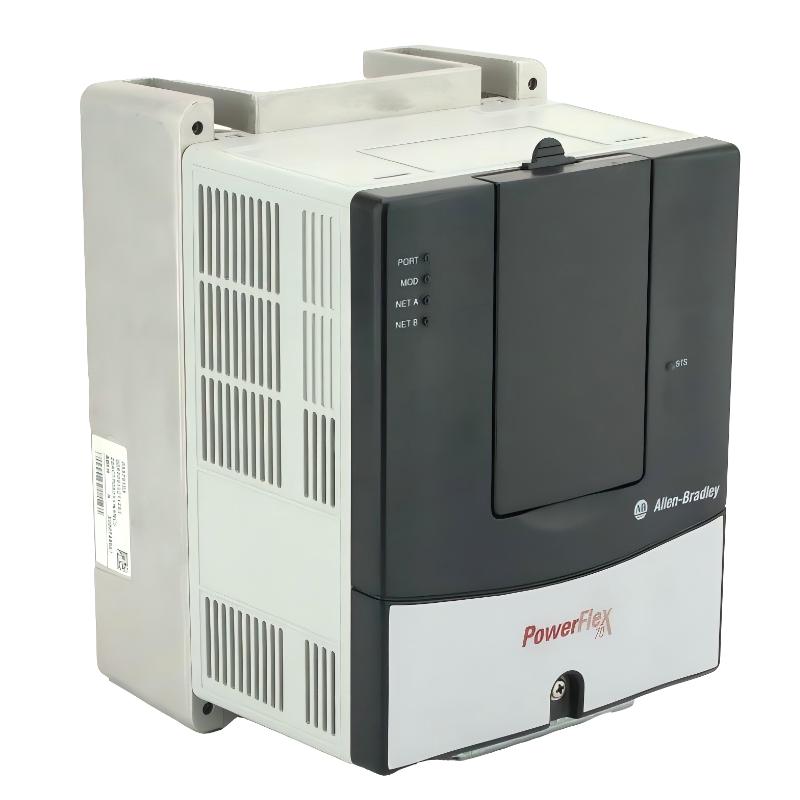

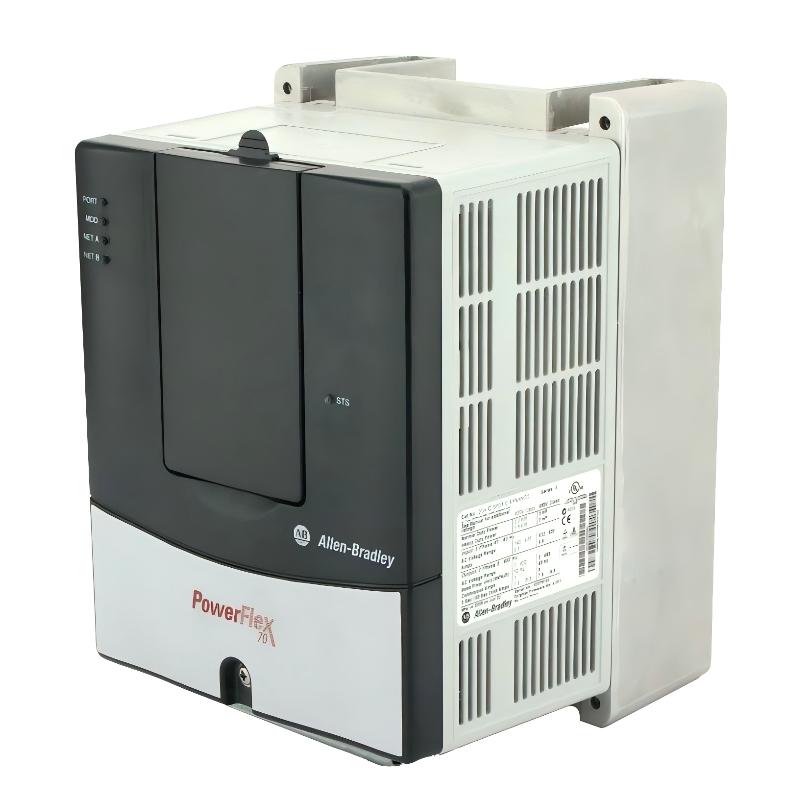

The Allen-Bradley 20AC5P0A0AYNANC0 is a high-efficiency PowerFlex 70 AC drive module designed for precise motor speed control in compact industrial automation systems. Manufactured by Rockwell Automation, this drive combines advanced vector control technology with reliable overload capability, delivering smooth motor operation across a broad range of applications.
With its 5A output current and 2.2 kW normal-duty rating, the unit is ideal for light-to-medium industrial workloads requiring dependable acceleration control, stable torque output, and optimized energy consumption. Its integrated EMC filtering and enhanced control architecture help simplify installation while improving operational reliability in demanding production environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Series | PowerFlex 70 |
| Drive Type | AC Variable Frequency Drive |
| Input Voltage | 380–480V AC, 3-Phase |
| Output Current | 5 A |
| Normal Duty Rating | 2.2 kW |
| Heavy Duty Rating | 1.5 kW |
| Frame Size | Frame B |
| Control Type | Enhanced Control with 24V I/O |
| Enclosure Type | IP20 / NEMA Type 1 |
| Brake IGBT | Installed |
| Internal Brake Resistor | Not Included |
| EMC Filter | Integrated |
| Communication Module | None Installed |
| Output Frequency Range | 0–500 Hz |
| Efficiency | Approx. 97.5% |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -40 to 70°C |
| Humidity Range | 5–95% Non-Condensing |
Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | 234.6 × 171.7 × 179.8 mm (9.24 × 6.76 × 7.08 in) |
| Weight | 3.61 kg (approx. 7.96 lbs) |

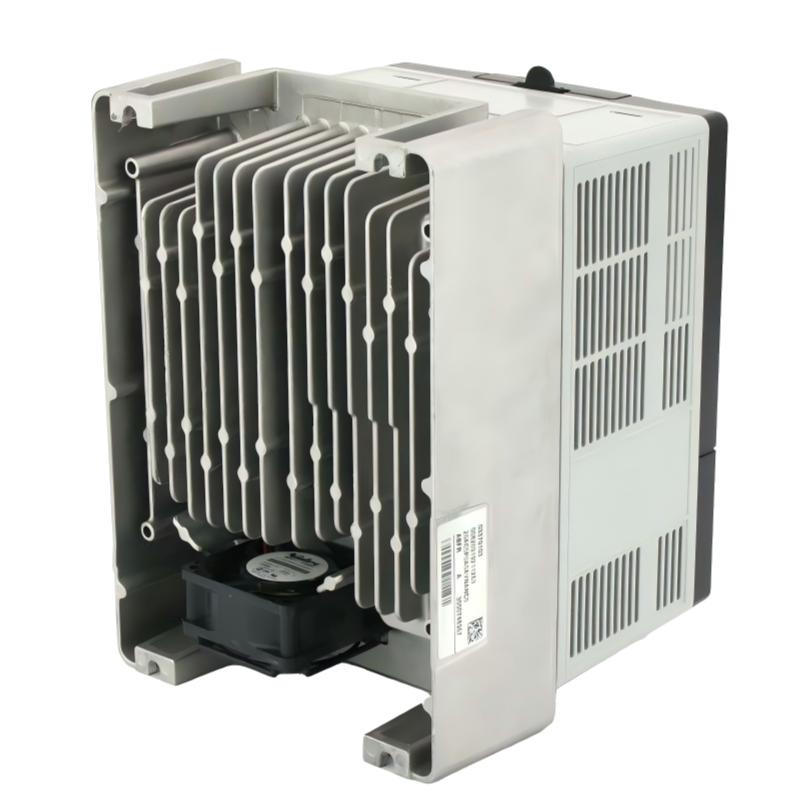

The compact Frame B structure supports efficient cabinet integration while maintaining stable thermal performance during continuous industrial operation.
Recommended Related Models
The following Allen-Bradley models are frequently used alongside or as alternatives to the 20AC5P0A0AYNANC0:
- 20AC1P3A0AYNANC0 – Lower-power compact drive solution
- 20AC011A0AYNANC0 – Higher output version for expanded motor loads
- 20AC037A0AYNANC0 – Medium-duty industrial drive configuration
- PowerFlex 525 Series – Modern compact drive replacement platform
- 20-HIM-A6 HIM Module – Local configuration and diagnostics interface
These related products provide scalable flexibility for both retrofit and new automation projects.
