Brand:Emerson Module Item No.:KL4502X1-LA1 Product Origin:USA Product Dimensions:103 x 32 x 70 mm Product Weight:0.05 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

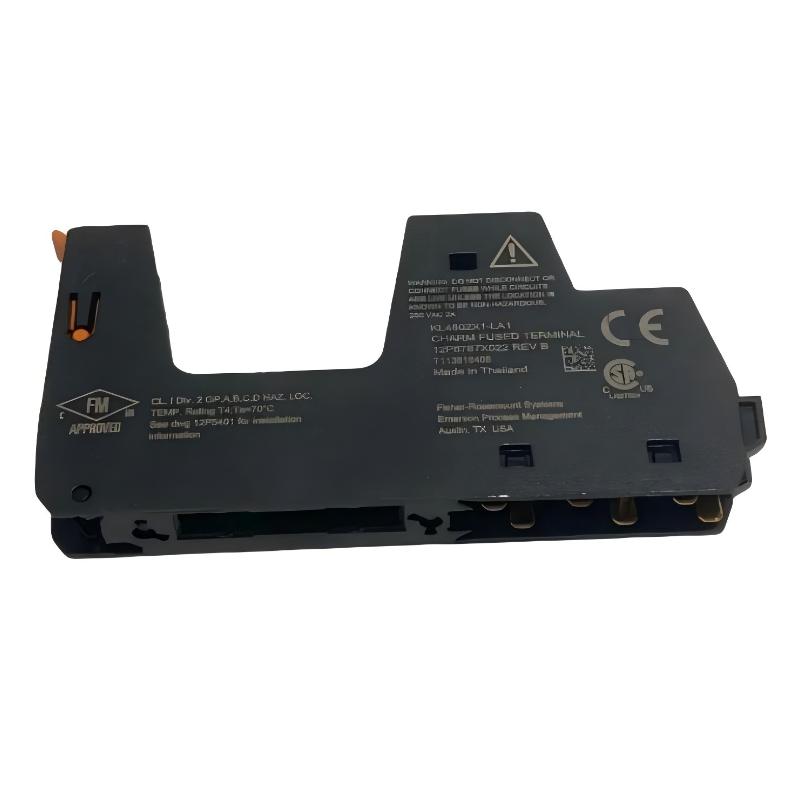

The Emerson KL4502X1-LA1 CHARM Terminal is designed for fused power injection and signal termination within Emerson DeltaV Electronic Marshalling systems. It provides a reliable interface between field wiring and CHARM I/O modules, ensuring stable system configuration and safe signal distribution in industrial automation environments.
Technical Specifications
Parameter
Details
Product Model
Emerson KL4502X1-LA1
Product Type
CHARM Terminal (Fused Injected Power)
Manufacturer
Emerson
System Compatibility
DeltaV CHARM I/O System
Application
Signal Termination / Industrial Automation
Mounting Type
CHARM Baseplate Integration
Construction Type
Industrial Terminal Block
Dimensions
103 × 32 × 70 mm
Weight
0.05 kg
Recommended Related Models
Model Number
Product Name
KL4502X1-DA1
CHARM Address Terminal
KL4501X1-BF1
CHARM Address Plug
KL3002X1-BA1
High-side Discrete Output CHARM
KL3021X1-BA1
Analog Input CHARM
Popular Related Models
Model Number
Product Name
KL3031X1-BA1
RTD Input CHARM
KL3032X1-BA1
Thermocouple Input CHARM
KL3003X1-BA1
Digital Input CHARM
KL4502X1-NA1
Cable Extender Module
Applications
• Emerson DeltaV CHARM-based analog signal termination and field wiring interface systems.
• Industrial distributed control system (DCS) signal marshalling and connection management.
• Power generation plant control cabinet analog input/output signal distribution.
• Gas and steam turbine auxiliary instrumentation wiring and signal routing.
• Petrochemical and refinery process automation terminal interface applications.
• Industrial instrumentation systems requiring CHARM-compatible terminal connection.
• Factory automation control panels for analog field device integration.
• High-reliability process control systems using modular I/O architectures.
Key Advantages
• Ensures stable and reliable analog signal termination within CHARM systems.
• Designed for seamless compatibility with Emerson DeltaV architecture.
• Supports secure and structured field wiring organization.
• Mechanical keying system prevents incorrect module installation.
• Compact design improves control cabinet space efficiency.
• Enhances system reliability in continuous industrial operation.
• Simplifies maintenance and reduces wiring configuration errors.
• Industrial-grade construction ensures long-term durability.
Technical FAQs
1. What is the main function of the KL4502X1-LA1?
The module is a CHARM terminal used for signal termination and wiring interface within Emerson DeltaV electronic marshalling systems.
2. What type of system is it used in?
It is used in Emerson DeltaV CHARM-based distributed control systems.
3. Does it process analog or digital signals?
No. It is a terminal interface component that supports signal connection rather than processing.
4. What is the purpose of the CHARM terminal?
It provides a secure interface between field wiring and CHARM I/O modules.
5. Is it used in hazardous areas?
Yes. It is designed for industrial environments and may support Zone 2-rated applications depending on configuration.
6. Can it be installed in DeltaV systems easily?
Yes. It is designed for straightforward integration within CHARM architecture.
7. Does it support hot-swap functionality?
Yes. CHARM systems are designed for modular insertion and removal under defined safety conditions.
8. What ensures correct module matching?
A built-in keying system prevents incorrect CHARM installation.
9. What industries use this product?
Power generation, oil & gas, petrochemical, and industrial automation industries.
10. Is maintenance required?
No routine maintenance is required under normal operating conditions.
