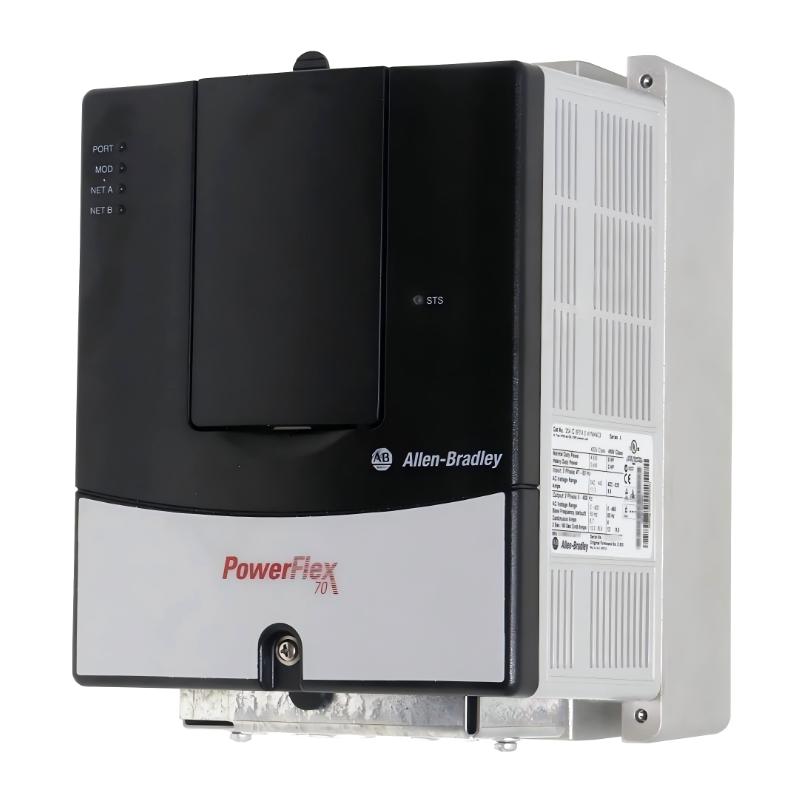

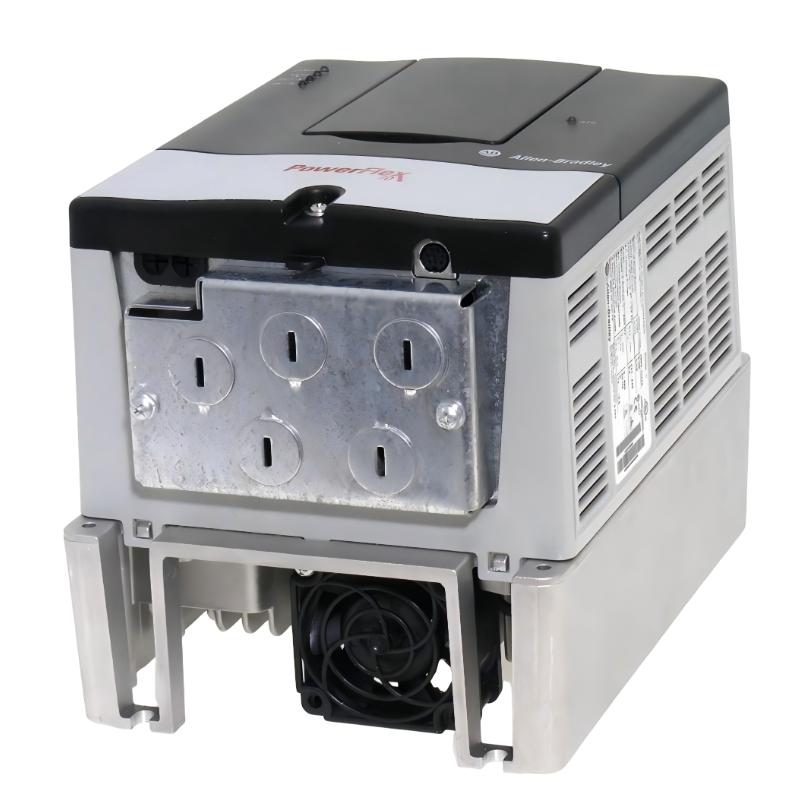

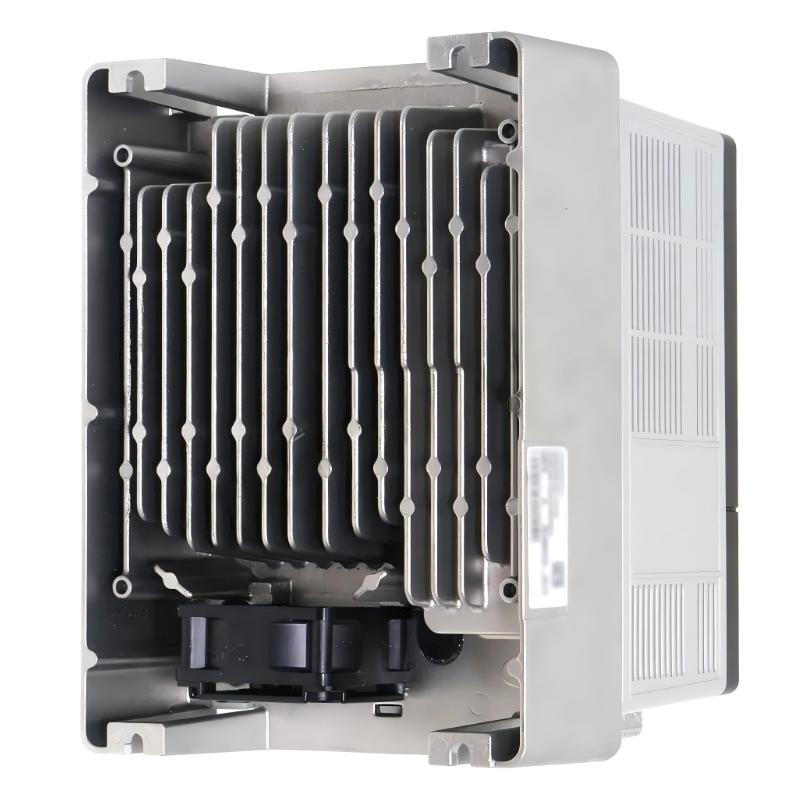

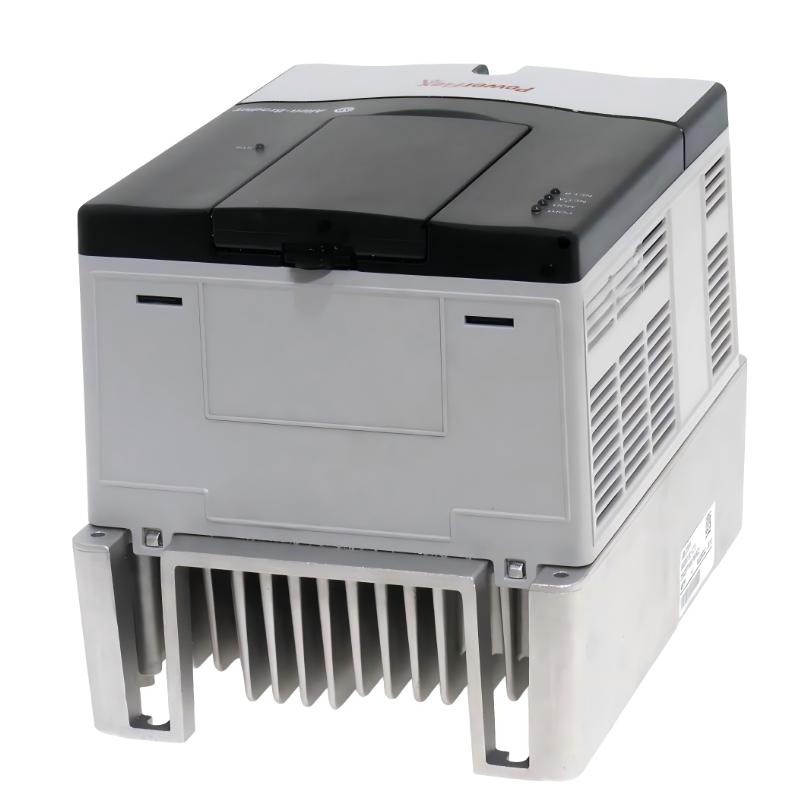

The Allen-Bradley 20AC8P7A0AYNANC0 is a high-performance PowerFlex 70 AC drive module designed to deliver efficient and precise motor control across a wide range of industrial automation systems. Developed by Rockwell Automation, this compact variable frequency drive combines advanced vector control technology with dependable overload capability, making it ideal for applications requiring stable speed regulation, optimized torque performance, and long-term operational reliability.
With an 8.7A output rating and 4 kW normal-duty capacity, the drive is engineered for medium-duty industrial processes where energy efficiency, smooth acceleration, and reduced downtime are essential. Its integrated EMC filtering and enhanced control platform further simplify installation while improving system-level electrical performance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Series | PowerFlex 70 |
| Drive Type | AC Variable Frequency Drive |
| Input Voltage | 380–480V AC, 3-Phase |
| Output Current | 8.7 A |
| Normal Duty Rating | 4 kW (5 HP) |
| Heavy Duty Rating | 3 kW |
| Frame Size | Frame B |
| Control Type | Enhanced Control with 24V I/O |
| Enclosure Rating | IP20 / NEMA Type 1 |
| Brake IGBT | Installed |
| Internal Brake Resistor | Not Included |
| Communication Module | None Installed |
| EMC Filter | Integrated |
| Output Frequency Range | 0–500 Hz |
| Efficiency | Approx. 97.5% |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -40 to 70°C |
| Humidity Range | 5–95% Non-Condensing |
Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | 239.8 × 171.7 × 203.3 mm (9.44 × 6.76 × 8.00 in) |
| Weight | 3.61 kg (approx. 7.96 lbs) |
Its compact industrial structure allows efficient integration into control cabinets while maintaining strong thermal stability during continuous-duty operation.
Recommended Related Models
The following Allen-Bradley models are frequently used alongside or as alternatives to the 20AC8P7A0AYNANC0:
- 20AC5P0A0AYNANC0 – Lower-output version for smaller motor systems
- 20AC011A0AYNANC0 – Higher-capacity model for expanded industrial loads
- 20AC037A0AYNANC0 – Medium-duty PowerFlex 70 drive solution
- PowerFlex 525 Series – Compact next-generation replacement platform
- 20-HIM-A6 Operator Interface Module – Local configuration and diagnostics accessory
These related products support scalable deployment for both retrofit projects and new automation installations.
