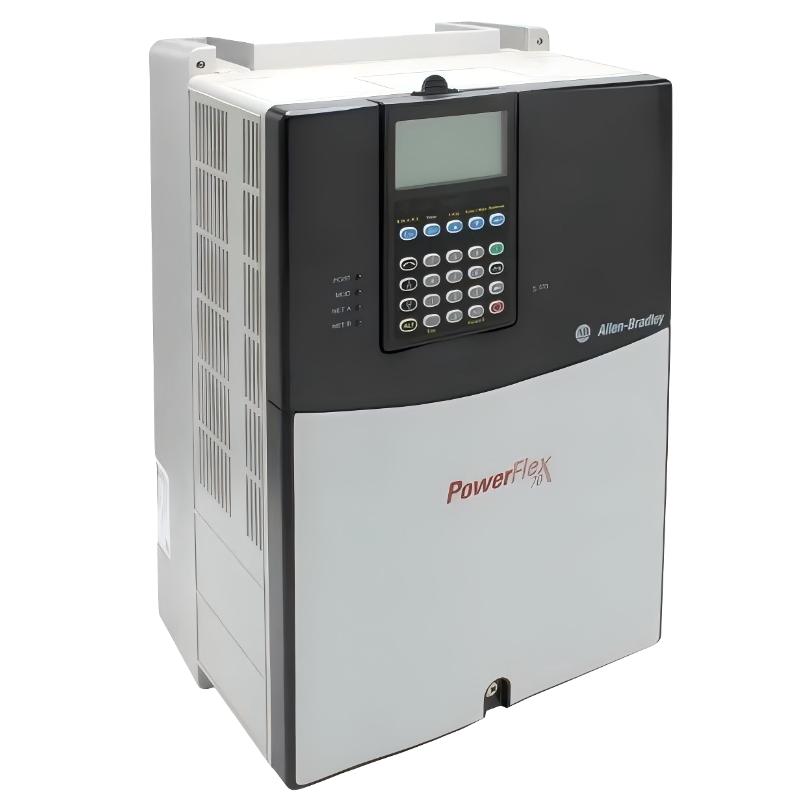

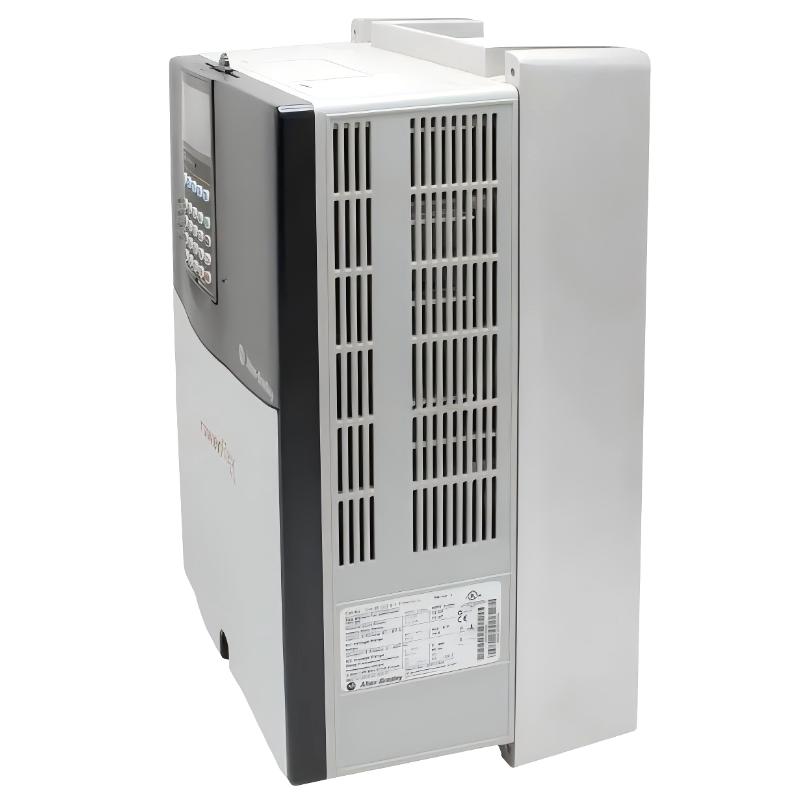

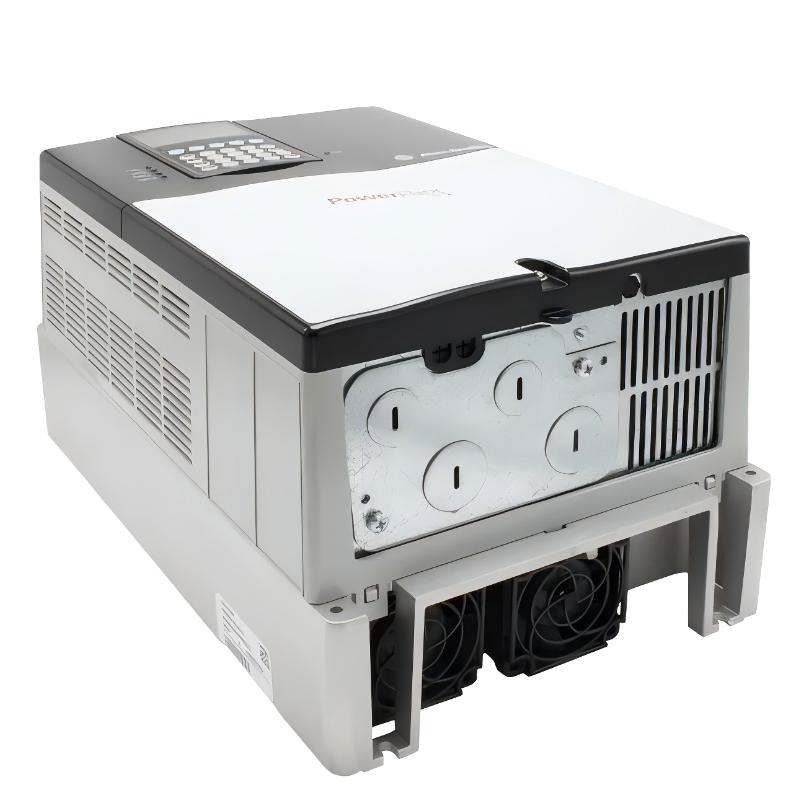

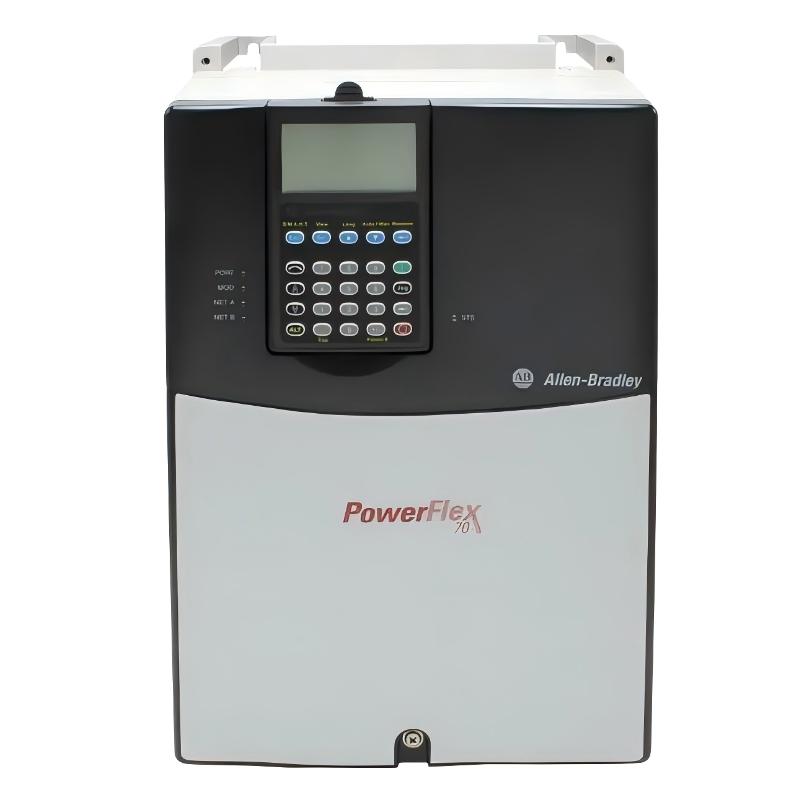

The Allen-Bradley 20AD022A3AYNANC0 is a versatile PowerFlex 70 AC drive module engineered to provide reliable motor speed control, optimized torque performance, and efficient energy management in industrial automation systems. Designed by Rockwell Automation, this drive combines enhanced vector control technology with a rugged industrial structure, making it ideal for demanding manufacturing and process applications.
Featuring a 22A output current and 15 HP normal-duty rating, the drive delivers stable motor operation across variable-load environments while maintaining excellent control accuracy and operational consistency. Its integrated EMC filtering, LCD keypad interface, and flexible configuration capability make it a trusted solution for modern industrial facilities focused on productivity and long-term reliability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Series | PowerFlex 70 |
| Drive Type | Adjustable Frequency AC Drive |
| Input Voltage | 480V AC, 3-Phase |
| Output Current | 22 A |
| Normal Duty Rating | 11 kW (15 HP) |
| Heavy Duty Rating | 7.5 kW (10 HP) |
| Frame Size | D Frame |
| Control Type | Enhanced Control with 24V I/O |
| Enclosure Type | Panel Mount – IP20 / NEMA Type 1 |
| Interface Module | Full Numeric LCD Keypad |
| Brake IGBT | Installed |
| Internal Brake Resistor | Not Included |
| Communication Module | None Installed |
| EMC Filter | Integrated |
| Output Frequency Range | 0–400 Hz |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -40 to 70°C |
| Humidity Range | 5–95% Non-Condensing |
Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | 350 × 219.9 × 210.7 mm (13.78 × 8.66 × 8.30 in) |
| Weight | 9.13 kg (approx. 20.1 lbs) |
The compact D-frame configuration simplifies panel installation while supporting efficient airflow and dependable thermal management during continuous industrial operation.
Recommended Related Models
The following Allen-Bradley models are commonly paired with or considered alternatives to the 20AD022A3AYNANC0:
- 20AD011A3AYNANC0 – Lower-capacity drive for compact motor systems
- 20AD034A3AYNANC0 – Higher-output version for heavier industrial loads
- 20AC037A0AYNANC0 – PowerFlex 70 enhanced-control AC drive solution
- PowerFlex 753 Series Drives – Advanced migration platform with expanded diagnostics
- 20-HIM-A6 HIM Module – Local programming and diagnostics interface
These models provide scalable flexibility for both legacy upgrades and new automation deployments.
