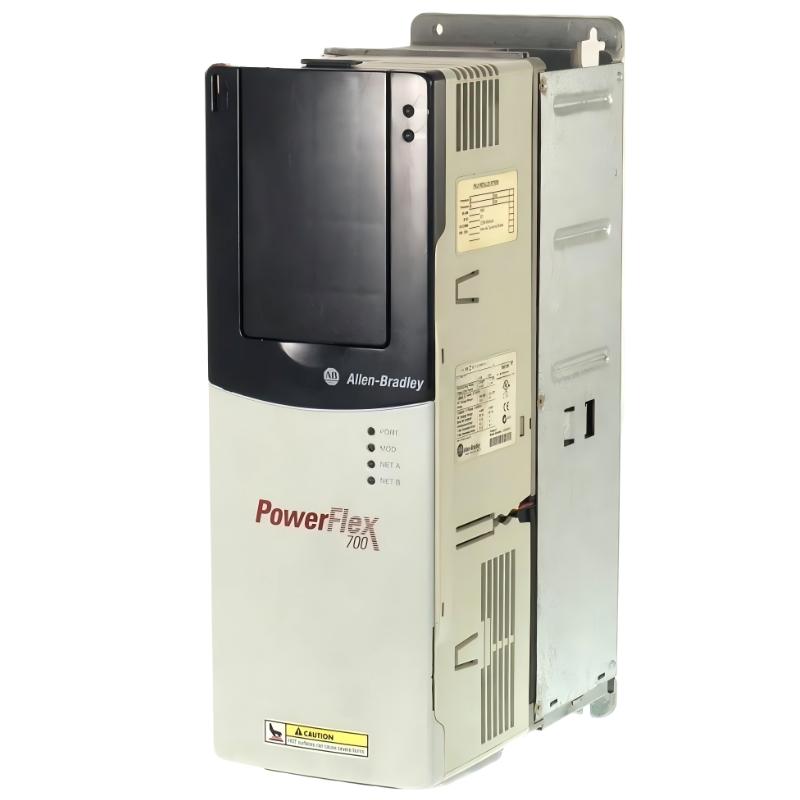

The Allen-Bradley 20BC011A0AYNANC0 is a high-efficiency PowerFlex 700 AC drive module engineered for demanding industrial motor control applications requiring precise speed regulation, dependable torque performance, and long-term operational reliability. Developed by Rockwell Automation, this variable frequency drive combines advanced vector control technology with rugged industrial construction to support stable operation in modern automation systems.
Featuring an 11.5A output current and 5.5 kW normal-duty capacity, the drive is ideal for medium-duty manufacturing processes, conveyor systems, pumps, and industrial handling equipment. Its integrated EMC filtering, built-in Brake IGBT, and compact frame design help simplify installation while improving system performance and operational consistency.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Series | PowerFlex 700 |
| Drive Type | Adjustable Frequency AC Drive |
| Input Voltage | 380–480V AC, 3-Phase |
| Output Current | 11.5 A |
| Normal Duty Rating | 5.5 kW |
| Heavy Duty Rating | 4 kW |
| Frame Size | Frame 0 |
| Control Type | Vector Control with 24V I/O |
| Enclosure Type | IP20 / NEMA Type 1 |
| Brake IGBT | Installed |
| Internal Brake Resistor | Not Included |
| EMC Filter | Integrated |
| Communication Module | None Installed |
| Feedback Option | No Feedback |
| Output Frequency Range | Up to 420 Hz |
| Efficiency | Approx. 97.5% |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -40 to 70°C |
| Humidity Range | 5–95% Non-Condensing |

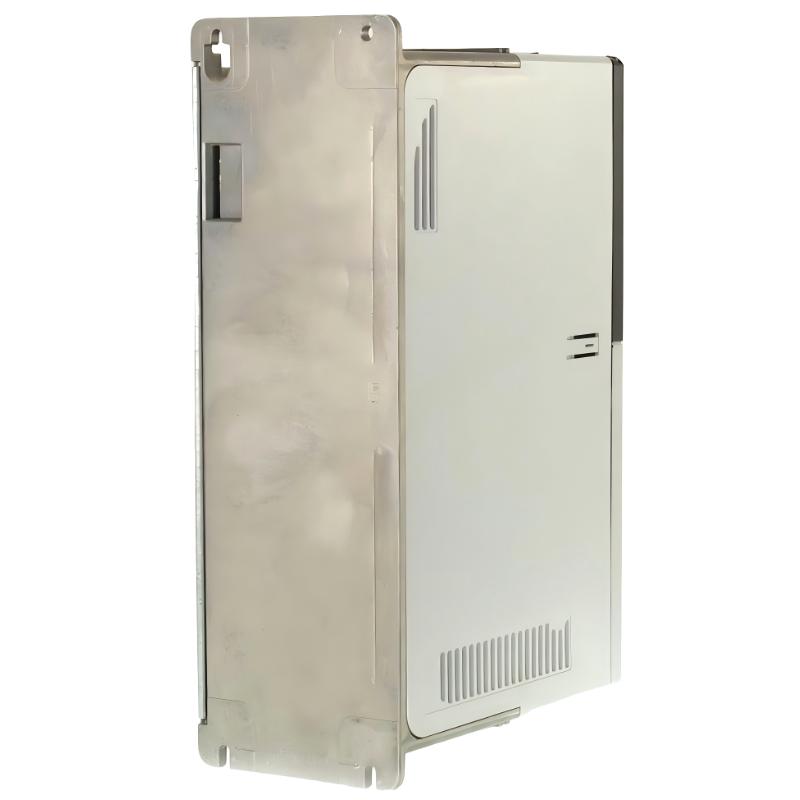

Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | 336 × 110 × 200 mm (13.23 × 4.33 × 7.87 in) |
| Weight | 5.22 kg (approx. 11.5 lbs) |
Its compact industrial structure allows efficient cabinet integration while maintaining reliable airflow and thermal performance during continuous-duty operation.
Recommended Related Models
The following Allen-Bradley models are commonly paired with or considered alternatives to the 20BC011A0AYNANC0:
- 20BC022A0AYNANC0 – Higher-capacity PowerFlex 700 drive solution
- 20AC011A0AYNANC0 – Compact PowerFlex 70 alternative
- 20BD014A0AYNANC0 – PowerFlex 700 medium-duty configuration
- PowerFlex 753 Series – Advanced-generation migration platform
- 20-HIM-A6 HIM Module – Local programming and diagnostics interface
These compatible solutions provide scalable flexibility for both retrofit projects and new industrial automation installations.
