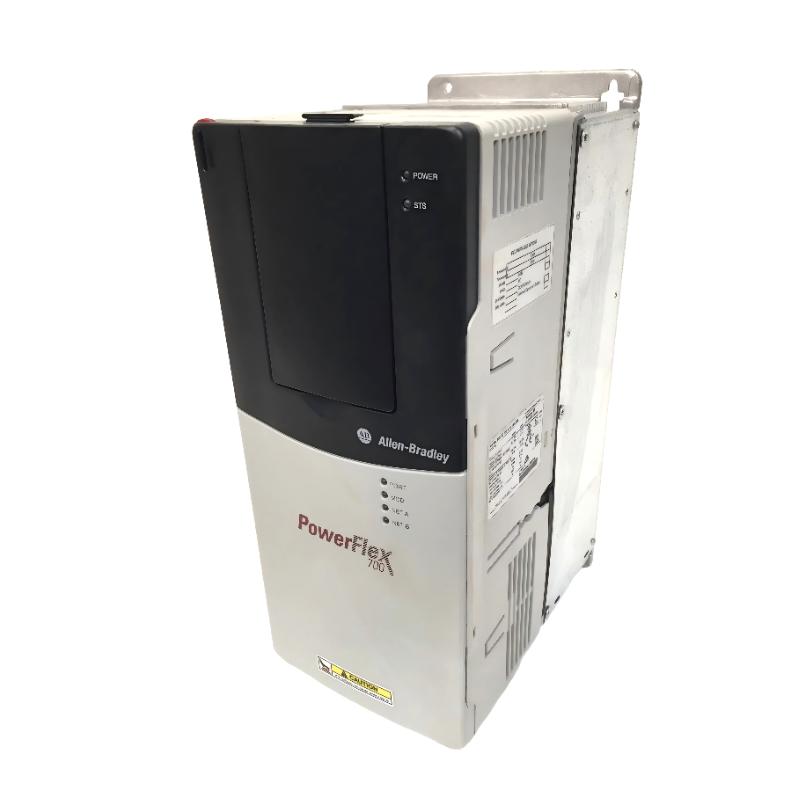

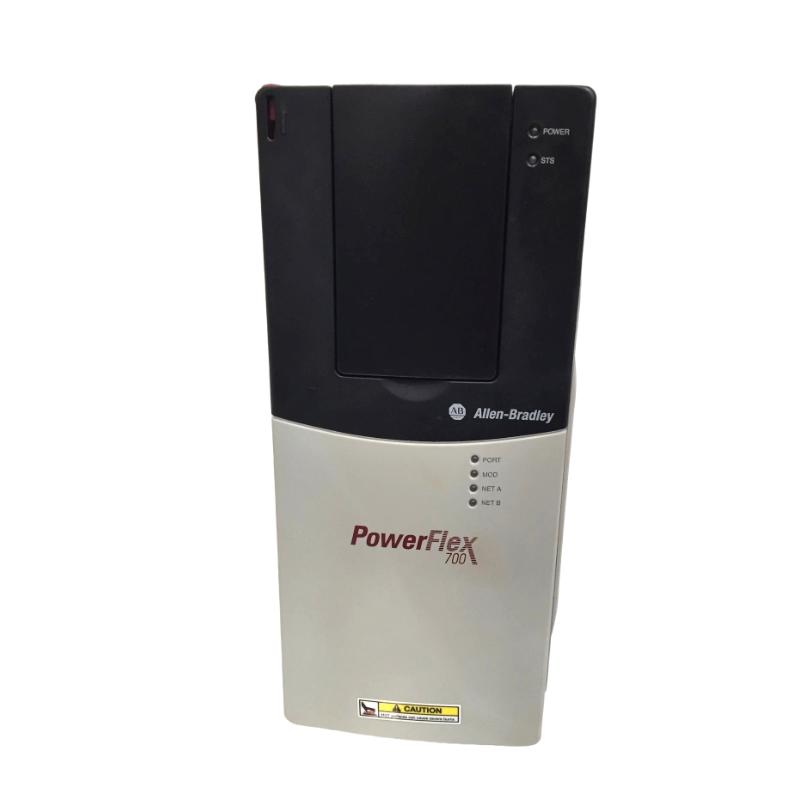

The Allen-Bradley 20BC022A0AYNANC0 is a robust PowerFlex 700 AC drive module designed for high-performance industrial motor control applications. Engineered by Rockwell Automation, it delivers stable torque output, accurate speed regulation, and dependable operation in demanding automation environments such as manufacturing, material handling, and process control systems.
With a 22A output current and 11 kW normal-duty rating, this drive is widely used in medium-power applications requiring consistent motor behavior and efficient energy usage. Its advanced vector control architecture ensures smooth acceleration and deceleration, even under variable load conditions, making it a dependable solution for continuous industrial operation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Series | PowerFlex 700 |
| Drive Type | AC Variable Frequency Drive |
| Input Voltage | 380–480V AC, 3-Phase |
| Output Current | 22 A |
| Normal Duty Power | 11 kW |
| Heavy Duty Power | 7.5 kW |
| Frame Size | Frame 1 |
| Control Type | Vector Control with 24V I/O |
| Enclosure Type | IP20 / NEMA Type 1 |
| Brake IGBT | Installed |
| Internal Brake Resistor | Not Included |
| Communication Module | Not Installed |
| EMC Filter | Included (2nd environment compliant) |
| Max Output Frequency | Up to 420 Hz |
| Efficiency | ~97.5% |
| Operating Temperature | 0 to 50°C |
| Humidity | 5–95% non-condensing |
Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | 336 × 234 × 200 mm (13.23 × 9.21 × 7.87 in) |
| Weight | 8.09 kg (approx. 17.8 lbs) |
The Frame 1 structure provides a balanced combination of compact installation size and effective heat dissipation, making it suitable for standard industrial control cabinets.
Recommended Related Models
- 20BC011A0AYNANC0 – Lower-power PowerFlex 700 drive (5.5 kW class)
- 20AD022A3AYNANC0 – PowerFlex 70 equivalent alternative platform
- 20BC030A0AYNANC0 – Higher-capacity variant for heavier loads
- PowerFlex 753 Series Drives – Modern upgrade with enhanced diagnostics
- 20-HIM-A6 HIM Module – Operator interface for local control and configuration
These models allow scalable system design from light-duty automation to complex industrial drive networks.
