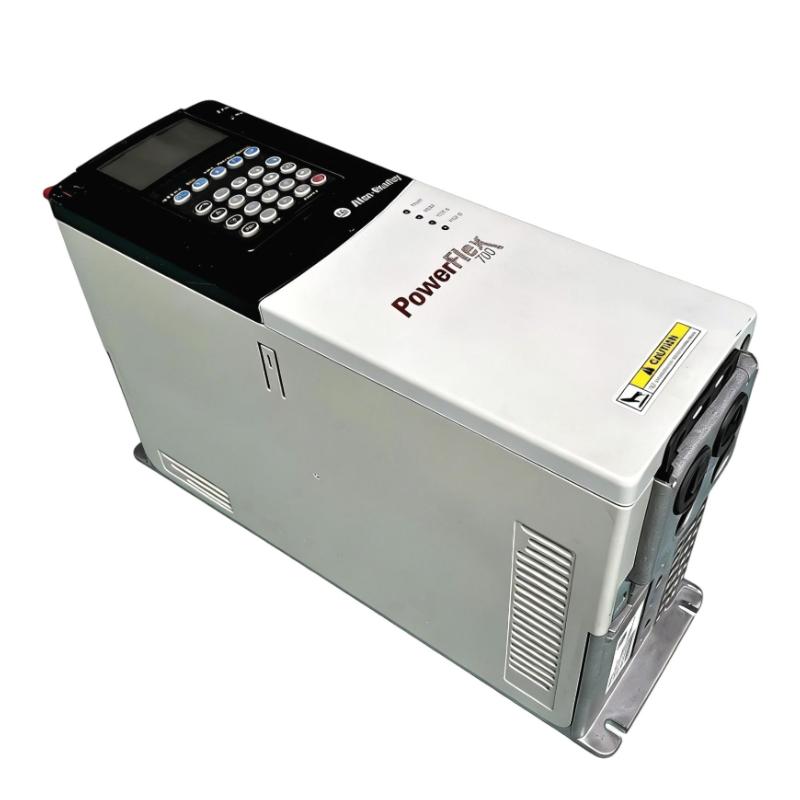

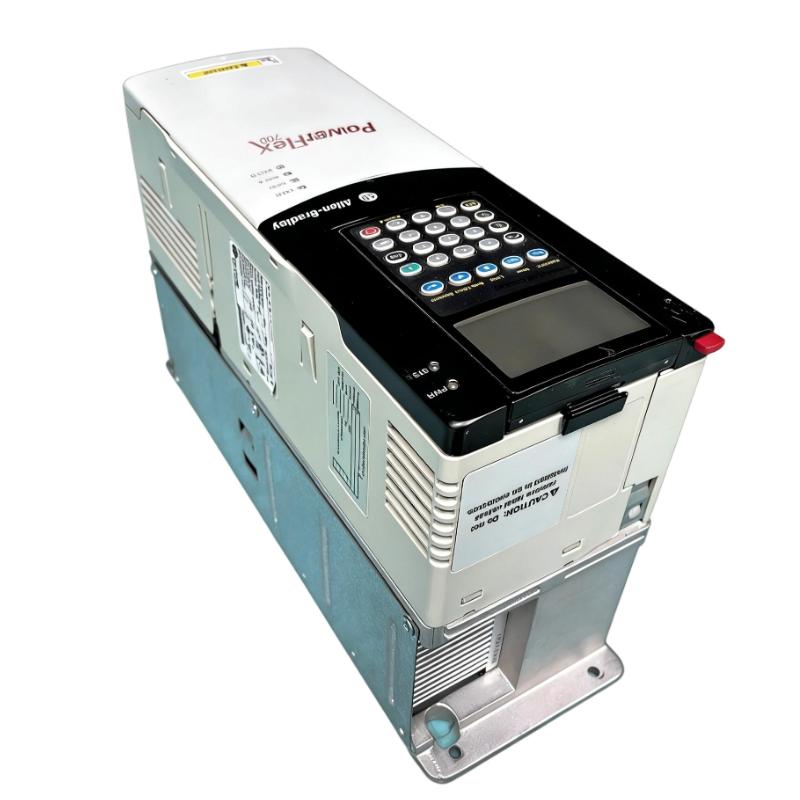

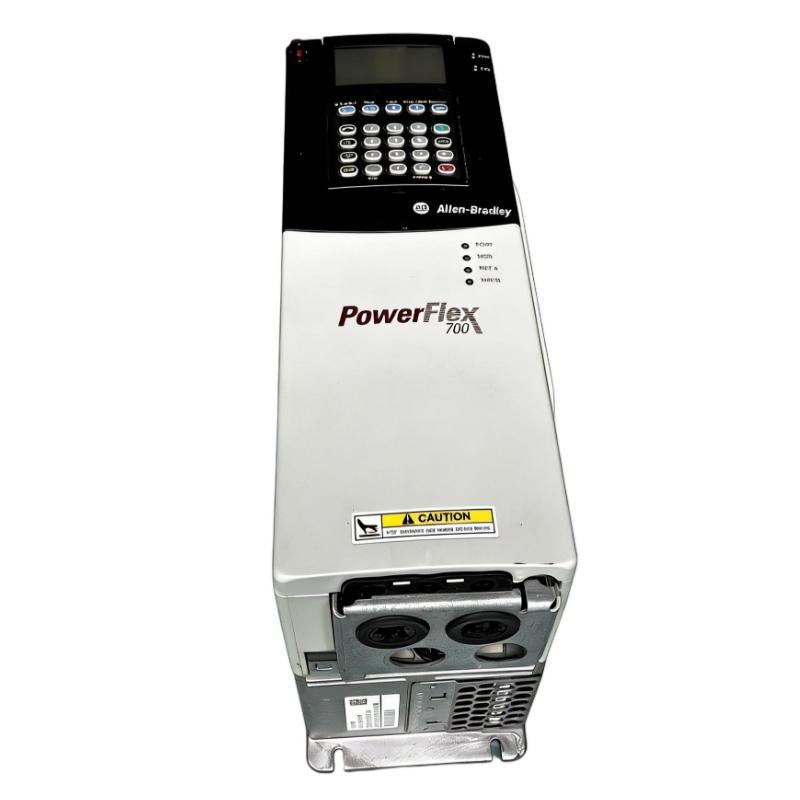

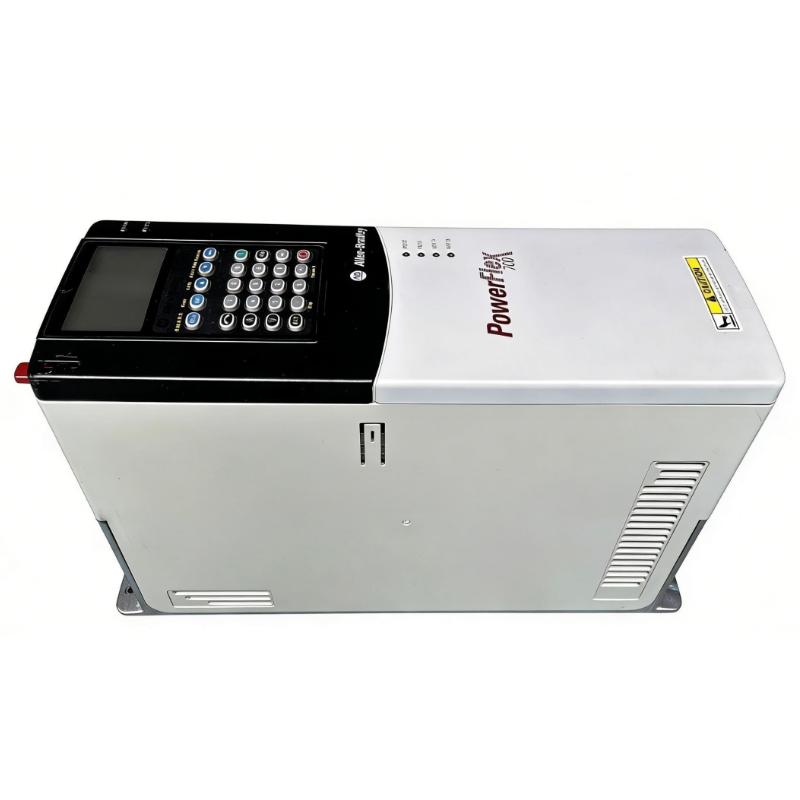

The Allen-Bradley 20BC2P1A3AYNANC0 is a compact PowerFlex 700 AC drive module designed for precise low-power motor control in industrial automation systems. Built by Rockwell Automation, it delivers stable speed regulation, smooth torque output, and reliable performance for small machines and auxiliary industrial equipment where accuracy and efficiency are essential.
With a 2.1A output current and 0.75 kW normal-duty rating, this drive is widely used in light-duty applications such as small conveyors, fans, pumps, and automated machinery. Despite its compact size, it integrates advanced vector control technology, enabling consistent motor behavior and improved energy efficiency in continuous operation environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Series | PowerFlex 700 |
| Drive Type | AC Variable Frequency Drive |
| Input Voltage | 380–480V AC, 3-Phase |
| Output Current | 2.1 A |
| Normal Duty Rating | 0.75 kW |
| Heavy Duty Rating | 0.55 kW |
| Frame Size | Frame 0 |
| Control Type | Vector Control with 24V I/O |
| Enclosure Type | IP20 / NEMA Type 1 |
| Brake IGBT | Installed |
| Internal Brake Resistor | Not Included |
| Communication Module | Not Installed |
| EMC Filter | Integrated (2nd environment compliant) |
| Output Frequency Range | Up to 420 Hz |
| Efficiency | ~97.5% |
| Operating Temperature | 0 to 50°C |
| Humidity Range | 5–95% non-condensing |
Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | 336 × 110 × 200 mm (13.23 × 4.33 × 7.87 in) |
| Weight | 8.16 kg (approx. 18 lbs) |
The Frame 0 structure is designed for compact cabinet installation while maintaining stable thermal performance and reliable airflow under continuous operation.
Recommended Related Models
- 20BC011A0AYNANC0 – Higher power PowerFlex 700 variant for light-to-medium loads
- 20AC1P3A0AYNANC0 – Compact PowerFlex 70 alternative for modern installations
- 20BC022A0AYNANC0 – Mid-range PowerFlex 700 drive for general industrial use
- PowerFlex 525 Series – Modern compact replacement platform
- 20-HIM-A6 HIM Module – Local programming and diagnostics interface
These options provide scalable solutions from small automation systems to full industrial production lines.
