Applications

• High-speed pulse counting for Allen-Bradley PLC-5 automation systems.

• Industrial production line speed monitoring and encoder signal acquisition.

• Packaging, bottling, and conveyor systems requiring precise pulse measurement.

• Power generation auxiliary systems for turbine speed and rotation monitoring.

• Gas and steam turbine control systems for high-frequency signal detection.

• Petrochemical and refinery process automation requiring fast event counting.

• Industrial machinery position tracking using incremental encoder feedback.

• High-speed motion and synchronization control in manufacturing systems.

Key Advantages

• Ultra-high-speed counting capability for precise signal capture.

• Supports accurate measurement of fast encoder and pulse signals.

• Designed for reliable integration with PLC-5 architecture.

• High noise immunity ensures stable operation in industrial environments.

• Improves machine timing accuracy and process synchronization.

• Supports demanding high-frequency industrial applications.

• Industrial-grade design ensures long-term operational reliability.

• Reduces signal loss in high-speed counting applications.

Technical FAQs

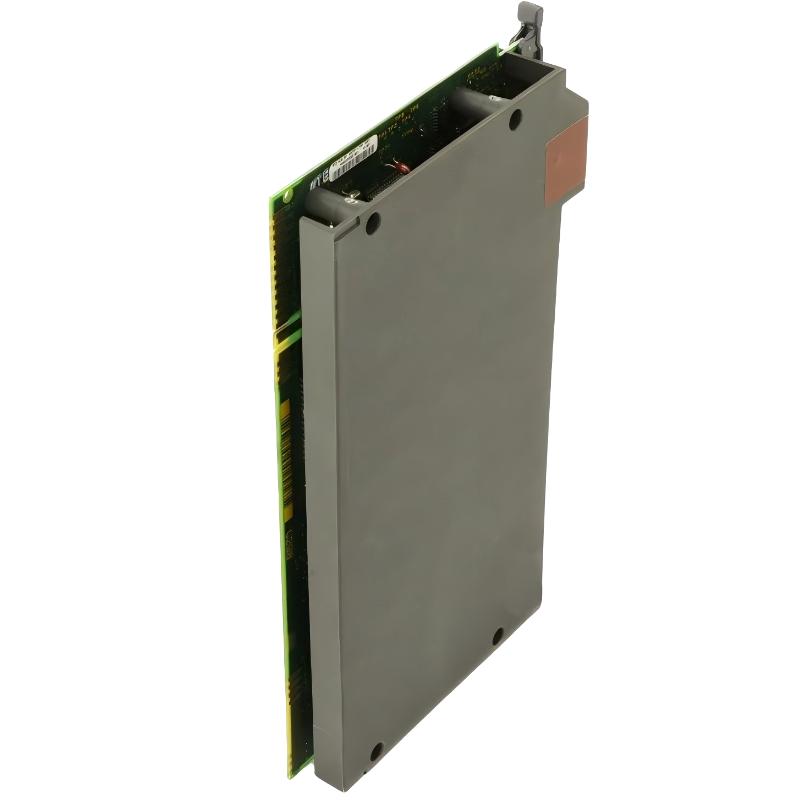

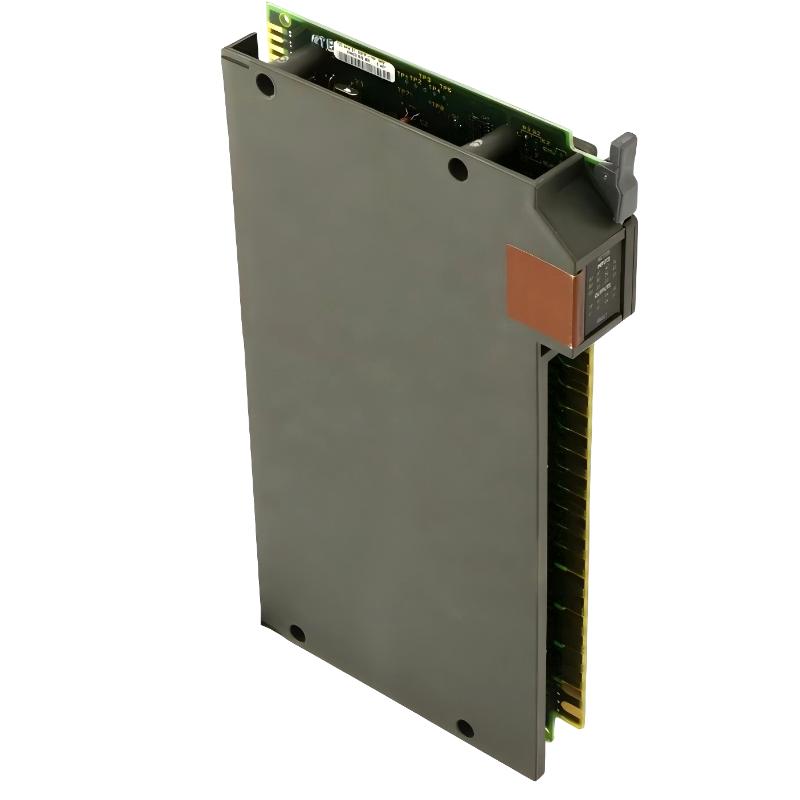

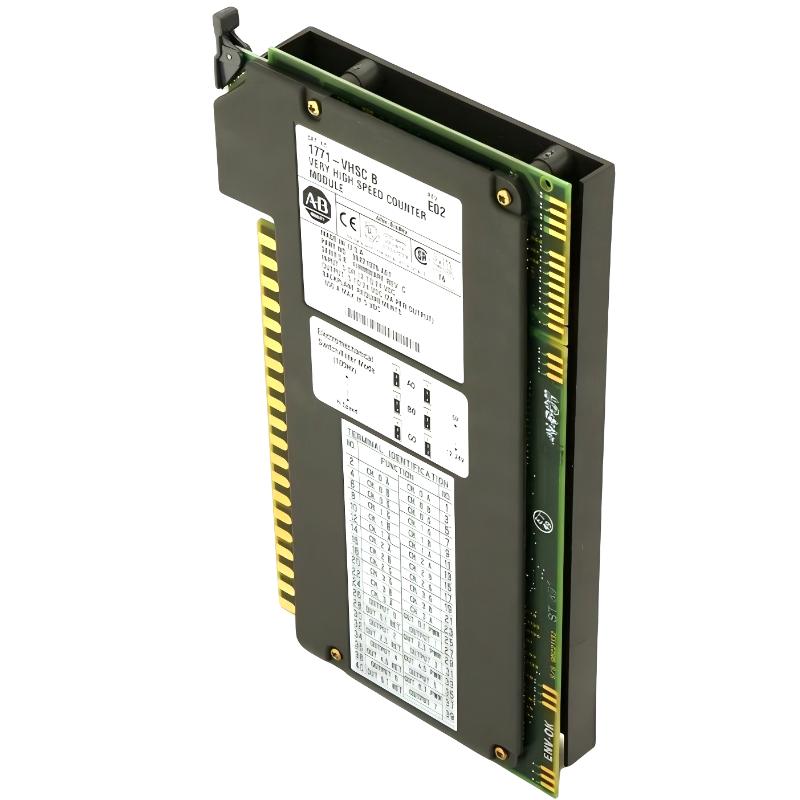

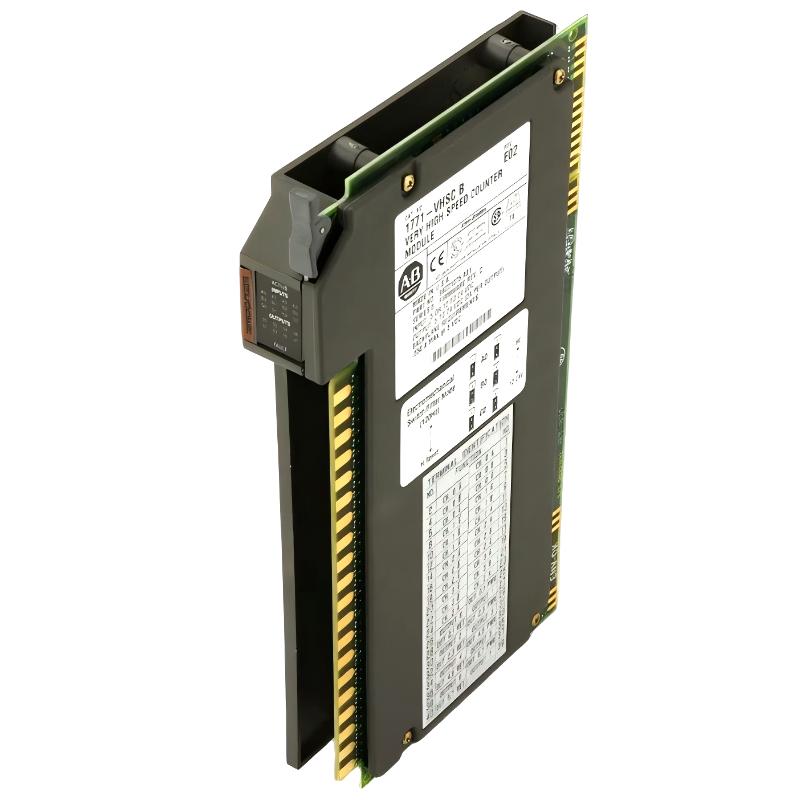

1. What is the main function of the 1771-VHSC?
It is an ultra-high speed counter module used to count fast pulse signals in PLC-5 systems.

2. What type of signals does it handle?
It handles high-frequency pulse signals from encoders and industrial sensors.

3. Which system is it used with?
It is designed for Allen-Bradley PLC-5 series control systems.

4. Where is it commonly used?
It is used in packaging, manufacturing, power generation, and process automation systems.

5. Can it measure rotational speed?
Yes. It is commonly used with encoders to measure speed and position.

6. Is it suitable for high-speed machinery?
Yes. It is specifically designed for high-speed industrial applications.

7. Does it improve system accuracy?
Yes. It provides precise and reliable pulse counting performance.

8. Can it be used in turbine systems?
Yes. It is often used for speed monitoring and auxiliary measurement.

9. Is it resistant to electrical noise?
Yes. It is designed for industrial environments with strong noise immunity.

10. Is it still used in modern systems?
It is mainly used in PLC-5 legacy systems and retrofit applications.
